Product Details

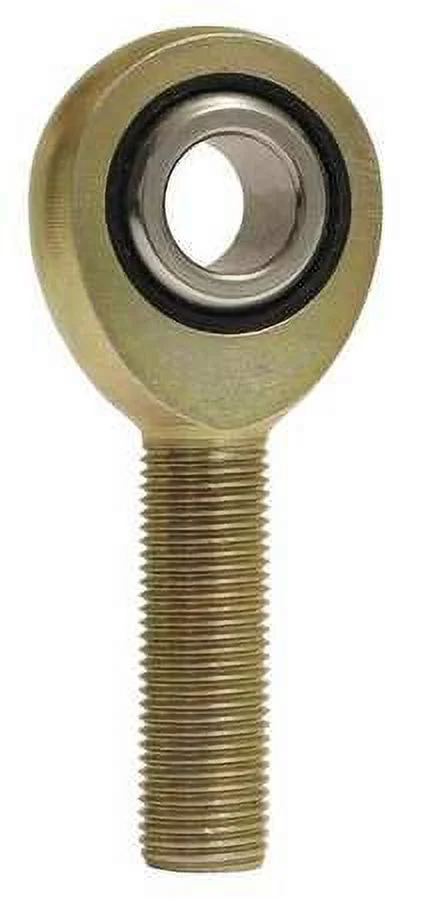

The QA1 NMR4 is an injection-molded carbon steel rod end from the N Series lineup, designed for low load and moderate oscillation applications in suspension linkages, steering systems, and custom fabrication projects. This economical yet durable rod end features a 1/4 inch bore with 1/4-28 right-hand male threads.

Key Features:

  • Three-piece construction with 52100 bearing steel ball, heat-treated, precision ground, and hard chrome plated for maximum durability
  • Reinforced Nylon 12 race with self-lubricating PTFE compound provides low friction and high wear resistance
  • Unique injection-molded design requires no drilled holes in the body, maintaining full structural strength and integrity
  • Carbon steel body with protective coating for corrosion resistance
  • 1/4 inch-28 RH male thread with 1 inch thread length
  • 0.250 inch bore diameter, 0.75 inch head diameter, 0.375 inch ball width
  • 16-degree misalignment angle for flexible movement
  • 2,470 lbs static load capacity
  • 1.562 inch centerline length

The QA1 N Series rod end is ideal for custom suspension linkages, steering applications, throttle and clutch linkages, and general fabrication projects where a reliable, self-lubricating rod end is required. Sold individually without jam nut.

Products specifications

A (+/-0.015)

1.562

Approx Bearing Weight

0.04

B (+0.0025/-0.0005)

0.25

Ball Dia Ref

0.5

C (+0.062/-0.031)

1

D (+/-0.010)

0.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

M UNF 3A

10-32

Misalign Angle

16

Notes

Only rod end ball is heat-treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.375 in.

Rod End Centerline Length

1.562 in.

Rod End Construction

1-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.250 in.

Rod End Head Diameter

0.750 in.

Rod End Head Width

0.375 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

16 degrees

Rod End Static Load Capacity

2,470 lbs.

Rod End Style

Nylon lined

Rod End Thread Size

1/4-28 RH in.

T (+/-0.005)

0.281

Thread Length

1.000 in.

Thread Type

Right Hand

Thread UNF-3A

1/4 -28

UTL Radical Static

2,470

W (+/-0.005)

0.375

Title

QA1 Suspension Rod End Bearing NMR4
