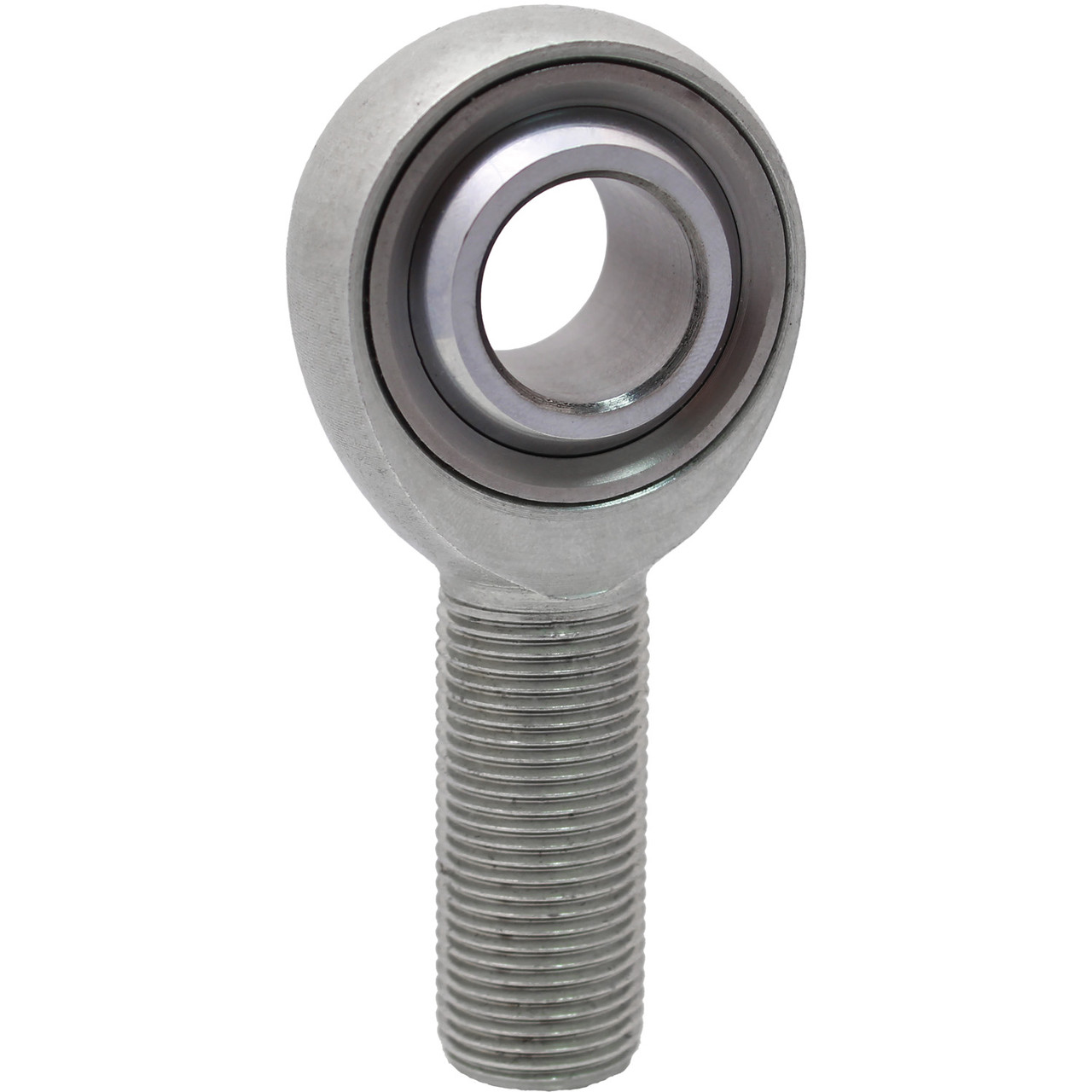

QA1 KMR32Z K Series 3-Piece Carbon Steel Rod End 2" Bore 2-12 UNF Male RH Thread

The QA1 KMR32Z is a heavy-duty 3-piece carbon steel rod end from QA1's renowned K Series line, engineered for precision and durability in demanding automotive, racing, and industrial applications. This large-bore spherical rod end bearing delivers exceptional strength and articulation for suspension linkages, control arms, tie rods, and other critical steering and suspension components.

Key Specifications:

• 2-inch bore diameter for maximum load capacity
• 2-12 UNF right-hand male thread
• 1-1/2 inch housing width
• 1-3/4 inch ball width
• 3-piece construction with steel ball, race, and body
• Dual seal enclosure for contamination protection

Premium Construction Features:

• Ball: 52100 bearing steel, heat-treated, precision-ground, and hard chrome plated with MOS coating for superior wear resistance
• Race: Alloy steel construction with corrosion and wear-resistant finish
• Body: Carbon steel with protective coating for corrosion resistance
• Relubricatable design with integrated grease fitting for extended service life
• Spherical plain bearing design allows multi-axis articulation

The KMR32Z represents QA1's commitment to precision manufacturing, featuring tight tolerances and quality materials that deliver reliable performance in high-load applications. The 3-piece design provides superior strength compared to 2-piece alternatives, making it ideal for heavy-duty suspension systems, industrial machinery, and motorsports applications where failure is not an option.
