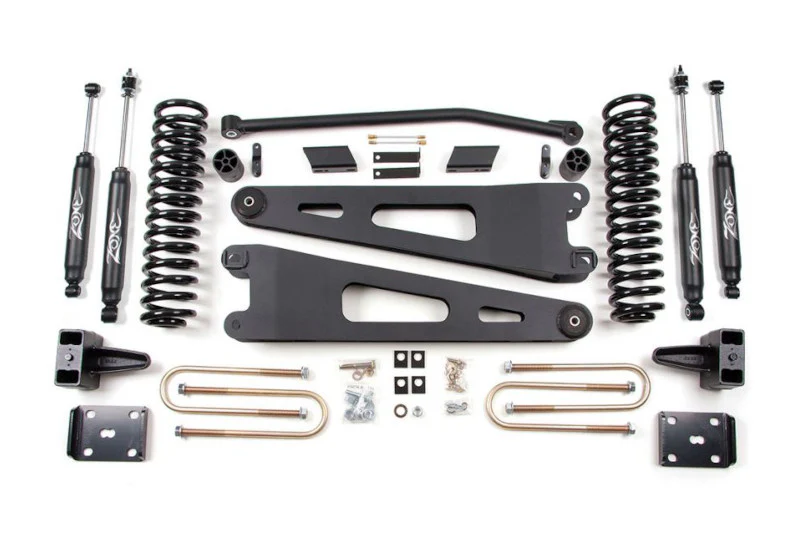

The Zone Offroad F27F is a complete 4-inch radius arm front and rear suspension lift kit engineered for Ford F250 and F350 Super Duty 4WD trucks. Designed to dramatically improve ground clearance and off-road capability while maintaining on-road ride quality, this system replaces critical factory suspension components with heavy-duty, purpose-built hardware.
At the core of this kit are fully boxed 1/4-inch steel radius arms featuring large 2-1/2-inch greasable urethane bushings. These replacement arms bolt directly into the stock frame location, correcting caster alignment and properly positioning the front axle for the added lift height. The lower mount at the axle uses a cam lock design, providing adjustability for precise alignment.
Engine-specific front coil springs are included and engineered to support the weight of the Super Duty without sagging over time, delivering excellent ride quality both on and off road. A 1-1/2-inch solid steel track bar with oversized high-durometer urethane bushings re-centers the front axle after lifting for predictable, responsive handling. The rear of the truck is lifted using a 5-inch rear block kit that replaces the factory block—eliminating the need to stack blocks for a safer, more reliable setup.
Key Features:
- 4-inch front lift via engine-specific replacement coil springs
- Fully boxed 1/4-inch steel radius arms with 2-1/2-inch greasable urethane bushings
- Cam lock lower axle mount for adjustable caster correction
- 1-1/2-inch solid steel track bar with high-durometer urethane bushings
- 5-inch rear block kit — replaces factory block, no stacking required
- Yellow zinc-plated front and rear U-bolts with high nuts and hardened washers
- Includes front and rear performance shocks
- Backed by Zone Offroad's limited lifetime warranty and Factory Protection Plus coverage
The Zone Offroad F27F radius arm lift system is one of the most straightforward installations in its class, utilizing a front track bar and rear block configuration to reduce complexity. Whether tackling the trail or hauling on the highway, this kit delivers the strength, geometry correction, and ride quality Super Duty owners demand.
