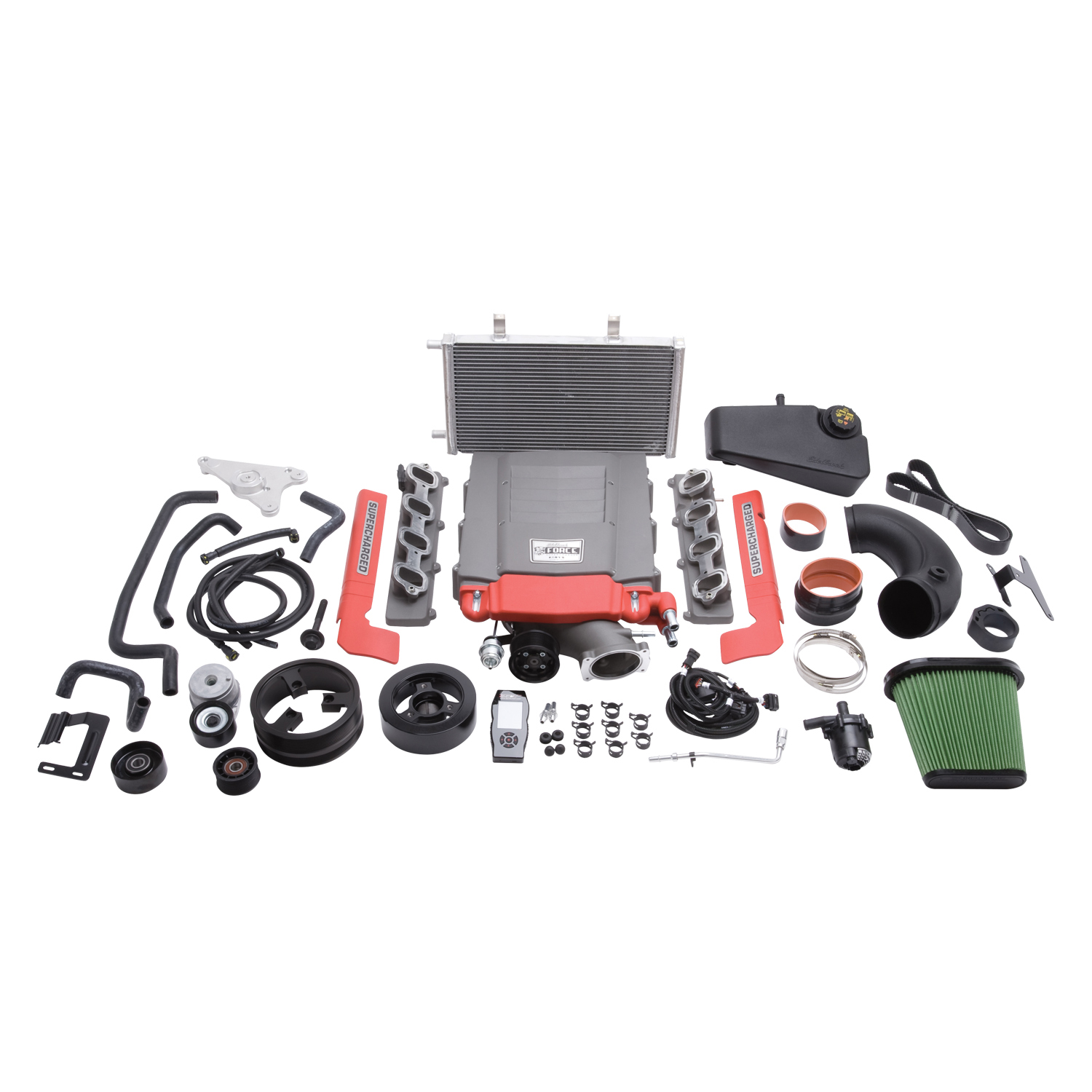

Edelbrock 1570 E-Force Supercharger Kit for 2014-19 Corvette C7 LT1 Z51 Dry Sump Stage 1

(2014-2017 Chevrolet Corvette)

Part of: Edelbrock E-Force Supercharger Kit

Other options in this family: Edelbrock 1583 Edelbrock 15192 Edelbrock 15640 Edelbrock 15664 Edelbrock 1577

Manufacturer

Picture for manufacturer Edelbrock

Part Number

1570
9 reviews
Sale Price

$10,610.09

Estimated ship date Wednesday, November 25

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

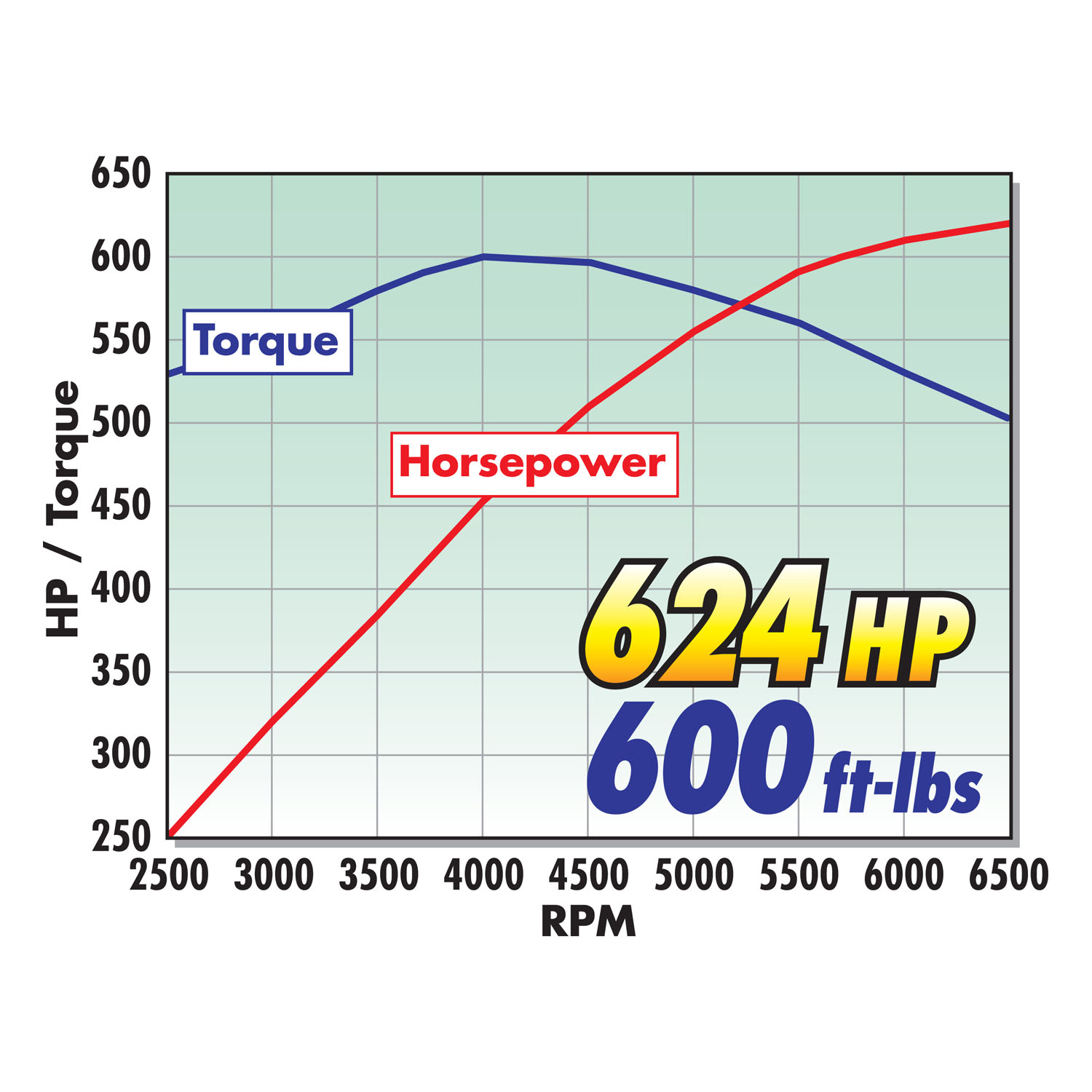

The Edelbrock E-Force Stage 1 Street Supercharger System delivers a massive power upgrade for your 2014-2019 Corvette Stingray Z51, boosting your LT1 engine to an impressive 624 horsepower and 600 ft-lbs of torque at the flywheel. Engineered specifically for Z51 dry sump models, this complete bolt-on system transforms your Corvette's performance while maintaining excellent drivability and street manners.

Eaton Gen VI 2300 TVS Supercharger Technology:

  • Four-lobe rotor design with 160 degrees of twist for maximum airflow efficiency
  • High-volume 2300cc displacement provides instant throttle response
  • Minimizes temperature rise for consistent power delivery
  • Whisper-quiet operation for a refined driving experience
  • Integrated bypass valve eliminates parasitic loss under light throttle for improved fuel economy

Advanced Cooling System:

  • High-capacity air-to-water intercooler maintains optimal intake temperatures
  • Low-temperature heat exchanger ensures consistent performance even under hard driving
  • Efficient thermal management protects engine reliability

Optimized Design Features:

  • Unique inlet configuration eliminates the need for a jack-shaft
  • Shorter, less restrictive intake path maximizes airflow
  • Complete bolt-on installation with all necessary hardware included
  • 50-state emissions legal (CARB compliant)
  • Supplied calibration designed for stock vehicles with optional cat-back exhaust

This Stage 1 system is engineered for maximum performance gains while maintaining reliability and street legality. The included tune is optimized for completely stock vehicles with the exception of a cat-back exhaust system, ensuring safe and reliable operation with pump gas.

Products specifications

Fits

2014-2017 Chevrolet Corvette

RGL

WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Quantity

Kit

Pulley Belt Width

10-Rib

Air Filter Included

Yes

Gasket Or Seal Included

Yes

Rotor Type

Eaton TVS 2300

Center Housing Cooling Type

Intercooler

Calibration

Yes

Oil Capacity

150

Vehicle Model

Corvette

Tensioner Included

Yes

Mounting Hardware Included

Yes

CARB Executive Order Number

D-215-103

Maximum Horsepower

624

Housing Material

Cast aluminum

Outside Pulley Diameter

3.5

Finish

Black Powder Coated

System Type

Stage 1 - Street System

Internal Step Up

Yes

Universal Or Specific Fit

Specific

Hose Included

Yes

Maximum Boost Pressure

5.5

Mounting Bracket Included

Yes

Maximum Pressure Reading

5.5

Maximum Torque

600

Harmonic Balancer Diameter

7.5
