Edelbrock 1583 E-Force Stage 1 Supercharger Kit for 2009-2010 Ford F-150 5.4L 3V

Part of: Edelbrock E-Force Supercharger Kit

Other options in this family: Edelbrock 15192 Edelbrock 15640 Edelbrock 15664 Edelbrock 1577 Edelbrock 15670

Manufacturer

Picture for manufacturer Edelbrock

Part Number

1583
6 reviews
Sale Price

$9,336.36

3 left at this price

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

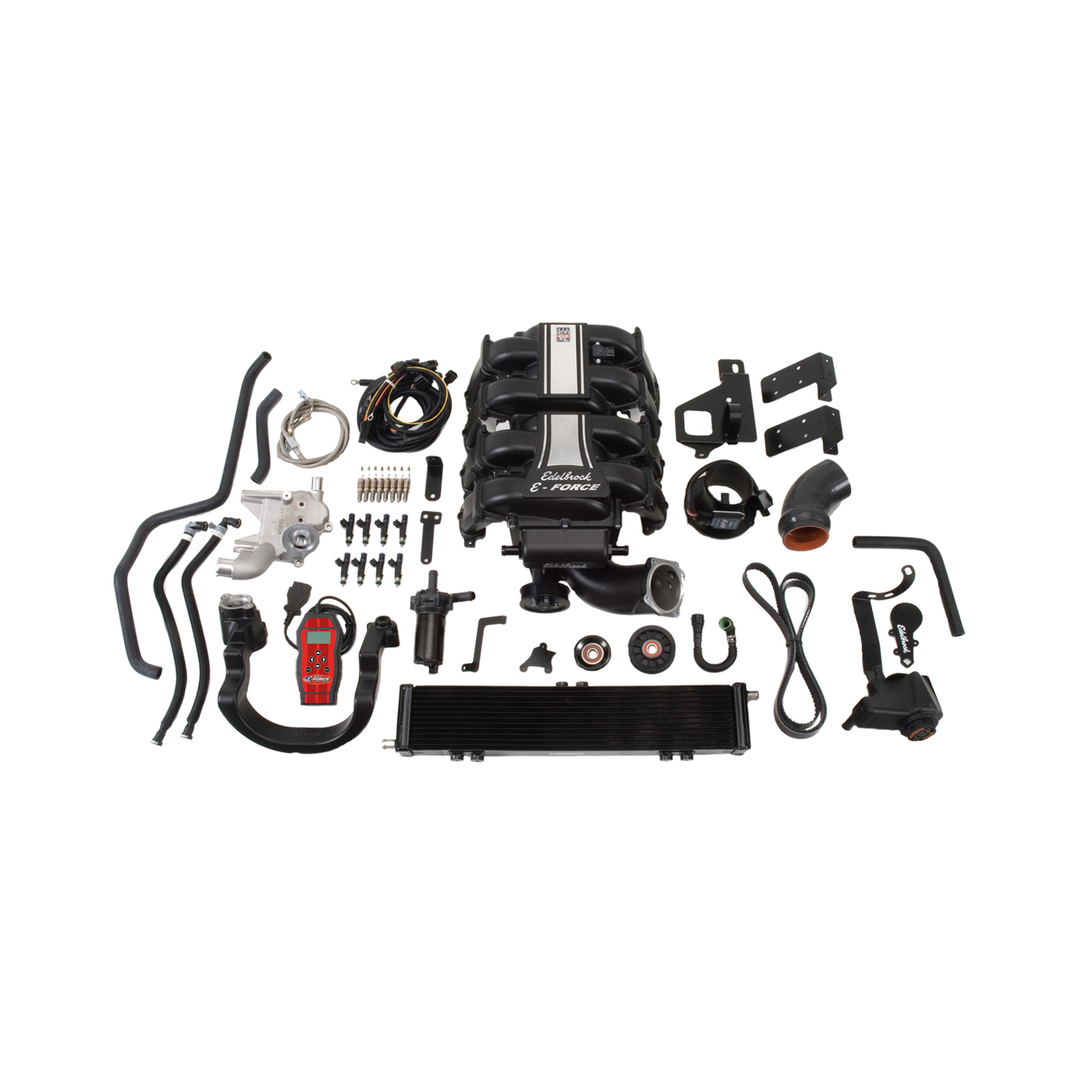

Edelbrock 1583 E-Force Supercharger System

The Edelbrock E-Force Stage 1 Street Supercharger System (Part #1583) is engineered specifically for 2009-2010 2-wheel drive Ford F-150 trucks equipped with the 5.4L 3V engine. This comprehensive forced induction kit delivers substantial horsepower and torque gains while maintaining excellent drivability and street manners.

Eaton Gen VI 2300 TVS Technology

At the heart of this system is the advanced Eaton Gen VI 2300 TVS (Twin Vortices Series) rotating assembly. The four-lobe rotor design features 160 degrees of twist, which maximizes airflow while minimizing temperature rise and operational noise. This design ensures smooth, quiet performance that's ideal for daily driving applications.

Key Features

  • Integrated Bypass Valve: Eliminates parasitic loss under light throttle conditions, helping to improve fuel economy potential during normal cruising
  • Optimized Inlet Design: Unique inlet configuration creates a shorter, less restrictive intake path that improves airflow without requiring a jack-shaft assembly
  • High-Capacity Intercooling: Air-to-water intercooler system with low-temperature heat exchanger keeps intake air temperatures down for consistent performance
  • 50-State Emissions Legal: CARB-certified and legal for use in all 50 states
  • Complete Bolt-On System: Includes all necessary components for installation

Calibration and Compatibility

The included calibration tune is specifically designed for completely stock vehicles, with the exception of cat-back exhaust systems. This ensures optimal performance and reliability when installed on an otherwise stock F-150.

Application

This supercharger system is designed exclusively for 2009-2010 Ford F-150 trucks with 2-wheel drive and the 5.4L 3-valve engine configuration.

Products specifications

Fits

2009-2010 Ford F-150

Internal Step Up

Yes

Housing Material

Cast aluminum

Hose Included

Yes

CARB Executive Order Number

D-215-89

Gasket Or Seal Included

Yes

Mounting Bracket Included

Yes

Maximum Horsepower

478

Rotor Type

Eaton TVS 2300

Harmonic Balancer Diameter

6.67

Quantity

Kit

Oil Capacity

150

RGL

WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Calibration

Yes

Maximum Boost Pressure

7

Fuel Injector Type

41

Pulley Belt Width

6-Rib

Air Filter Included

Yes

Outside Pulley Diameter

3.25

Center Housing Cooling Type

Intercooler

Vehicle Model

F-150

Maximum Torque

504

Mounting Hardware Included

Yes

Maximum Pressure Reading

7

Universal Or Specific Fit

Specific

System Type

Stage 1 - Street System

Finish

Black Powder Coated
