Zone Offroad C47 3.5" Adventure Series Suspension Lift Kit for GM 1500 Trucks

The Zone Offroad C47 Adventure Series Suspension Lift Kit delivers a complete 3.5-inch lift solution designed specifically for 2019-2024 Chevrolet Silverado 1500 and GMC Sierra 1500 4WD trucks. This system goes beyond basic leveling kits to offer improved performance and off-road capability with clearance for up to 35-inch tires.

Advanced Upper Control Arm Design:

The heart of this system features high-strength upper control arms with boxed and fully welded construction, along with a specially designed indexed ball joint cup to reposition the ball joints back to neutral position with the lift installed. These UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance.

Two-Piece Strut Spacer System:

Lift is provided by a 2-piece, combination top-mount and preload strut spacer design to provide a full 3.5 inches of lift without overextending the suspension at full droop. This engineering approach maintains proper suspension geometry and prevents the common issues associated with single-piece top-mount spacers.

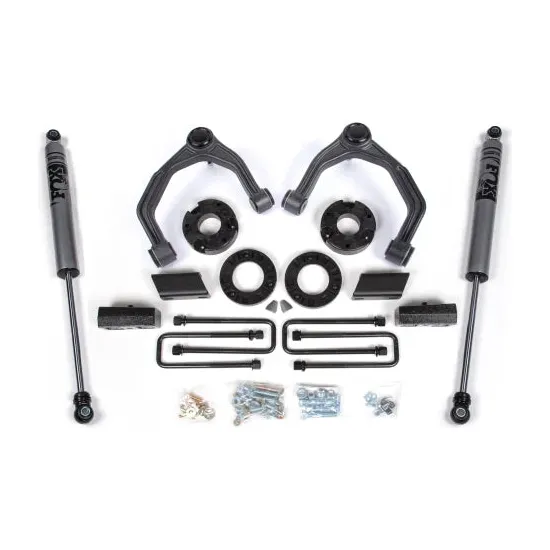

Complete Front and Rear Kit Includes:

• Cast ductile iron Adventure Series upper control arms with indexed ball joint cups
• Two-piece strut spacer system (top-mount and preload spacers)
• 2-inch rear lift blocks and heavy-duty u-bolts to level the stance
• Optional steering stops included for larger wheel/tire combinations
• All necessary hardware for installation

Performance Benefits:

• Retains factory ride quality without overextending suspension/drivelines at full droop while maintaining ride and handling characteristics with clearance for larger tires
• Greaseable ball joints for easy maintenance
• Corrected ball joint operating angles for improved suspension travel
• Compatible with up to 35-inch tire diameter

Important Installation Notes:

• Do not exceed wheel backspacing of 5.5 inches as it will cause clearance issues with UCA
• Minor cutting of the factory droop limiter required to allow for the increased travel of replacement upper control arms
• Will NOT fit models with a single leaf spring (mono-leaf) rear suspension
• Not compatible with Adaptive Ride Control (ARC) equipped vehicles

The Zone Offroad C47 Adventure Series kit is engineered to provide serious off-road capability while maintaining street-friendly ride quality, making it ideal for enthusiasts who demand both performance and daily drivability.
