ICON Vehicle Dynamics K53174T Stage Suspension System Lift with Tubular Upper Control Arms - 4 0-3.5

(2011-2014 Mercedes-Benz E350 Base; 2011-2016 Mercedes-Benz E550 Base; 2015-2016 Mercedes-Benz E400 Base; 2003-2009 Lexus GX470; 2012-2018 Toyota Prius C)

Manufacturer

Part Number

K53174T
Sale Price

$4,568.79

In Stock (10)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

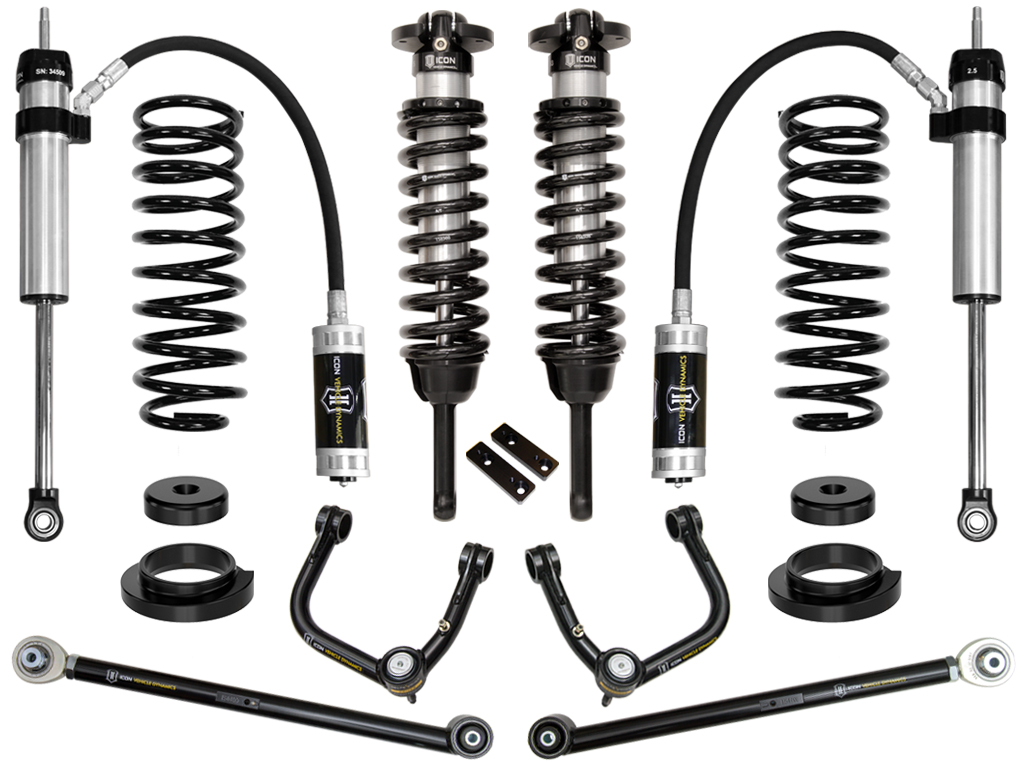

The ICON Vehicle Dynamics Stage 4 Suspension System transforms the 2003-2009 Lexus GX470 into a capable on-road and off-road performer. This comprehensive system delivers 0-3.5 inches of adjustable lift height, extended wheel travel, and superior ride quality compared to the factory suspension setup.

Front Suspension Components:

  • Vehicle-specific tuned 2.5-inch extended travel coilover shocks with internal reservoirs and 7/8-inch shafts
  • Height adjustable from 0-3.5 inches of lift to accommodate larger wheel and tire combinations up to 33x11.50 inches
  • Tubular steel Delta Joint upper control arms for extended wheel travel and precise geometry correction
  • Corrosion-resistant CAD plated coilover shock bodies
  • 6061 aircraft grade aluminum CNC machined components

Rear Suspension Components:

  • 2.5 Aluminum Series remote reservoir rear shocks with vehicle-specific valving and 7/8-inch shafts
  • 2-inch lift rear coil springs for improved load capacity and ride height
  • Rear coil spring conversion kit eliminates factory air suspension system (GX470-specific)
  • Tubular steel rear lower link arms with low-maintenance multi-durometer bushings
  • Adjustable pinion angle for optimized driveline geometry
  • Engineered roll steer geometry for predictable on-road and off-road handling

ICON Delta Joint Technology:

This system features ICON's patented Delta Joint (U.S. Patent 10,731,700) in the tubular upper control arms. The Delta Joint combines the durability and weather resistance of a traditional ball joint with the high-angle articulation performance of a uniball. The zinc-plated housing provides corrosion resistance while a robust grease seal protects internal components from contamination. The greaseable metal-on-metal design ensures extended service life and quiet operation, making it ideal for daily driven vehicles that also see off-road use.

Performance Benefits:

  • Increased wheel travel over stock suspension for improved ride quality and terrain capability
  • FK Rod End bearings for extended longevity and minimal deflection
  • Remote reservoir design on rear shocks provides increased oil volume and enhanced cooling to prevent fade during extended use
  • Compatible with KDSS (Kinetic Dynamic Suspension System) equipped vehicles
  • Fully serviceable shock absorbers for long-term maintenance

Application Notes:

  • Recommended tire size: 33x11.50 inches (larger tires may require fender trimming and modifications)
  • Remote reservoir mounting brackets may interfere with aftermarket bumper mounts or windshield washer bottles
  • Front sway bar relocation brackets not used on KDSS equipped vehicles
  • Certain model years may require trimming for front reservoir bracket fitment
  • 700-lb coil spring option available for heavier equipped vehicles
  • KDSS equipped vehicles require ICON rear track bar part number 54200 (sold separately)

WARRANTY: California Proposition 65 Warning - This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2011-2014 Mercedes-Benz E350 Base; 2011-2016 Mercedes-Benz E550 Base; 2015-2016 Mercedes-Benz E400 Base; 2003-2009 Lexus GX470; 2012-2018 Toyota Prius C

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Rate

650

Bushings Included

Yes

Add-On Part

252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)

Coils Quantity Front

2

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

OEM Wheels & Tires Fitment

Yes

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Grade Type

Performance

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Shocks Included

Yes

Spring Material

Steel

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Mounting Hardware Included

Yes

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT
