ICON Vehicle Dynamics K93062T Stage Suspension System Lift with Tubular Upper Control Arms - 2 0-2.63

(2014 Ford F-150; 2008-2014 Scion xD Base; 1989-1992 Toyota Cressida Luxury)

Manufacturer

Part Number

K93062T
Black Friday Price

$2,494.92

$2,935.20 Save 15%

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

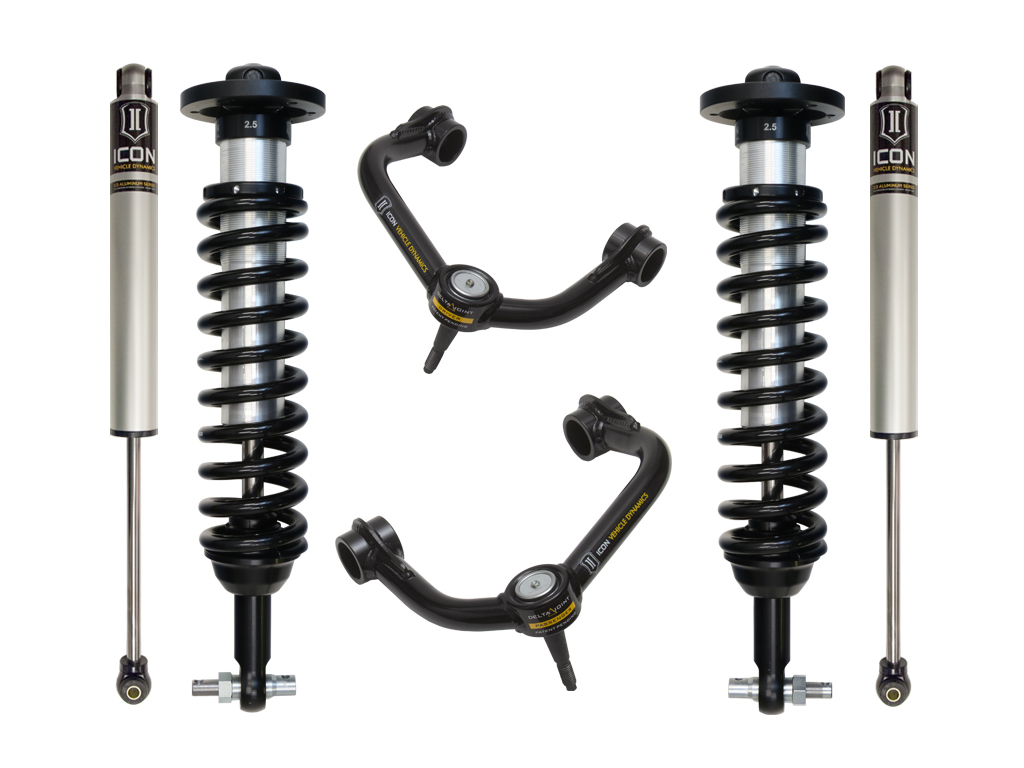

The ICON Vehicle Dynamics Stage 2 Suspension System is engineered for maximum performance and serious drivers who demand superior wheel travel, damping ability, and outstanding vehicle control both on and off-road. This comprehensive system features vehicle-specific tuned 2.5" coilover shocks with an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs that deliver superior vehicle feel through the full range of travel.

Key Features:

  • Height adjustable coilovers provide 0-2.63" of lift, allowing the use of larger, more aggressive wheel and tire combinations
  • Tubular upper control arms add strength and durability while helping retain factory alignment spec range and increasing caster over stock
  • ICON 2.0 Aluminum Series monotube rear shocks utilize vehicle-specific valving that balances performance from front to rear
  • 6061 aircraft-grade aluminum CNC machined components
  • Corrosion-resistant CAD plated coilover shock body with 7/8" shaft
  • Increased wheel travel and ride quality with no change in towing capacity
  • Recommended for aftermarket tires up to 33" x 11.50" (larger tires may require fender trimming)

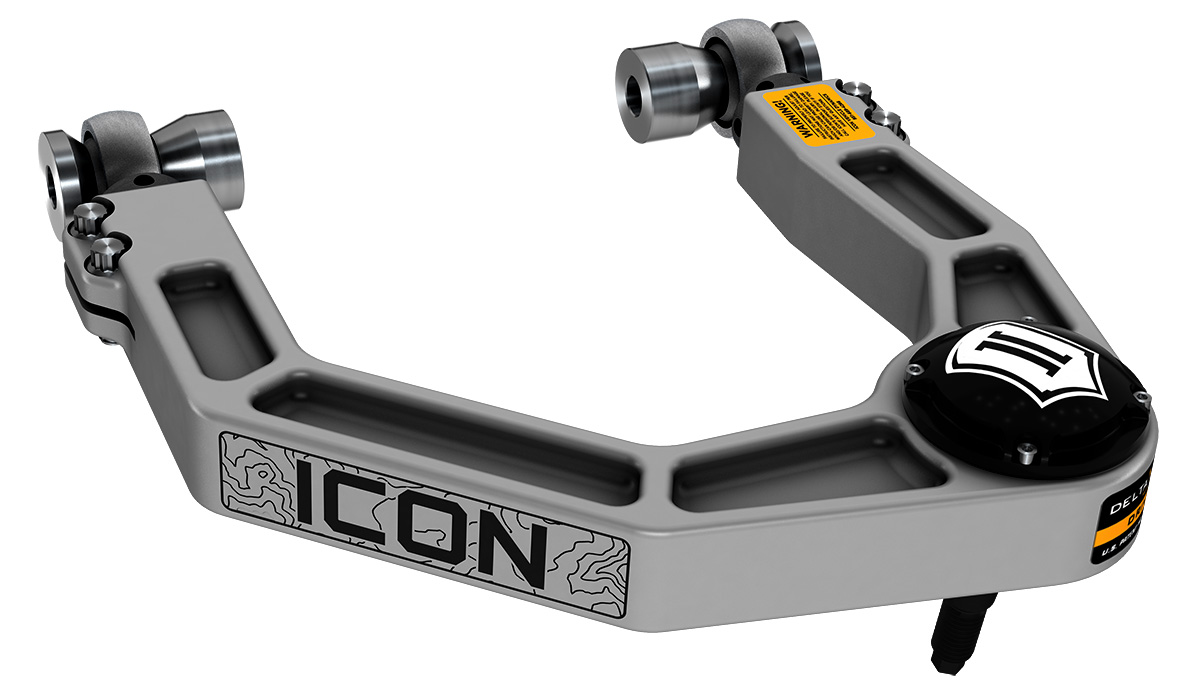

ICON Patented Delta Joint Technology:

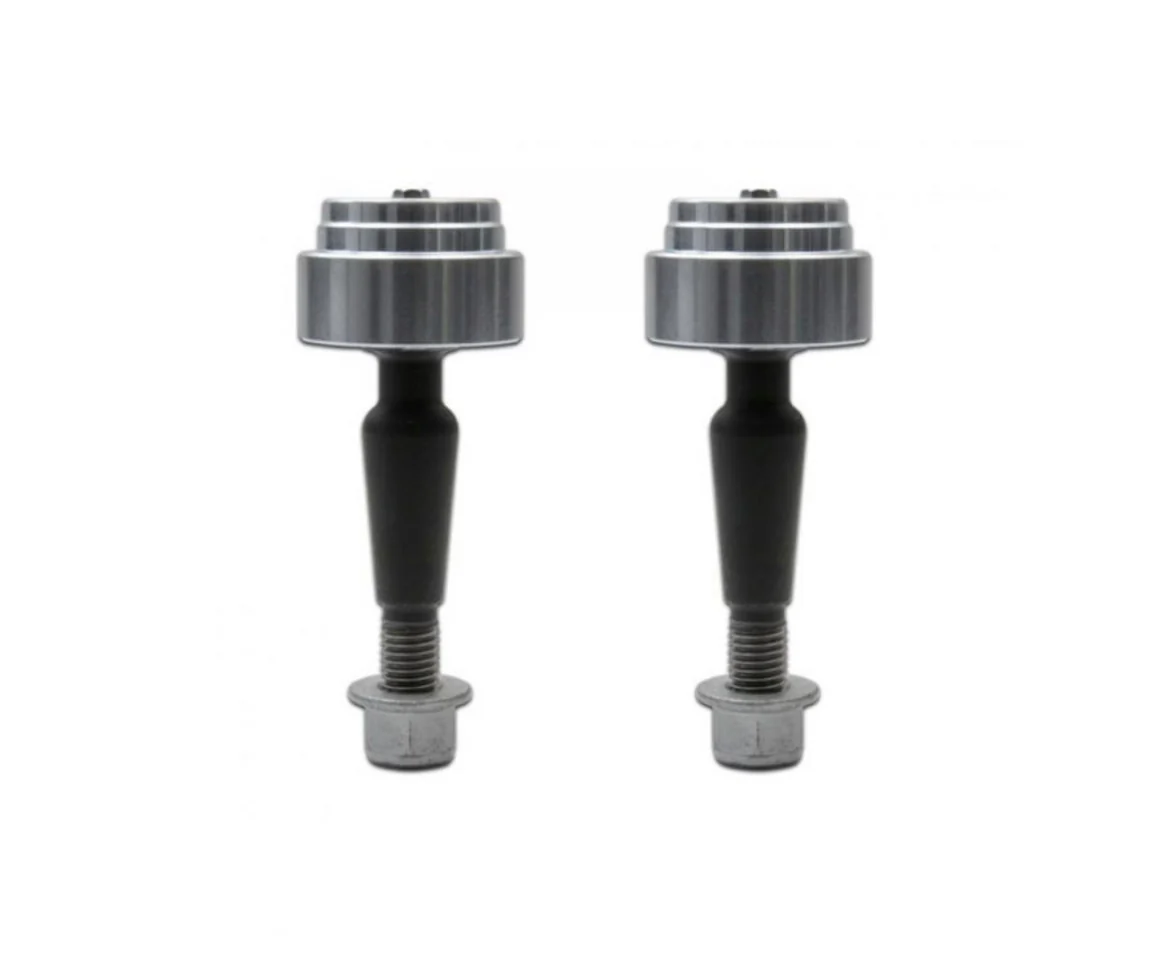

The included tubular upper control arms feature ICON's patented Delta Joint—a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. The Delta Joint features a zinc-plated housing providing corrosion resistance, while a tough grease seal keeps harmful elements out of the inner workings. Metal-on-metal construction and a greaseable design increase longevity while allowing for noise-free operation.

Technical Specifications:

  • Front: 2.5" coilover shocks with internal reservoir and height adjustment (0-2.63")
  • Rear: 2.0 Aluminum Series monotube shocks
  • Compatible with OE spindles only—do not install with aftermarket spindles
  • For 4WD models only
  • Tubular front upper control arms optimized for front lift heights from 1.75-3" over stock
  • Shocks are fully serviceable

This complete Stage 2 suspension system includes all necessary components and hardware for installation, transforming your truck's capabilities on pavement and in the dirt while maintaining excellent ride quality and control.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2014 Ford F-150; 2008-2014 Scion xD Base; 1989-1992 Toyota Cressida Luxury

Bushings Included

No

Mounting Hardware Included

Yes

Grade Type

Performance

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Spring Material

Steel

Maximum Lift

2.63

Add-On Part

191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
