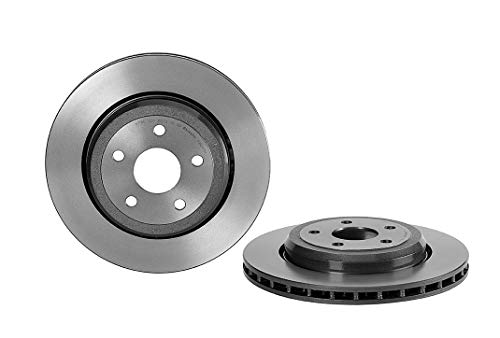

Brembo 09.N247.11 Premium UV Coated Rear Disc Brake Rotor

The Brembo 09.N247.11 is a premium UV coated rear disc brake rotor featuring advanced Pillar Venting Technology (PVT) for superior performance and durability. This vented rotor is manufactured from high-carbon cast iron with a 13.78-inch (350mm) outer diameter and 28mm nominal thickness, engineered to meet or exceed OEM specifications.

Key Features:

• Patented Pillar Venting Technology (PVT) enhances cooling potential and increases resistance to thermal cracking by more than 40%
• Environmentally-friendly solvent-free UV coating provides superior corrosion protection for the entire disc, including braking surfaces
• High-carbon cast iron construction minimizes noise and vibration for maximum performance and enhanced driving comfort
• Rust-resistant coating allows installation directly from the box with a clean, shiny metallic appearance
• Intelligent marking location displays part number and minimum thickness specification for easy reference
• Includes complete fixing screw kit with all necessary hardware for simple, worry-free installation

Specifications:

• Rotor Type: Vented (Pillar Vented)
• Position: Rear
• Outside Diameter: 13.78 inches (350mm)
• Nominal Thickness: 28mm (1.102 inches)
• Minimum/Discard Thickness: 26mm (1.020 inches)
• Center Hole Size: 72mm (2.830 inches)
• Overall Height: 64mm (2.520 inches)
• Material: Gray Cast Iron
• Surface Finish: UV Coated

Brembo rotors undergo strict quality control for balancing and tolerances, ensuring optimal rotor shape values that deliver premium comfort and performance. For best results, rotors and brake pads should be replaced together and paired with Brembo NAO, Ceramic, or Low-Metallic brake pad formulations. OE replacement numbers include 5151512AC and 5181512AB.
