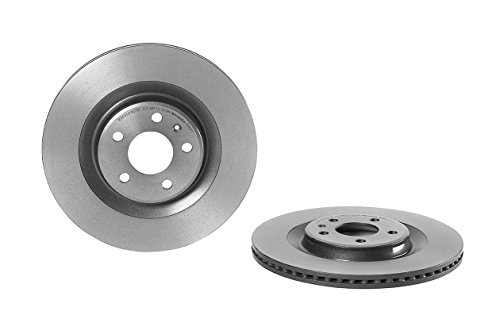

Brembo 09.B969.11 Premium UV Coated Rear Disc Brake Rotor

The Brembo 09.B969.11 is a premium UV coated rear disc brake rotor engineered to deliver superior braking performance, durability, and corrosion resistance. Designed as a direct OEM replacement, this rotor meets or exceeds original equipment specifications for fit, function, and performance.

Advanced UV Coating Technology:

Brembo's signature UV coating protects the entire rotor surface, including internal ventilation chambers, against corrosion to ensure lasting performance and a clean, refined appearance. The environmentally friendly, solvent-free UV coating provides superior protection while reducing environmental impact compared to traditional coating methods.

Pillar Venting Technology (PVT):

This rotor features Brembo's exclusive Pillar Venting Technology, which uses pillars instead of conventional vanes in the ventilation chamber. This innovative design increases airflow through the rotor for up to 40% greater resistance to thermal cracking compared to conventional vane systems, ensuring consistent performance under demanding conditions.

Premium Construction:

Crafted from high-carbon cast iron optimized for strength, heat dissipation, and vibration control, this rotor minimizes noise and vibration while providing maximum performance and enhanced driving comfort. Precision balancing and tight manufacturing tolerances minimize runout and vibration, promoting smooth and confident braking performance.

Key Specifications:

• Outside Diameter: 12.99 inches (330mm)
• Rotor Height: 1.42 inches (36mm)
• Center Hole Size: 2.68 inches (68mm)
• Discard Thickness: 0.79 inches (20.0mm)
• Construction: Vented
• Bolt Holes: 5
• ECE R-90 certified

Complete Installation Kit:

Each rotor includes a fixing screw kit with all necessary hardware for simple, worry-free installation. The rotor features intelligent marking locations that clearly display the part number and minimum thickness for easy reference during inspection and maintenance.

Backed by a 2-year warranty and ECE R-90 certification, the Brembo 09.B969.11 delivers the craftsmanship, confidence, and performance expected from the global leader in braking systems.
