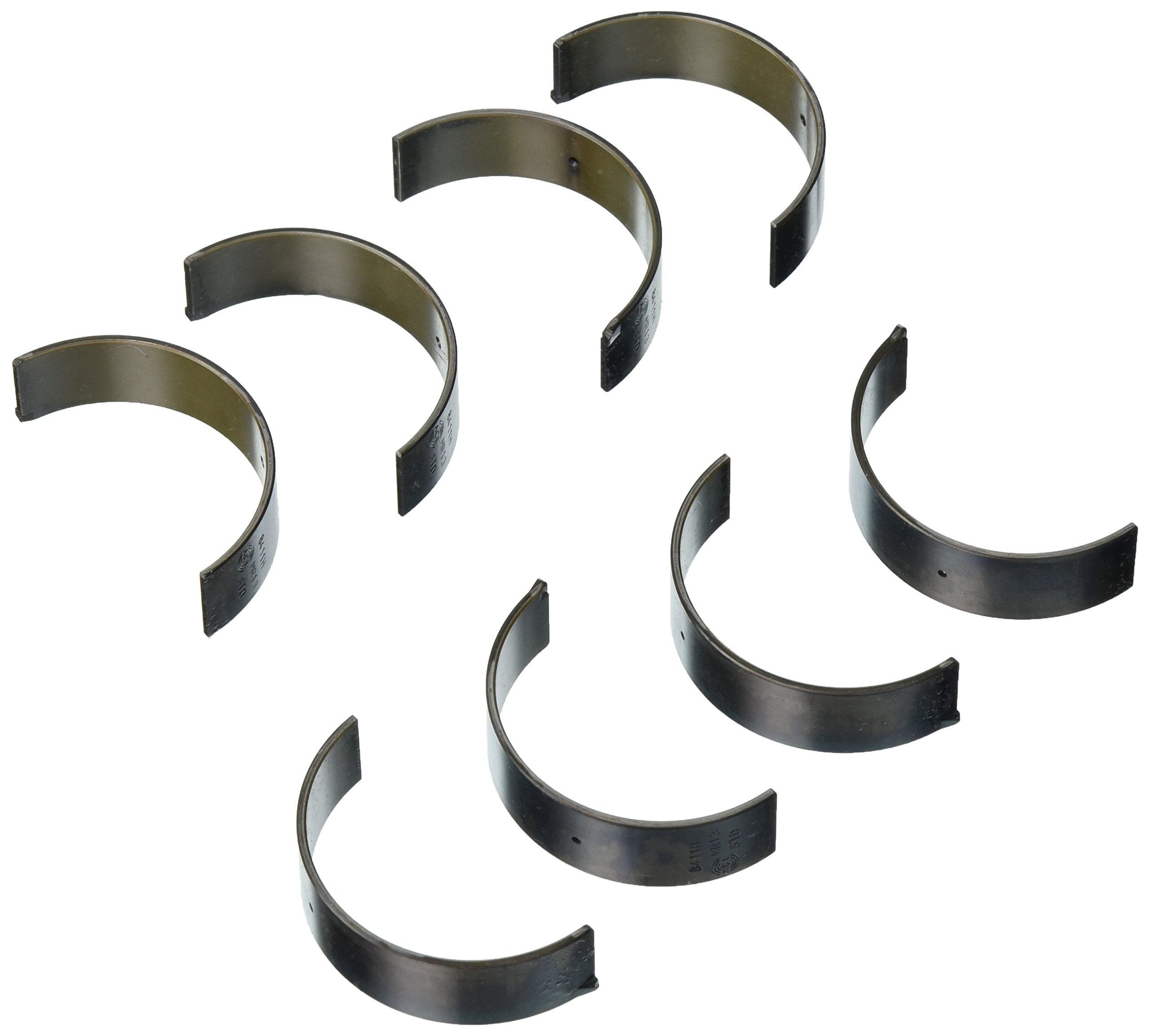

ACL Bearings 4B8411HX-STD Race Series Connecting Rod Bearing Set Toyota - 1AZ/2AZ

Manufacturer

Part Number

4B8411HX-STD
Black Friday Price

$95.83

Estimated ship date Thursday, December 10

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Race Series 4B8411HX-STD connecting rod bearing set is engineered for high-performance engine builds and upgrades, delivering superior bearing capacity and durability compared to standard OEM bearings. This standard size bearing set features F781 bearing material with identical halves configuration.

Key Features:

  • Designed to withstand higher RPM conditions with high strength overlay plate and reduced thickness for improved fatigue properties
  • Hardened steel backing on all rod bearings improves support of the bearing lining and assists with bearing retention
  • Increased crush for improved bearing retention in demanding applications
  • HX designation indicates extra oil clearance for high-performance applications
  • Advanced material composition, dynamic thickness control, enhanced heat conduction, and optimized oil groove design
  • Eliminates flash plating on bearing backs to maximize heat transfer and grip

Technical Specifications:

  • Bearing Size: Standard (STD)
  • Maximum shaft size: 48mm (1.890")
  • Maximum tunnel size: 51.02mm (2.009")
  • Oil clearance range: 0.046-0.092mm (0.0018"-0.0036")
  • Overall length: 15.6mm (0.614")
  • Bearing Material: F781 tri-metal construction

This bearing set is designed for Toyota 1AZ-FE (1998cc) and 2AZ-FE/2AZ-FXE (2362cc) inline-4 DOHC engines. ACL Race Series bearings are recognized as a premier brand throughout the motorsports world, used in race engines that have set records and won championships from drift racing to NASCAR, IHRA, and NHRA competitions.

Products specifications

Max Overall Length

0.6142"(15.60mm)

Max Std Shaft Size

1.8898"(48.000mm)

Max Std Tunnel Size

2.0087"(51.020mm)

Max Wall at Crown

0.0581"(1.477mm)

Min Std Shaft Size

1.8894"(47.990mm)

Min Std Tunnel Size

2.0079"(51.000mm)

Oil Clearance

+ 0.001" Extra

Size

Standard
