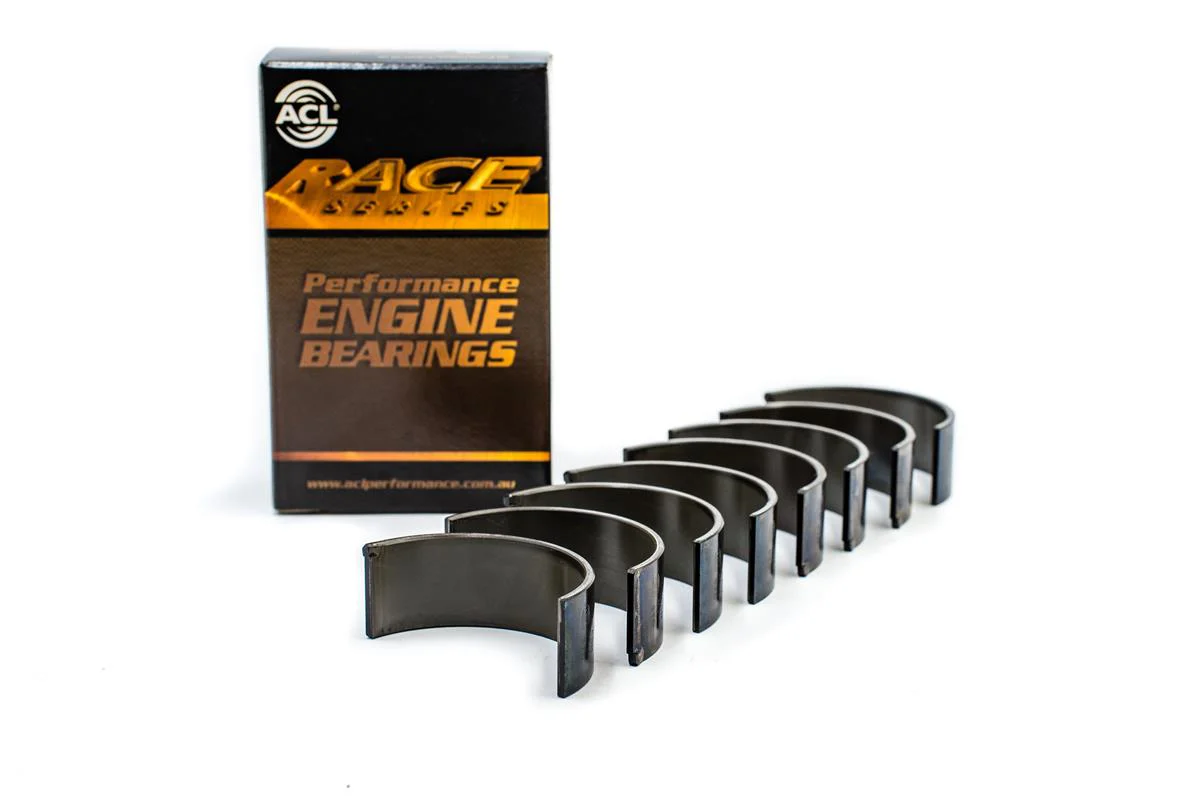

ACL Bearings 4B1568H-.25 Race Series Connecting Rod Bearing Set Oversize - 0.25mm

Manufacturer

Part Number

4B1568H-.25
Black Friday Price

$124.19

Estimated ship date Thursday, December 10

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 4B1568H-.25 is a high-performance Race Series connecting rod bearing set designed for demanding racing and high-RPM applications. This bearing set features 0.25mm oversize dimensions with standard oil clearance, engineered specifically for precision engine builds and performance upgrades.

Advanced Trimetal Construction:

  • High-strength overlay plate with reduced thickness for superior fatigue resistance
  • F781 bearing material formulation optimized for racing conditions
  • Hardened steel backing on all rod bearings for improved lining support and retention
  • Enhanced heat transfer through elimination of flash plating on bearing backs

Race-Proven Design Features:

  • Increased crush for improved bearing retention in the housing
  • Increased eccentricity to compensate for bore distortion at high RPM
  • Optimized bearing geometry assists in formation of hydrodynamic oil films
  • Enlarged ID chamfers accommodate large fillet radius on performance crankshafts
  • Identical bearing halves for simplified installation

Technical Specifications:

  • Bearing Size: 0.25mm oversize
  • Overall Length: 20mm (0.7874 inches)
  • Shaft Size Range: 47.975mm to 47.991mm
  • Housing Bore Range: 52.000mm to 52.015mm
  • Vertical Oil Clearance: 0.023mm to 0.070mm
  • Wall Thickness at Crown: 1.993mm maximum

ACL Race Series bearings are recognized throughout the motorsports industry for their exceptional durability and performance. These bearings combine advanced metallurgy, precision engineering, and race-tested design to deliver reliable protection in high-performance engines where standard bearings cannot survive.
