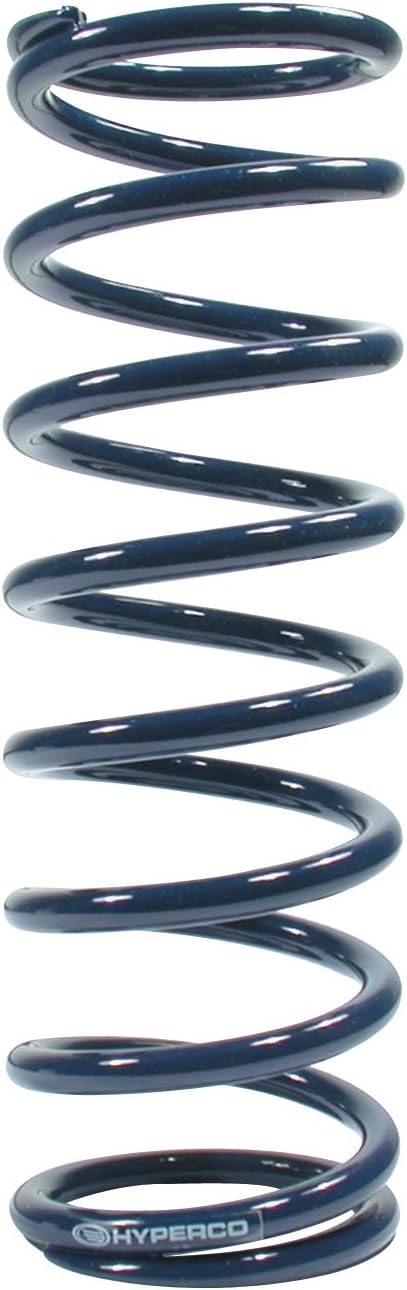

Hyperco 1814B0100 Coil-Over Spring 2.5" ID 14" Length 100 lb Rate

The Hyperco 1814B0100 is a high-performance coil-over spring featuring a 2.50 inch inner diameter, 14 inch free length, and 100 pounds spring rate. This spring features a durable blue powder coat finish and is constructed from high-quality steel. Designed for motorsports and racing applications, this coil-over spring is built to deliver superior performance and reliability in demanding conditions.

Optimum Body Diameter Technology:

Hyperco's optimum body diameter racing springs feature a design concept that adjusts the body diameter of the spring relative to the end coils, enabling Hyperco to take full advantage of its high tensile material by optimizing the applied stress through adjusting the spring's body diameter. This innovative design delivers more deflection for the same free length and spring rate, less weight, increased rate linearity, and more resistance to bowing. Optimum body diameter springs fit all standard hardware.

Key Specifications:

• Inner Diameter: 2.50 inches
• Free Length: 14 inches
• Spring Rate: 100 lbs/in
• Material: High-quality steel
• Finish: Blue powder coat
• Design: Optimum Body Diameter (OBD)

Coilover springs are high-performance, aftermarket suspension springs primarily used in motorsports and motor racing, offering a wide range of free lengths and rates which provide the suspension designer latitude in creating a motion ratio for the suspension system. Ideal for circle track racing, drag racing, road racing, and high-performance street applications.
