Hedman Hedders 69040 LS Engine Swap Headers Mid-Length Tube 1-1/2 Inch Primary

The Hedman Hedders 69040 is a LS engine swap header set specifically engineered for installing GM LS-series engines into 1982-2004 Chevrolet and GMC S10/S15 2WD trucks. These mid-length tube headers solve the common fitment challenges that arise when swapping modern LS engines into classic compact trucks.

Key Features:

• 1-1/2 inch diameter primary tubes with 16-gauge mild steel construction
• 2-1/2 inch ball and socket collector design eliminates gaskets and allows for exhaust system misalignment
• Mid-length tube design provides better low and mid-range power than stock manifolds while offering superior ground clearance compared to long tube headers
• Handcrafted under-chassis exit construction for optimal fitment
• 3/8 inch thick mounting flanges with round port configuration
• Uncoated finish with temporary non-high temperature paint
• Compatible with air conditioning and floor-shifted transmissions (automatic or manual)

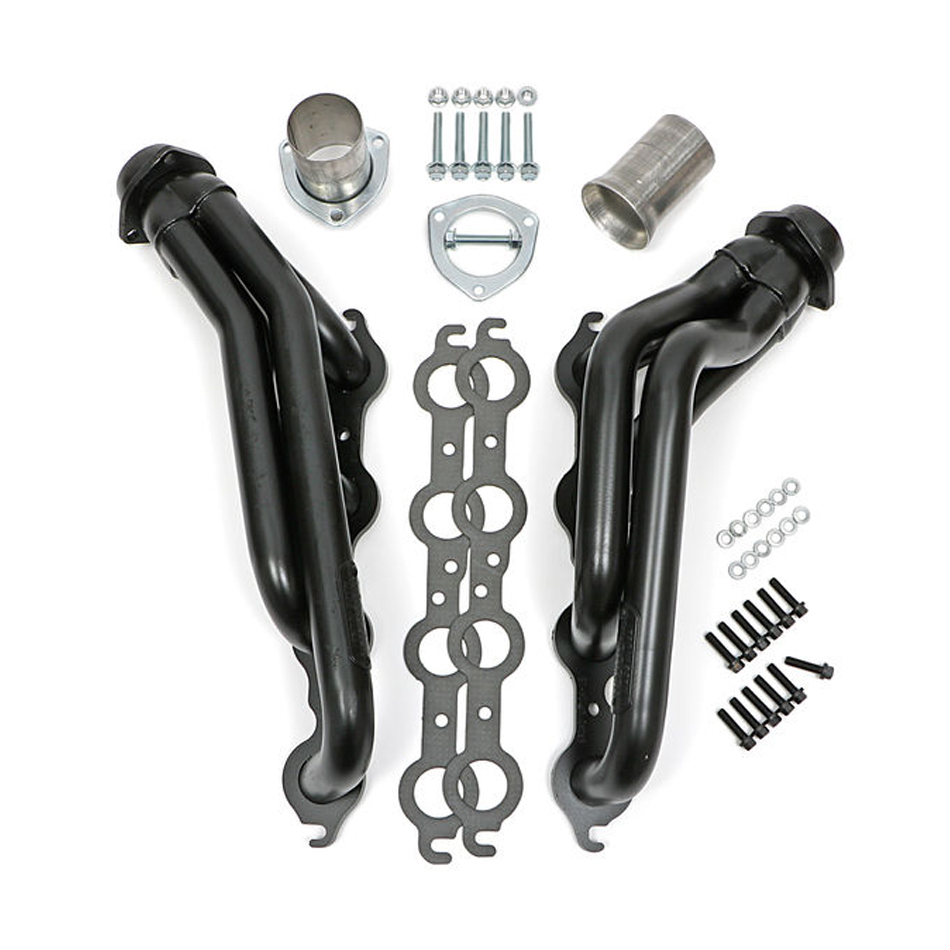

What's Included: Complete pair of headers, header gaskets, 3-bolt exhaust adapters (reducers), and all necessary mounting hardware. Requires Trans-Dapt Engine Swap Mount Kit 4516 (rubber) or 4530 (steel) for proper installation. Designed for 2WD applications only and is not legal for street use on 1975-later model year vehicles per emissions regulations.

Backed by Hedman's limited lifetime warranty on materials and construction, these headers deliver improved exhaust flow and enhanced performance for your LS-swapped compact truck project.
