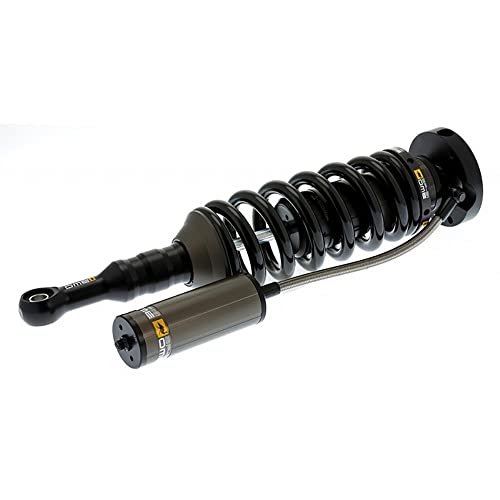

ARB BP5190007L Old Man Emu BP-51 Bypass Coilover Front Left

Manufacturer

Part Number

BP5190007L
Black Friday Price

$949.95

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ARB Old Man Emu BP-51 BP5190007L is a high-performance internal bypass coilover designed for the front left position on 2015+ Toyota Hilux vehicles. This advanced suspension component brings racing technology to everyday off-road adventures, delivering exceptional on-road comfort and off-road control through patent-pending bypass technology.

Key Features:

  • 51mm monotube bore with remote reservoir for superior heat dissipation and fade-free performance
  • Internal bypass technology with position-sensitive damping for plush ride quality and bottom-out resistance
  • Independent rebound and compression adjustment for customizable ride tuning (10-click rebound, 8-click compression)
  • Adjustable spring preload for ride height changes between factory height and 2-3 inches of lift
  • 6061 T-6 aluminum body with hard anodized finish for corrosion resistance and efficient heat dissipation
  • High-quality X5K grade steel coil spring matched specifically to vehicle weight and geometry
  • 19mm hard chrome ground shaft with integrated stone guards for harsh environments
  • Rebuildable design with worldwide ARB/OME support
  • Fully assembled strut and spring assembly ready for installation

Technical Specifications:

  • Position: Front Left (Driver Side)
  • Compatible with 0-2 inch lift applications
  • Requires vehicle mount kit VM80010018 for installation (sold separately)
  • 3-year/37,000-mile limited warranty
  • Engineered, developed, tested, and manufactured in-house by Old Man Emu

The BP-51 system represents a breakthrough in bolt-on suspension technology, offering the adjustability and performance of external bypass shocks in a package that fits within factory mounting points. Unlike traditional adjustable shocks that only control compression, the BP-51 provides independent adjustment of both rebound and compression damping, allowing drivers to fine-tune their suspension for towing, hauling gear, challenging terrain, or comfortable highway cruising.
