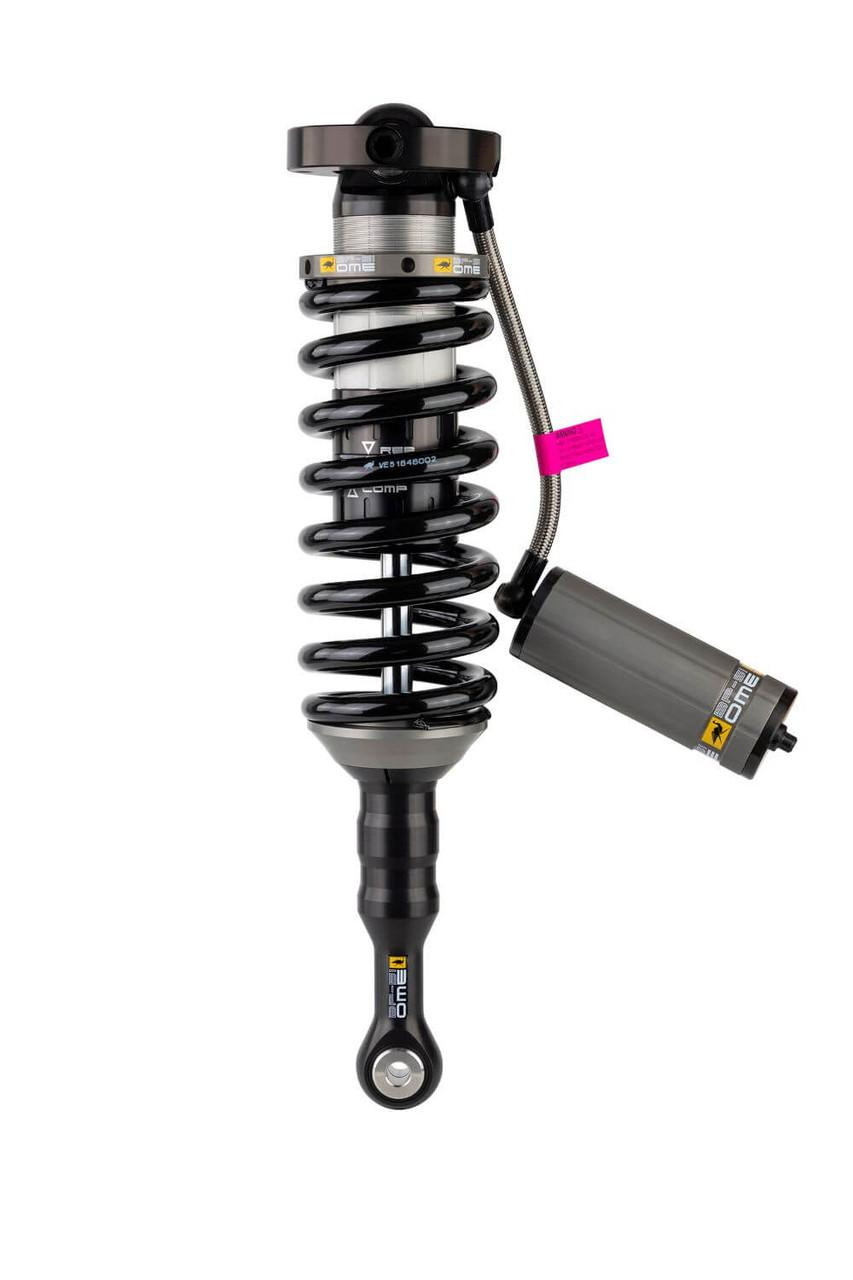

The ARB Old Man Emu BP-51 Front Right Coilover represents the pinnacle of off-road suspension technology, combining patent-pending bypass design with race-proven engineering to deliver exceptional performance both on and off the road. Part number BP5190002R is specifically engineered for Toyota Prado 150 series, FJ Cruiser, and 4Runner applications.
Advanced Bypass Technology:
The BP-51 features a revolutionary 51mm diameter bore bypass shock design that provides position-sensitive damping in addition to traditional velocity-sensitive damping. Unlike conventional shocks that only generate damping through the piston, the BP-51 creates an alternative fluid flow path around the piston through bypass passages. This innovative design delivers a comfortable, compliant ride during normal driving conditions while providing superior control over challenging terrain by generating increased damping at the ends of the stroke to prevent harsh bottoming out.
Key Features:
- Independent on-vehicle adjustability of both rebound and compression for class-leading ride customization
- Aircraft-grade 6061 anodized aluminum shock body for superior heat dissipation and corrosion resistance
- High-quality X5K grade steel coils with application-specific design
- 6061-grade aluminum remote oil reservoir with increased oil capacity for lower operating temperatures
- Durable Dash 6 high-temperature Teflon hose with high-flow fittings for optimum oil flow
- 6061-grade aluminum spring adjustor for precise height tuning
- Utilizes existing mounting locations for straightforward installation
Quality and Warranty:
Designed, developed, tested, and manufactured entirely in-house by ARB's Old Man Emu ride engineers in Australia, the BP-51 coilover system ensures the highest quality standards. Each unit is backed by ARB's comprehensive 3-year or 37,000-mile limited warranty, demonstrating their confidence in this premium suspension component.
This right-hand (passenger side) coilover is sold individually and is designed to work seamlessly with the existing range of Old Man Emu suspension components. The BP-51 system focuses on delivering superior ride quality rather than simply increasing ride height, incorporating the latest shock valving technology to achieve an unprecedented level of comfort and control.
