Edelbrock 35870 Pro-Flo 4 EFI System Big Block Chevy Rectangle Port 550HP

(Chevrolet Camaro 1967-72, Corvette 1966-74, Impala 1966-75, Malibu 1966-67, 1973-75, Chevelle 1966-73, Blazer 1973-74, C10 Pickup 1968-74 + 54 more models)

Part of: Edelbrock Pro-Flo 4 EFI System

Other options in this family: Edelbrock 35950 Edelbrock 35650 Edelbrock 35730 Edelbrock 36130 Edelbrock 35980

Manufacturer

Picture for manufacturer Edelbrock

Part Number

35870
5 reviews
Sale Price

$2,723.42

In Stock (6)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Edelbrock Pro-Flo 4 XT Sequential Port EFI System delivers cutting-edge fuel injection technology for Big-Block Chevy rectangle port engines. This complete kit includes everything needed for a hassle-free installation and is capable of supporting up to 550 horsepower.

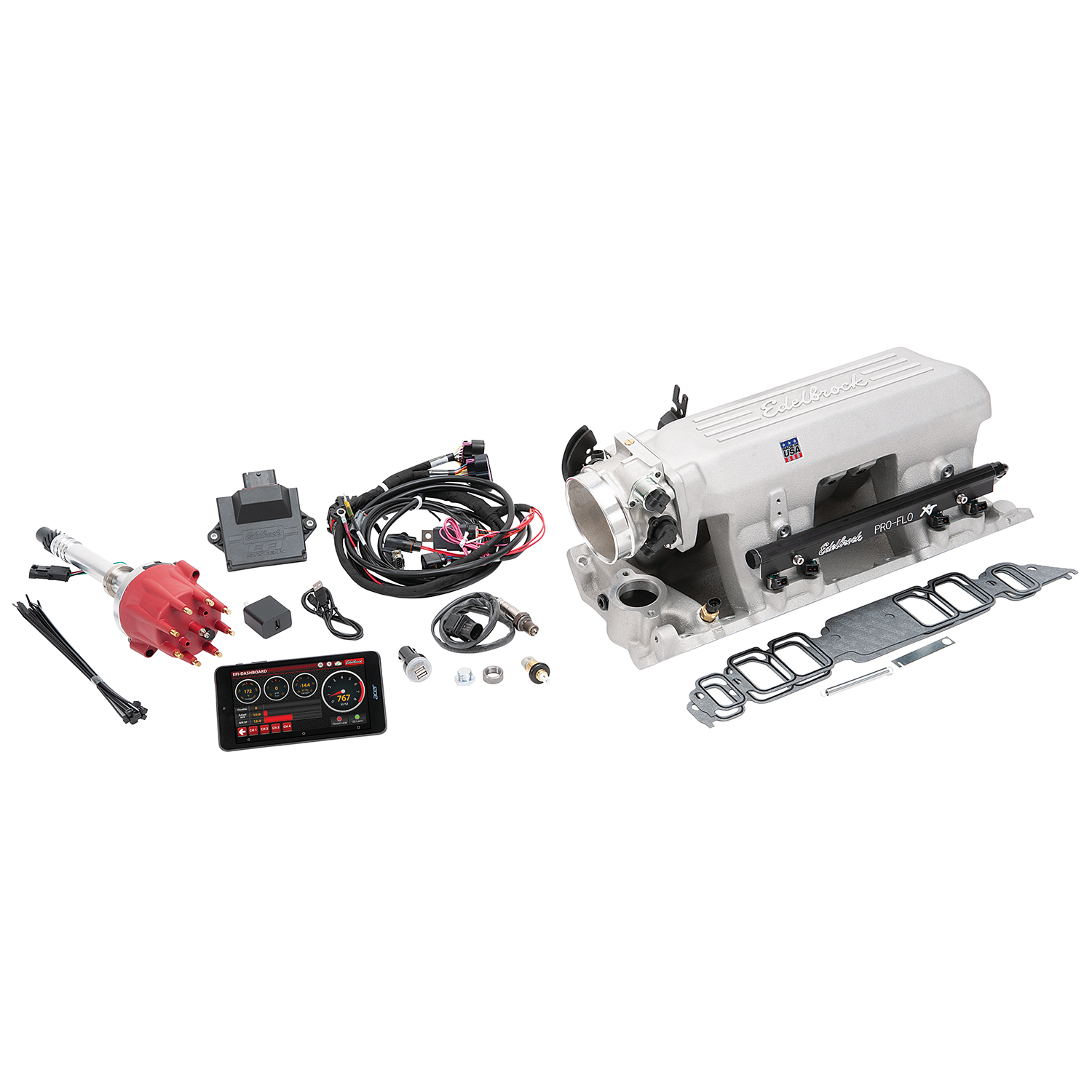

Complete System Includes:

  • Satin finish Pro-Flo XT intake manifold engineered for Big-Block Chevy rectangle port heads
  • Four 35 lb/hr fuel injectors rated for 550 HP at 58 PSI fuel pressure
  • Plug-and-play single connection distributor designed specifically for Pro-Flo 4 compatibility
  • Fully terminated, USA-made wiring harness with clearly labeled connections
  • All-new waterproof ECU with faster processor and compact design (half the depth of previous models)

Advanced Features:

  • Upgraded Bluetooth chip provides faster, more reliable connection without signal drops
  • Exclusive E-Tuner 4 app with dyno-developed base calibrations and self-learning capability
  • Full tuning control over air-fuel ratios, ignition timing, idle speed, acceleration fuel, coolant fan operation, and rev limiter
  • Simple setup wizard guides you through initial configuration
  • Multiple dashboard displays allow real-time monitoring of engine vitals from Android smartphone or tablet
  • No laptop required for tuning—E-Tuner 4 app communicates wirelessly via Bluetooth

The E-Tuner 4 app is free to download from the Google Play Store for use with Android devices. The ECU continuously adjusts calibration through self-learning algorithms to optimize performance while maintaining the user-friendly simplicity that Pro-Flo systems are known for. Optional kits with pre-loaded 7-inch Android tablets are also available.

Products specifications

Fits

Chevrolet Camaro 1967-72, Corvette 1966-74, Impala 1966-75, Malibu 1966-67, 1973-75, Chevelle 1966-73, Blazer 1973-74, C10 Pickup 1968-74, Caprice 1966-75, C10 1975, El Camino 1966-75, Monte Carlo 1970-75, Nova 1969-72 + 49 more models

Distributor Cap Included

Yes

Engine Make/Size

Chevy Big Block (396-502)

Fuel Rate

35 lbs./hr

Maximum Horsepower

550

Bore Diameter

90

Wiring Harness Included

Yes

Gasket Or Seal Included

Yes

Finish

Satin

Wire Harness Included

Yes

Cylinder Head Type

Rectangular Port

Flange Type

XT-Style

System Type

XT-Style Kit

Throttle Body Type

Single Blade

Fuel Injector Type

35 lb/hr

Quantity

Kit

Fuel Pressure Port

1/8-27 NPT

RGL

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Manifold Height

A-9.8 in, B-10.0 in, C-17.8 in, D-0.0 in, E-10 Degrees
