Edelbrock 35650 Pro-Flo 4 EFI System for AMC 304 360 390 401

The Edelbrock Pro-Flo 4 EFI System #35650 is an advanced sequential-port electronic fuel injection system engineered specifically for 1970-1991 AMC 304, 360, 390, and 401 cubic inch engines. This complete EFI conversion kit delivers modern fuel delivery performance and drivability to classic AMC V8 powerplants.

High-Performance Fuel Delivery:

The system features a multi-port design with an injector positioned at the end of each runner, ensuring optimal fuel atomization and even distribution to all combustion chambers. The kit includes a Victor Jr.-style single-plane intake manifold that comes preassembled with high-flow fuel injectors, fuel rails, and a 4150-flange throttle body rated for up to 550 horsepower at 58 PSI.

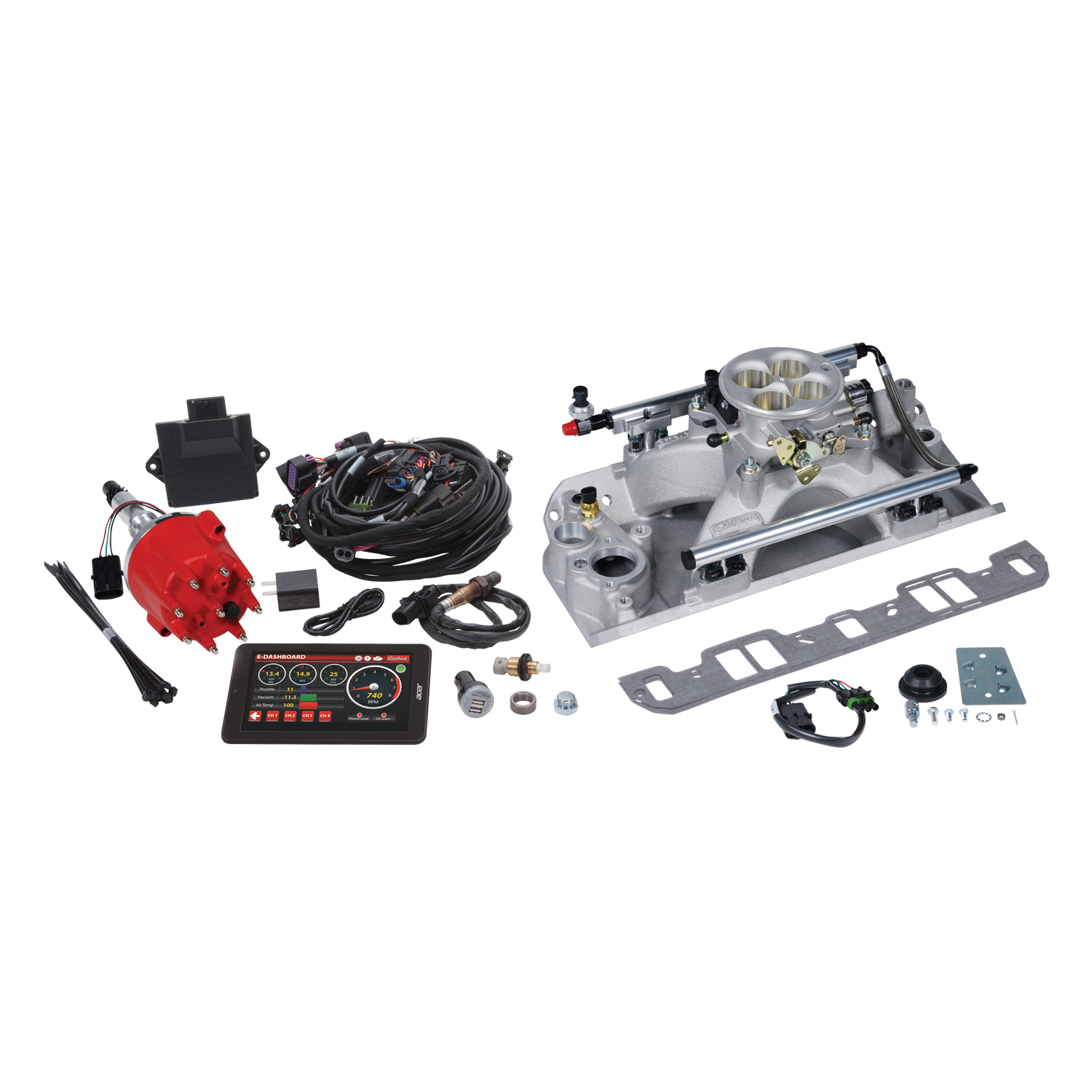

Complete System Includes:

• Victor Jr.-style single-plane intake manifold with integrated fuel system
• High-flow fuel injectors and rails
• 4150-flange throttle body
• Custom distributor designed for sequential port injection
• Electronic Control Unit (ECU) with self-learning E-Tuner technology
• Complete wire harnesses and sensors
• 7-inch Android tablet for tuning and monitoring

Self-Learning E-Tuner Technology:

Calibration is simplified through an intuitive Setup Wizard that guides you through initial programming. After entering basic engine parameters such as displacement, firing order, and camshaft profile, the E-Tuner selects the optimal base calibration. The self-learning system then continuously refines the fuel map based on driving conditions, automatically compensating for changes in altitude and weather. Advanced tuning options provide precise control over cold starts and acceleration while maintaining the user-friendly operation Edelbrock Pro-Flo systems are known for.

Compatibility:

This system is compatible with factory-style AMC cylinder heads as well as Edelbrock Performer and Performer RPM cylinder heads, making it versatile for stock or modified applications.
