Product Details

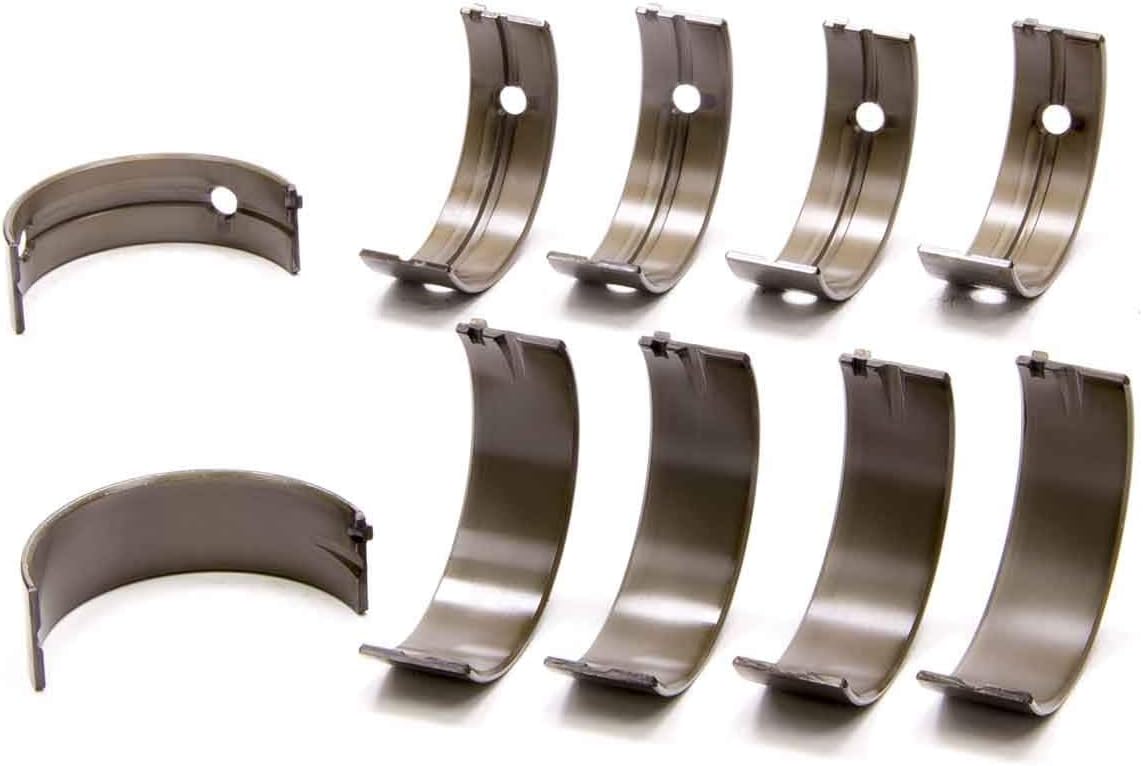

The ACL Bearings 5M1219H-STD is a high-performance Race Series main bearing set engineered with a unique combination of design, metallurgy, and advanced engineering to deliver exceptional performance in demanding motorsports applications. This tri-metal bearing set features a hardened steel backing designed to withstand high RPM conditions, high stress loads, and extreme temperatures. This standard size (STD) bearing set is specifically designed for Mitsubishi 4-cylinder engines including the 4G63, 4G63T, and 4G64. These bearings are designed for 1997+ models equipped with thrust washers.

Key Features:

  • Large chamfer to accommodate larger crankshaft fillets
  • 3/4 groove design to provide optimum oil supply to connecting rods and maximize load carrying capacity
  • Increased crush and tighter wall tolerance for better seating
  • Improved overlay with reduced thickness for increased fatigue strength
  • Elimination of flash plating on bearing backs to improve heat transfer and maximize grip in housing
  • Increased eccentricity to compensate for bore distortion at high RPM and assist in hydrodynamic oil film formation
  • Manufactured to exacting tolerances with precision machining for accurate wall thickness and consistent clearances

ACL Race Series performance engine bearings are recognized as a premier brand throughout the motorsports world, with Race Series rod and main bearings serving as standard components in race engines from sport compact drift racing to NASCAR, IHRA, and NHRA competitions. Made in Australia.

Products specifications

Max Overall Length

0.827" (21.00mm)

Max Std Shaft Size

2.2441" (57.000mm)

Max Std Tunnel Size

2.4024" (61.021mm)

Max Wall at Crown

0.0783" (1.990mm)

Min Std Shaft Size

2.2435" (56.985mm)

Min Std Tunnel Size

2.4016" (61.000mm)

Oil Clearance

Standard

Size

Standard
