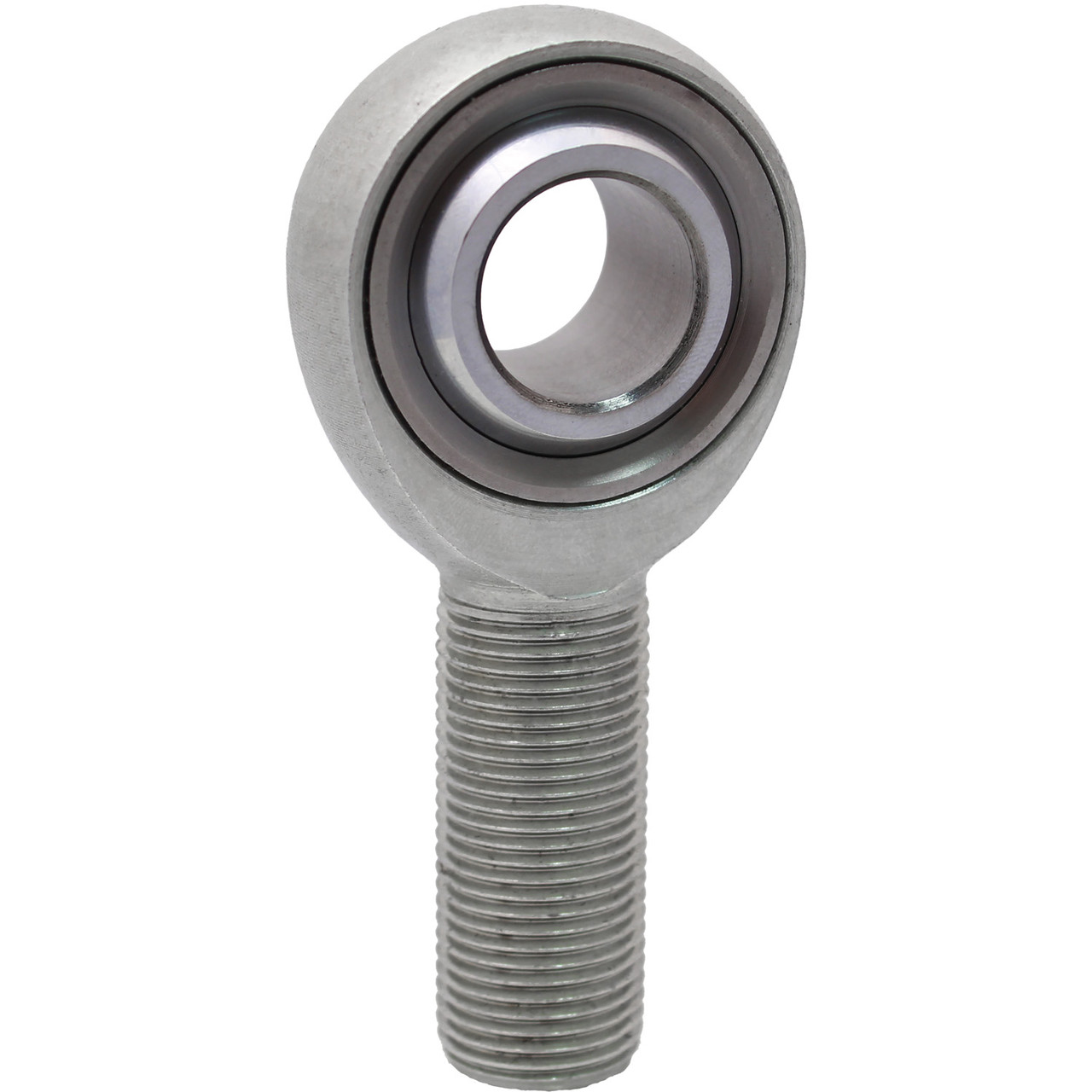

QA1 HMR12HT Heavy Duty 3-Piece Chromoly Rod End with PTFE Liner

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

HMR12HT
10 reviews
Sale Price

$49.18

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 HMR12HT is a precision-engineered H Series 3-piece alloy/chromoly male rod end featuring a self-lubricating PTFE liner designed for high-load suspension and steering applications. This heavy-duty rod end features a 3/4-inch bore and 3/4-inch-16 right-hand male thread, making it ideal for demanding motorsports and performance automotive builds.

Premium Construction:

  • Ball constructed from 52100 bearing steel, heat treated, hard chrome plated, and precision ground
  • Chromoly steel body, heat treated with protective coating for corrosion resistance
  • Self-lubricating PTFE liner for reduced friction and extended service life
  • Three-piece chromoly steel construction recommended for high load applications

Technical Specifications:

  • Bore Diameter: 3/4 inch (0.750")
  • Thread Size: 3/4"-16 RH (right-hand)
  • Thread Type: Male
  • Design: 3-piece with PTFE liner
  • Material: Heat-treated chromoly steel

The HMR12HT is commonly used in steering linkages, 4-link suspensions, ladder bars, control arms, and other high-stress suspension components where precision and durability are critical. This precision rod end is heat treated and available in right- or left-hand thread configurations. Each rod end includes a jam nut for secure installation and adjustment.

Products specifications

A (+/-0.015)

3.375

Approx Bearing Weight

0.92

B (+0.0015/-0.0005)

0.75

Ball Dia Ref

1.312

C (+0.062/-0.031)

1.875

D (+/-0.010)

2

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

12

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.875 in.

Rod End Centerline Length

3.375 in.

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.750 in.

Rod End Head Diameter

2.000 in.

Rod End Head Width

0.875 in.

Rod End Material

Chromoly

Rod End Misalign Angle (degrees)

12 degrees

Rod End Static Load Capacity

55,692 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

3/4-16 RH in.

T (+/-0.005)

0.687

Thread Length

1.875 in.

Thread Type

Right Hand

Thread UNF-3A

3/4 -16

UTL Radical Static

55692

W (+0.000/-0.005)

0.875
