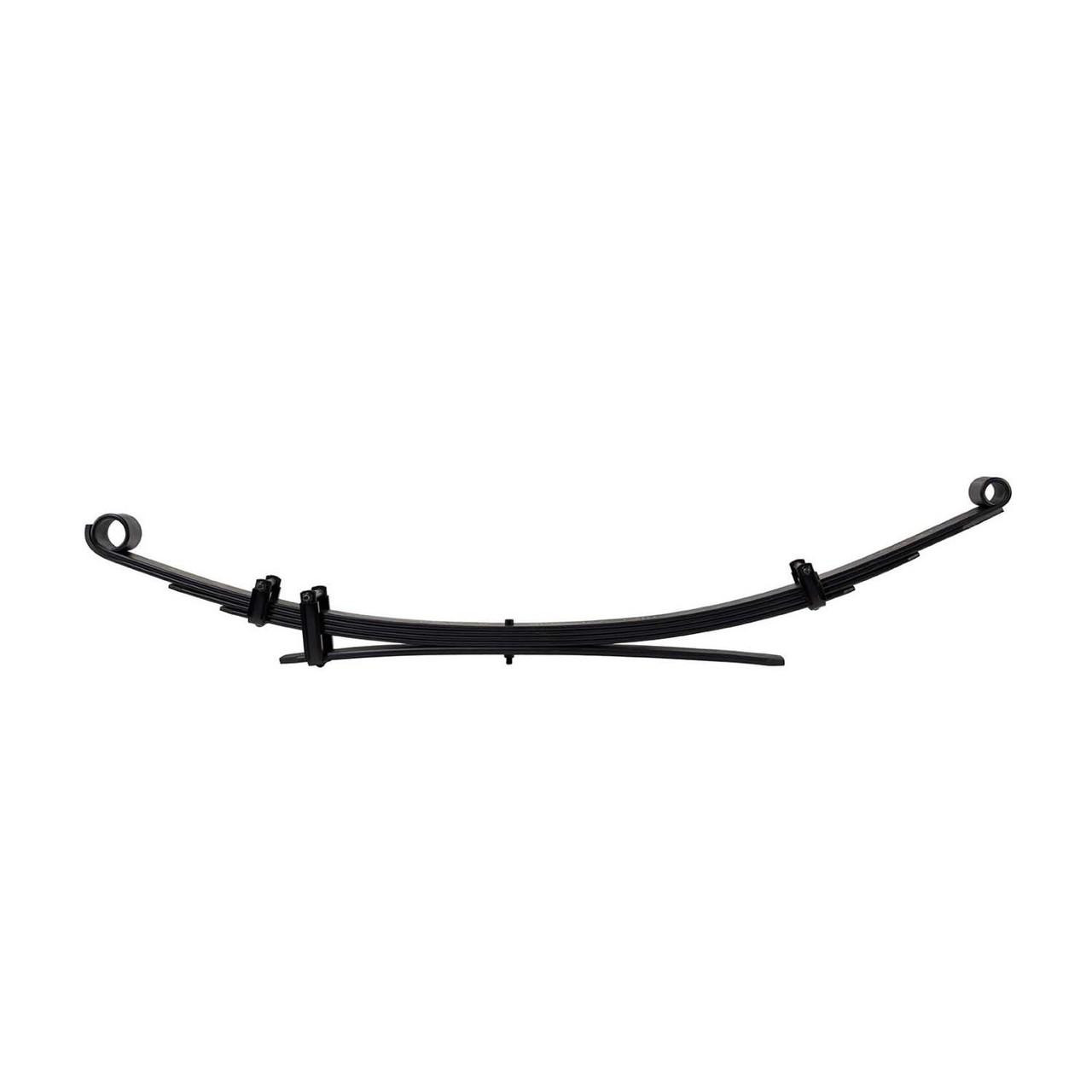

ARB CS042R Old Man Emu Dakar Rear Leaf Spring Lift - 1.5 Inch

The ARB CS042R is an Old Man Emu Dakar rear leaf spring engineered to deliver exceptional ride performance across all terrain conditions. Part of ARB's integrated 4x4 suspension systems, this spring provides a 1.5-inch lift and features medium load rating with a spring rate of 228/310 lbf/in. Sold individually.

Advanced Engineering Features:

• Draw-tapered and diamond-cut leaves progressively distribute loads over larger surface areas, reducing stress at leaf ends and significantly increasing spring life
• Bolted leaf clamps allow installation of anti-squeak nylon interleaf liners that reduce friction at leaf tips where loads are greatest
• Graphite coating further reduces friction between spring leaves and friction pads
• Military wrap design provides added safety and durability
• Flat axle seat area allows positive, safe axle mounting while reducing spring stress
• Shot peening on tension side of all leaves reduces spring stress
• Fully scragged and load tested to prevent sagging and ensure specification compliance

Performance Benefits:

Available in numerous spring options to suit recreational or commercial applications, Old Man Emu Dakar leaf springs are designed to optimize ride quality rather than just ride height. When matched with Old Man Emu 4x4 shock absorbers, these springs deliver vastly improved ride quality, handling, and load-carrying capability for demanding off-road conditions, towing, and heavy-duty use.
