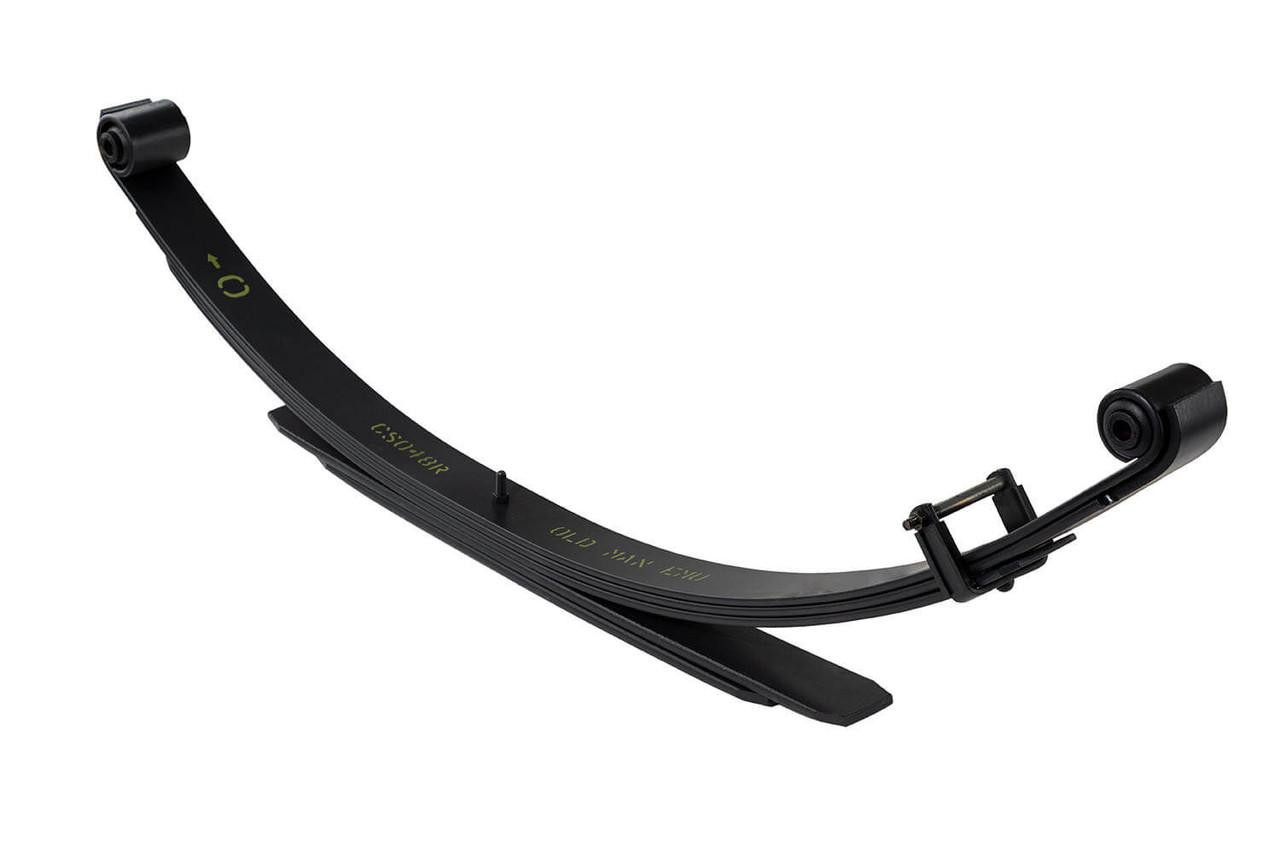

ARB CS048R Old Man Emu Dakar Rear Leaf Spring Lift - with 2 Inch

The ARB CS048R is part of the Old Man Emu Dakar leaf spring series, engineered as an integral component of ARB's integrated 4x4 suspension systems. This rear leaf spring is designed to deliver optimum ride performance regardless of operating conditions, from recreational off-roading to heavy commercial applications.

Key Features:

• 2-inch lift height for improved ground clearance
• Draw-tapered and diamond cut leaves reduce high stresses at leaf ends
• Spring rate: 225/416 lbf/in (medium load capacity)
• 3+2 leaf configuration with 50mm stack height
• Military wrap design provides added safety against leaf breakage
• Re-greasable nylon interleaf anti-friction pads reduce friction at leaf tips
• Bolted leaf clamps allow installation of anti-squeak nylon liners
• Flat axle seat area ensures positive, safe axle mounting and reduces spring stress
• Fully scragged to reduce risk of sagging over time
• Load tested to ensure spring meets required specifications
• Shot peened to reduce spring stress and increase spring life
• 40mm eye diameter (front and rear)
• 275mm primary free camber
• Black powder-coated steel construction

When paired with Old Man Emu 4x4 shock absorbers, this Dakar leaf spring delivers vastly improved ride quality, handling, and load carrying capability. Sold individually. Designed and manufactured by ARB in Australia to withstand the most demanding off-road conditions.
