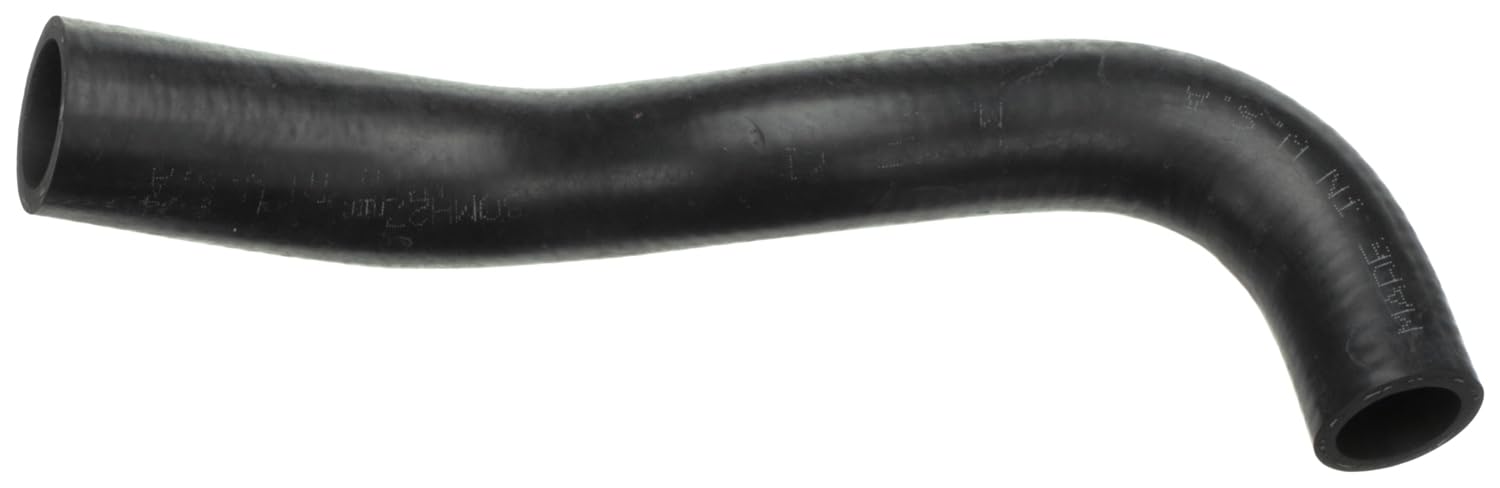

Gates 24377 Molded Coolant Radiator Hose

The Gates 24377 Molded Coolant Hose is an OEM-quality replacement radiator hose engineered to deliver reliable performance in demanding cooling system applications. This pre-shaped molded hose is manufactured from premium EPDM rubber with synthetic fiber knit reinforcement, providing superior resistance to heat, ozone, and chemical coolants.

Key Features:

• Centerline length: 13-1/4 inches (336mm)
• End 1 inside diameter: 1-1/16 inch (27mm)
• End 2 inside diameter: 1-5/16 inch (33mm)
• EPDM rubber construction with heat- and ozone-resistant cover
• Temperature range: -40°F to +257°F (-40°C to +125°C)
• Engineered to resist electrochemical degradation, the leading cause of hose failure
• Specifically-designed materials resist collapse under vacuum conditions
• Pre-shaped to ensure proper fit and perfectly sealed connections
• Meets SAE 20R4 EC Class D1 specifications

Gates molded coolant hoses are precision-manufactured to fit upper, lower, bypass, heater, and other coolant applications with factory specifications. The advanced EPDM compound resists the electrochemical degradation that occurs when hoses, coolant, and metal fittings create a galvanic reaction, significantly extending service life. Gates recommends replacing hose clamps each time a new coolant hose is installed for optimal performance. Not for use in fuel or oil transfer applications.
