JE Pistons J300F1-4135-5 Premium Race Series Piston Ring Set 4.135" Bore File Fit Single Cylinder

Manufacturer

Part Number

J300F1-4135-5
Sale Price

$28.99

Estimated ship date Tuesday, November 17

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

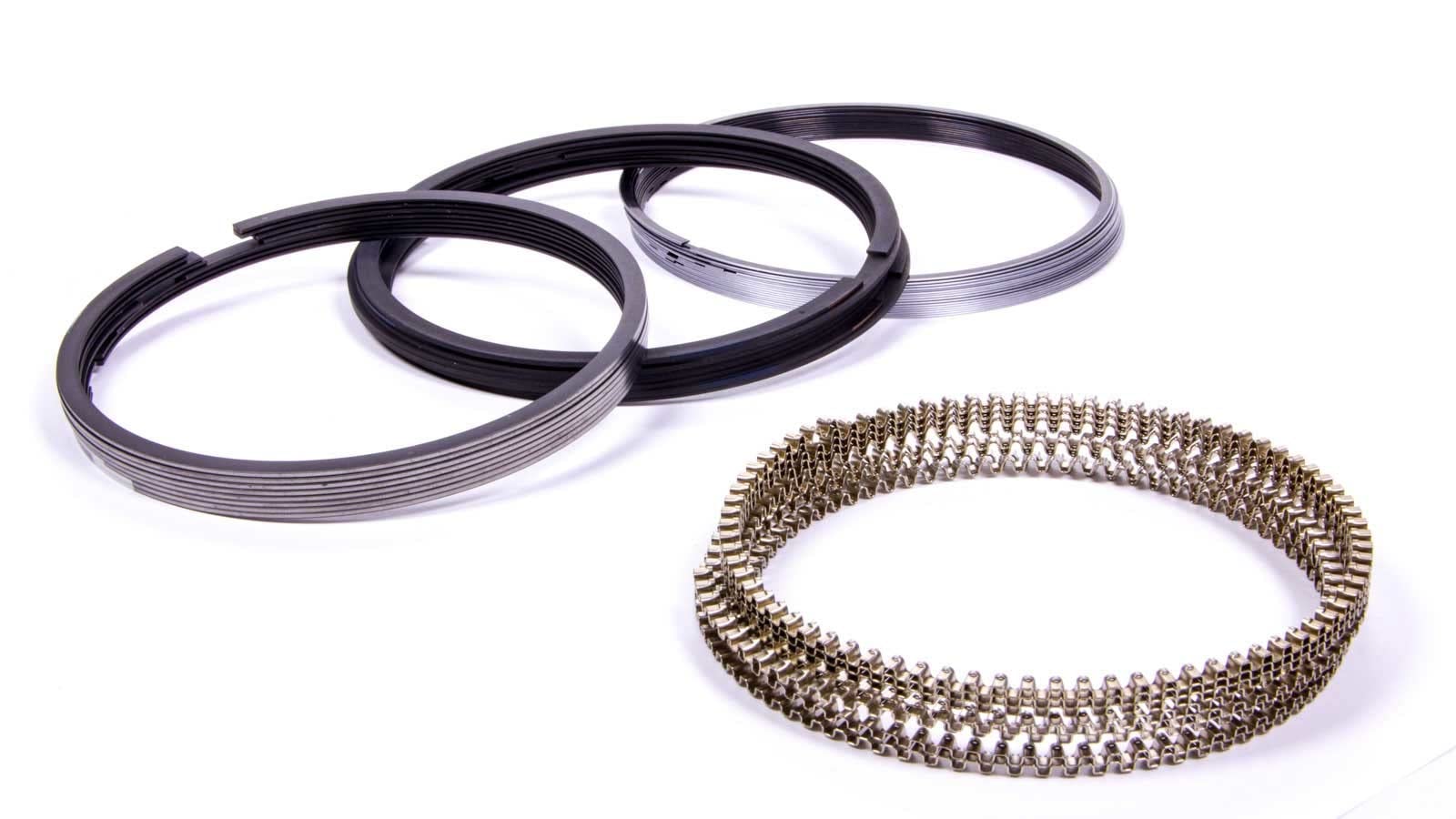

The JE Pistons J300F1-4135-5 is a single-cylinder, file-fit piston ring set from JE's Premium Race Series, engineered for a 4.135-inch bore (+0.005" oversize). Featuring a three-ring pack in traditional 1/16" × 1/16" × 3/16" ring heights, this set delivers race-proven combustion sealing for high-performance and competition engines.

The top ring is a barrel-faced ductile iron ring with a plasma-moly inlay, combining excellent bore conformity with a friction-reducing, high-velocity plasma-moly coating. The second ring uses a taper-faced, reverse torsional D-wall profile to improve oil control and sealing efficiency. The oil ring is a standard-tension three-piece design engineered for consistent radial pressure and long service life.

Key Features:

  • Bore Size: 4.135 in. (+0.005" oversize)
  • Ring Pack: 1/16" top × 1/16" second × 3/16" oil
  • Top Ring: Ductile iron with plasma-moly inlay, barrel-face profile
  • Second Ring: Taper-face, reverse torsional, D-wall design
  • Oil Ring: Standard-tension, three-piece assembly
  • Fit Type: File fit — allows custom end gap tuning
  • Quantity: Single cylinder set (rings for 1 piston)
  • Series: Premium Race Series

JE Pistons' file-fit design allows engine builders to precisely set piston ring end gaps to match specific bore sizes, engine builds, and performance goals — the preferred method used by professional race teams across NHRA Pro Stock, NASCAR, and other top motorsports series. This single-cylinder set is ideal for rebuilds, replacements, or custom engine builds where individual cylinder servicing is required.

Products specifications

File Fit

Yes

Second Compression Ring Thickness

0.064

Second Ring Facing Material

Phosphate

Second Ring Material

Iron

Third Ring Material

Carbon Steel

Third Ring Facing Material

Carbon Steel

Out of Stock Message

Call for Availability

Top Compression Ring Thickness

0.064

Top Ring Facing Material

Plasma Moly

Category Hierarchy

Accessories>Rings>Ring Sets

Oil Ring Thickness

0.118

Industry

Automotive

Top Ring Material

Ductile iron

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.135
