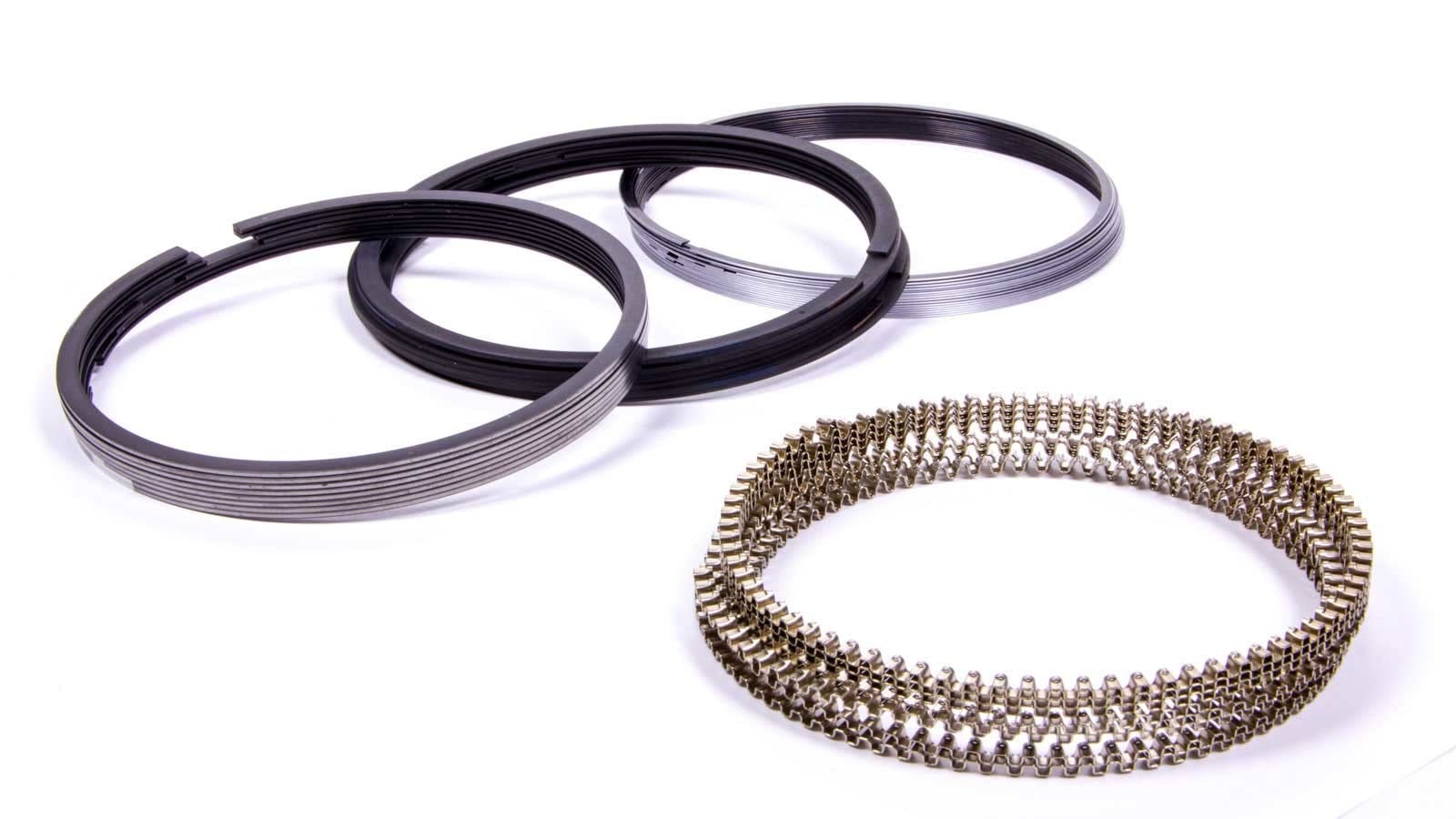

JE Pistons J926F1-4145-5 Pro Seal Piston Ring Set 4.145" Bore File Fit Single Cylinder

Manufacturer

Part Number

J926F1-4145-5
Black Friday Price

$47.99

Estimated ship date Friday, November 20

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The JE Pistons J926F1-4145-5 is a Pro Seal single-cylinder piston ring set engineered for a 4.145-inch bore with a file-fit design, allowing precise end-gap tuning for your specific application. Each set includes rings for one piston and is sold individually, making it ideal for custom engine builds, replacements, or mixed-bore configurations.

Key Features:

  • Pro Seal Series: Barrel-faced top ring constructed from premium ductile iron with a plasma-moly inlay combining molybdenum, nickel, chrome, and trace elements for superior wear resistance and reduced friction
  • File Fit Design: Rings are intentionally oversized on the end gap, allowing the engine builder to file to the exact clearance required for the specific application
  • Low-Tension Oil Ring: Carbon steel chrome oil ring reduces parasitic drag while maintaining effective oil control
  • Ring Thickness: 1/16 in. top ring, 1/16 in. second ring, 3/16 in. oil ring (1.59mm x 1.59mm x 4.76mm)
  • Single-Cylinder Set: Sold per cylinder — order the quantity needed for your engine build
  • Custom Ring Services Available: JE offers back cutting, dyke cutting, lapping, grinding, and PVD coating on their ring sets — the same processes used by top NHRA Pro Stock and NASCAR teams

JE Pistons Pro Seal rings are trusted by professional engine builders and performance enthusiasts worldwide. Designed to maximize horsepower through precision combustion pressure sealing, they are available in a wide range of bore sizes, materials, and thicknesses to suit virtually any performance or racing engine.

Products specifications

Second Ring Facing Material

Phosphate

Top Ring Material

Carbon Steel

Out of Stock Message

Call for Availability

Category Hierarchy

Accessories>Rings>Ring Sets

Second Ring Material

Ductile iron

File Fit

Yes

Top Compression Ring Thickness

0.0472

Second Compression Ring Thickness

0.0472

Third Ring Material

Carbon Steel

Third Ring Facing Material

Carbon Steel

Oil Ring Thickness

0.118

Industry

Automotive

Top Ring Facing Material

Plasma Moly

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.145
