ATS Diesel 6019002326 Co-Pilot Tow Edition Transmission Controller for 68RFE

(2011-2020 Ram 2500; 2011-2020 Ram 3500; 2007-2010 Dodge Ram 2500; 2007-2010 Dodge Ram 3500)

Manufacturer

Part Number

6019002326
Black Friday Price

$814.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ATS Diesel Co-Pilot Tow Edition Transmission Controller is a plug-and-play line pressure management system designed specifically for 2007.5-2011 Dodge 2500/3500 trucks equipped with the 68RFE automatic transmission and 6.7L Cummins diesel engine. This advanced transmission controller addresses the common failures of the factory 68RFE transmission, including inadequate line pressure, weak clutch packs, and poor torque converter lockup strategy.

Advanced Closed-Loop Control System:

Unlike simple pressure riser boxes, the Co-Pilot is a full closed-loop computer that actively monitors actual transmission line pressure and drives the EPC solenoid to maintain optimal pressure based on real-time engine load. The system reads boost pressure and throttle position to intelligently increase line pressure up to 270 PSI when needed, while maintaining near-stock comfort during light driving conditions.

Key Features:

  • 24-pin plug-and-play installation with no cutting or splicing required
  • Increases line pressure from factory 160 PSI to up to 270 PSI maximum
  • Controls line pressure, clutch timing, and torque converter lockup
  • Four adjustable settings for different power levels and driving conditions
  • In-cab controller displays line pressure, boost pressure, and throttle position
  • Dynamic pressure control prevents clutch slippage above 400 horsepower
  • Automatic pressure modulation based on engine load for smooth operation
  • More aggressive torque converter clutch application under high torque situations

System Components:

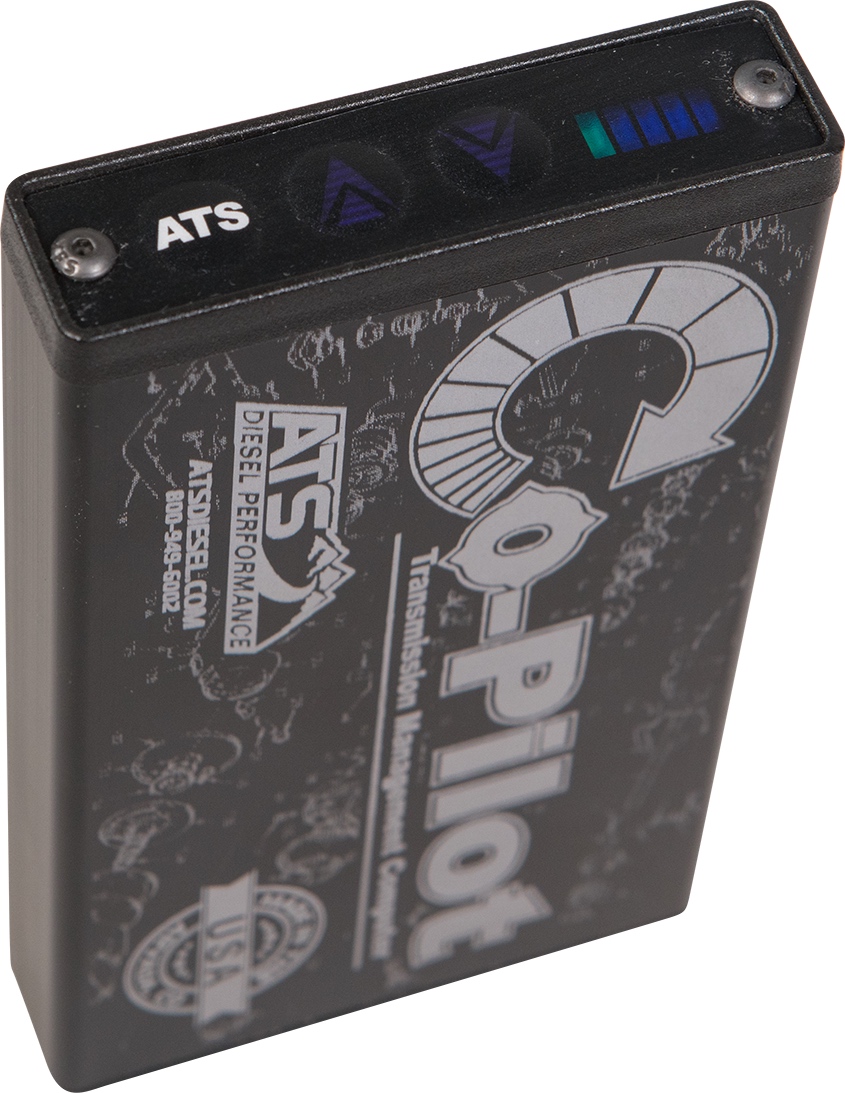

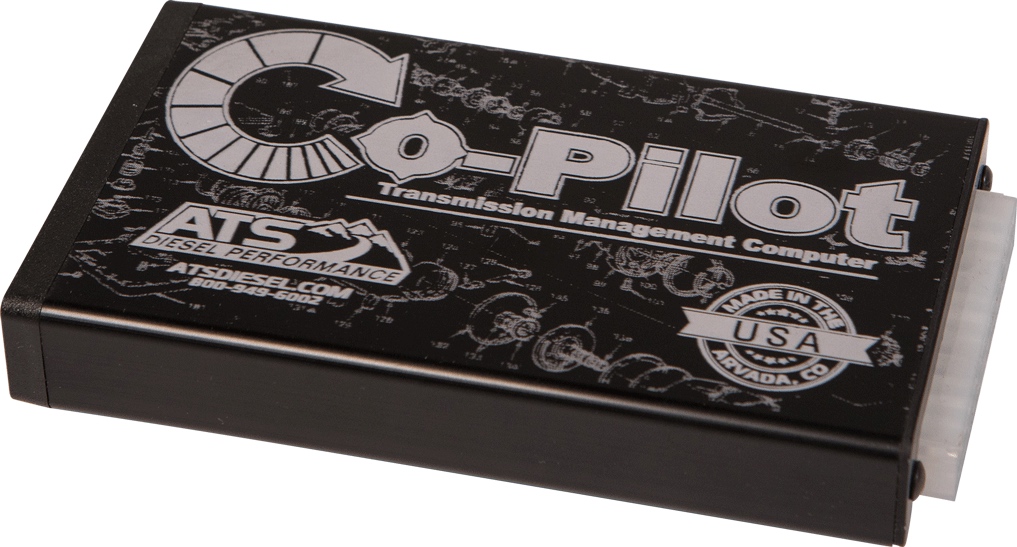

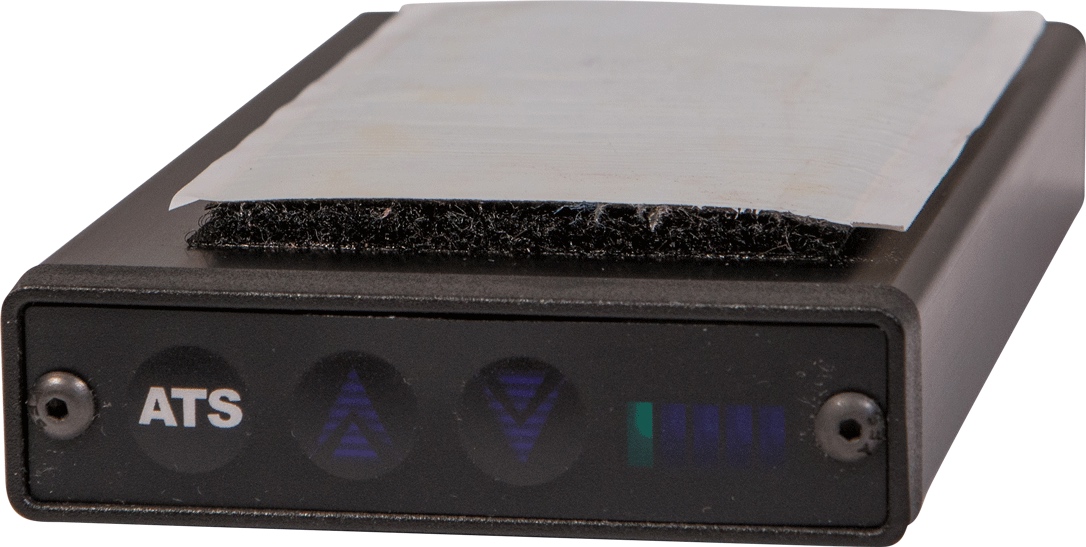

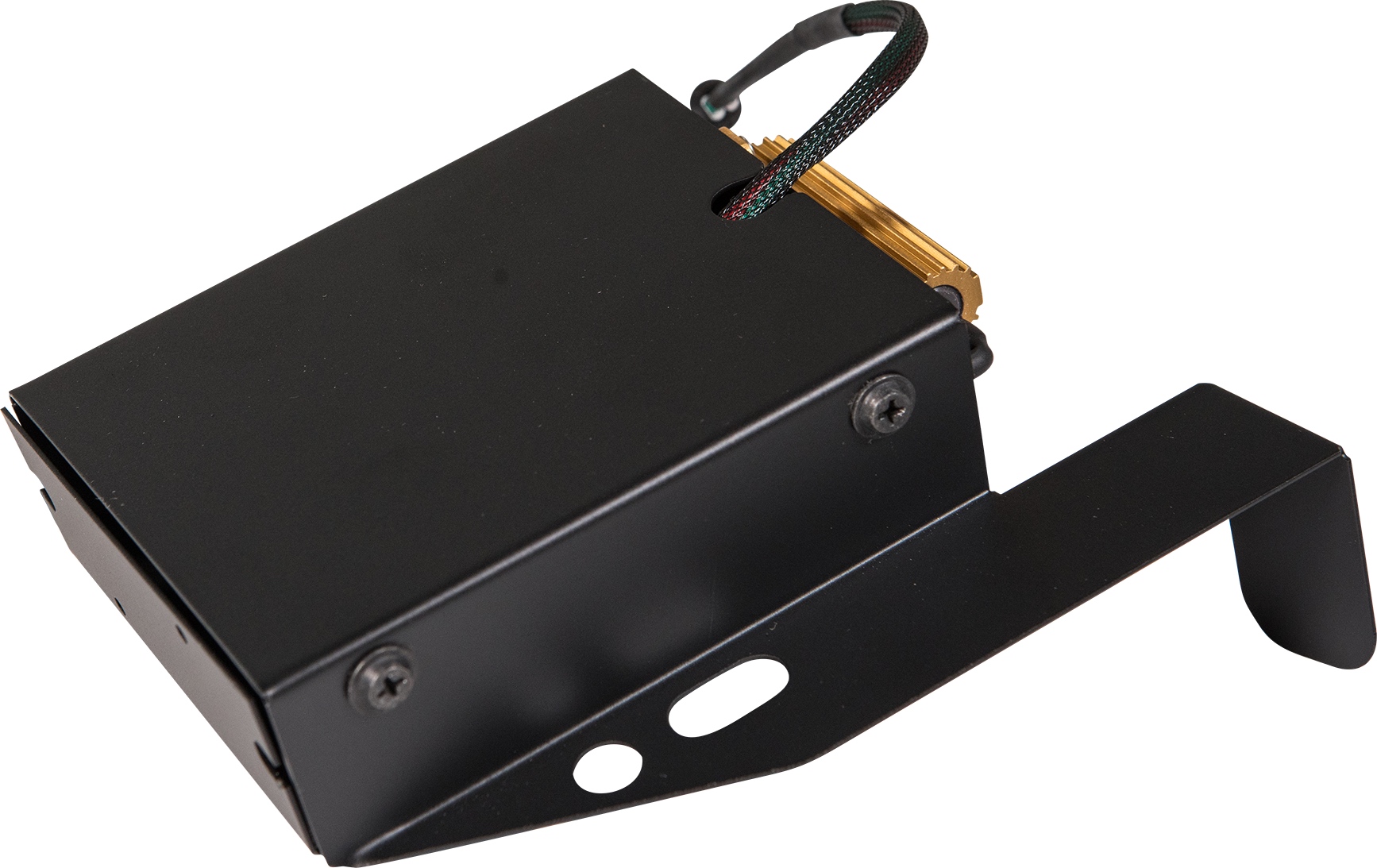

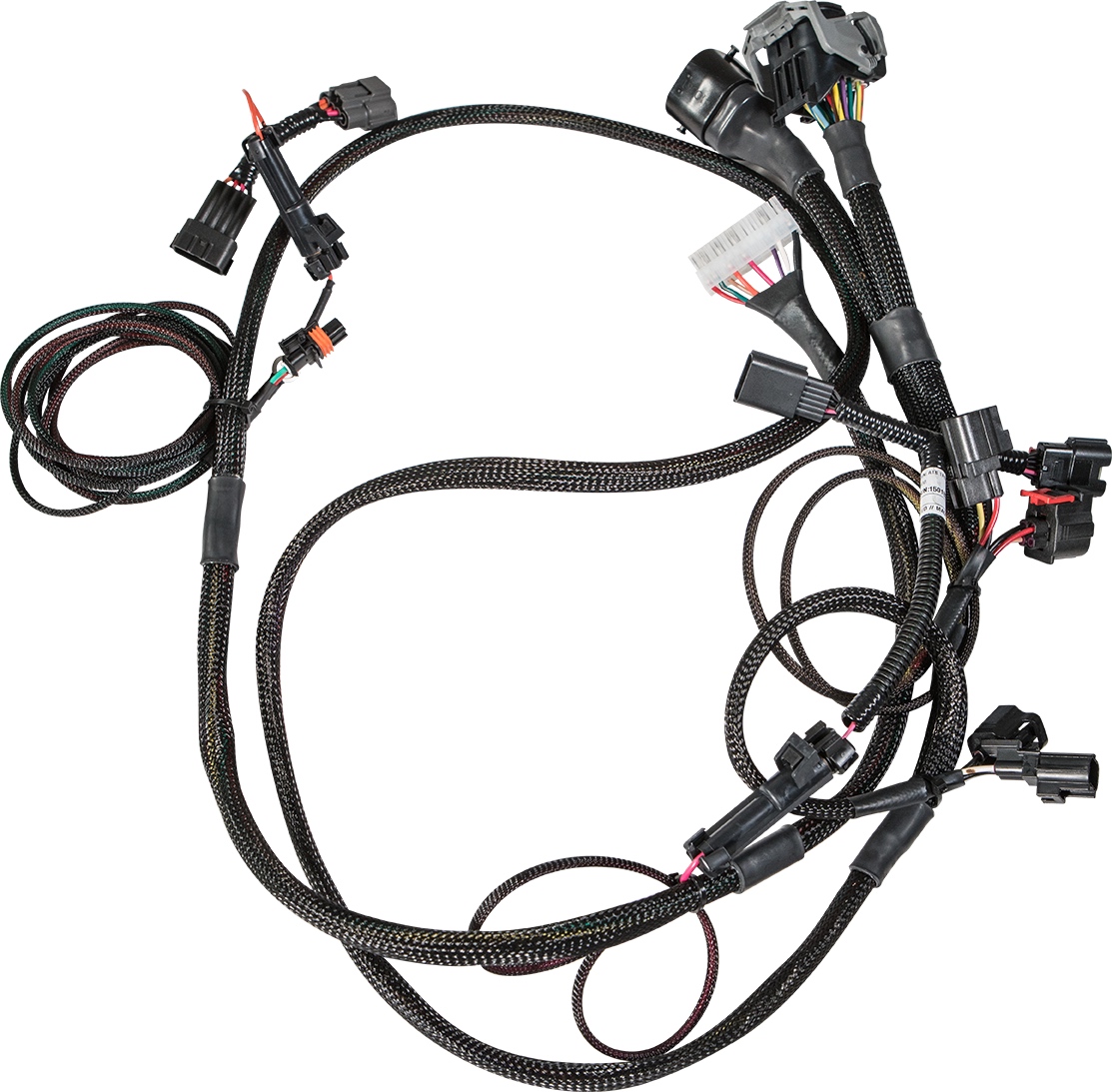

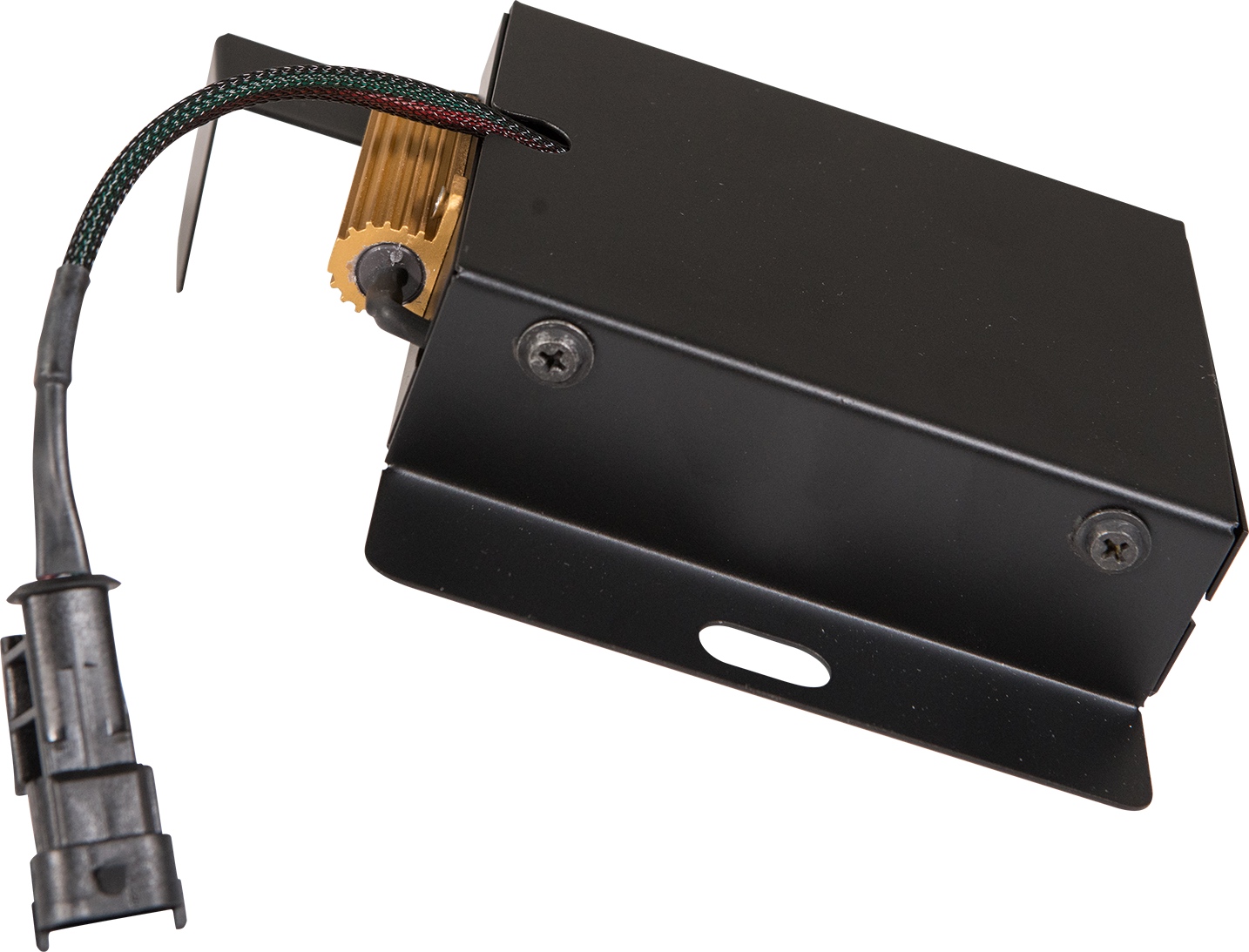

The complete kit includes a cab-mounted controller with LED display, main wiring harness with valve body connector, and a secondary electronics box that mounts to the driver's side frame rail. The controller allows you to monitor critical transmission parameters and adjust maximum line pressure settings on-the-fly using simple up/down arrow controls. The unit remembers your last setting between key cycles for convenience.

Performance Benefits:

The Co-Pilot dramatically increases transmission clutch clamping force during and after shifts, preventing the clutch slippage and premature failure common in stock 68RFE transmissions running modified engines or heavy towing applications. The optimized clutch timing programming reduces wear on clutch packs while efficiently transferring power. Installation typically takes less than one hour with all necessary hardware and instructions included.

Products specifications

Fits

2011-2020 Ram 2500; 2011-2020 Ram 3500; 2007-2010 Dodge Ram 2500; 2007-2010 Dodge Ram 3500

Application

Street

UNIVERSAL

No

Country of Origin

USA

Sold As

Kit

Prop 65

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Warranty

1-Year Limited Warranty

Harmonized Tariff Code

8708.40.hh

NAFTA

B

Series

Tow Edition
