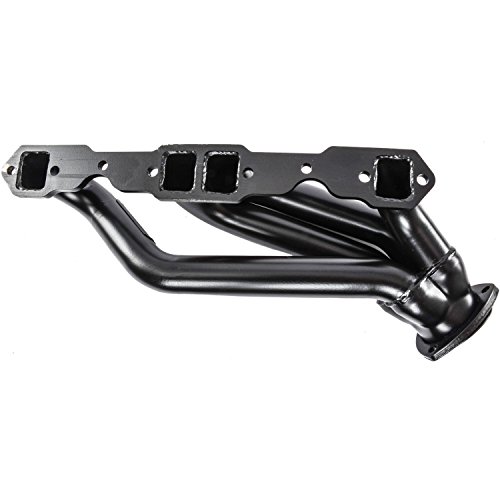

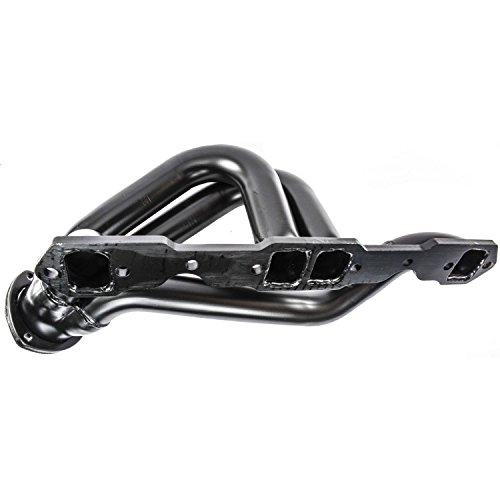

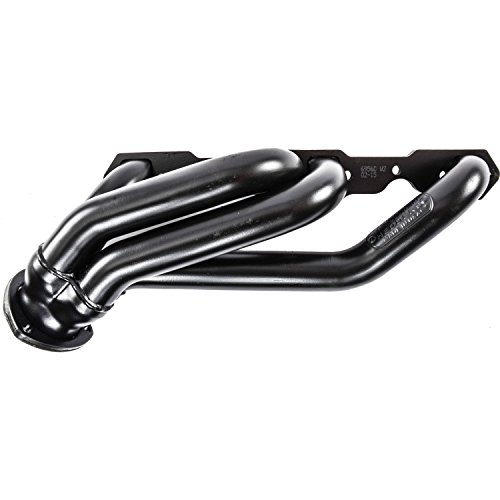

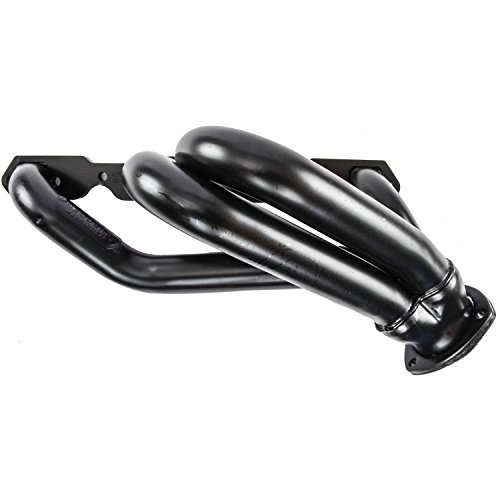

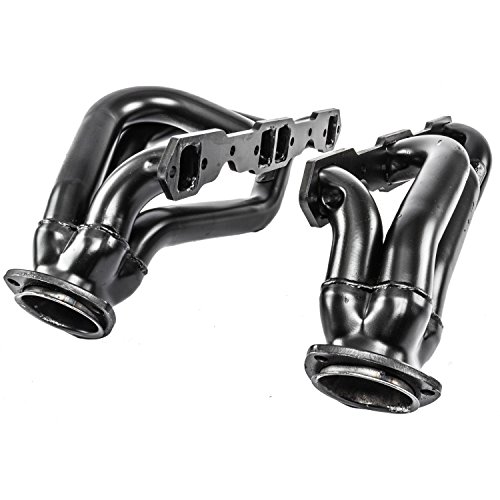

Hedman Hedders 69560 S10 Small Block Chevy Engine Swap Headers 1-3/4" Mid-Length Uncoated

(1982 GMC Jimmy Street Coupe)

Manufacturer

Part Number

69560
Sale Price

$438.08

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Hedman Hedders 69560 is a premium mid-length tube exhaust header system designed specifically for Small Block Chevy engine swaps into 1982-2004 Chevrolet S10/Blazer and GMC S15/Jimmy 2WD trucks. These headers are engineered to fit Gen 1 Small Block Chevy engines (283-400 cubic inches) and are compatible with both manual and automatic transmissions.

Key Features:

  • 1-3/4" diameter CNC mandrel bent primary tubes for maximum exhaust flow and power gains
  • 3" collector outlets with included reducers for easy exhaust system integration
  • Hand-welded mild steel construction with 1/4" thick mounting flanges for leak-proof sealing
  • Mid-length tube design delivers significantly more low and mid-range power than cast manifolds while providing better ground clearance than long tube headers
  • Round port configuration designed for straight plug cylinder heads
  • Uncoated finish with temporary black paint that burns off during normal operation

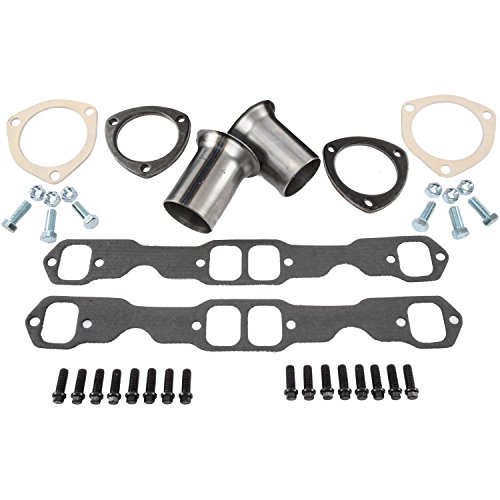

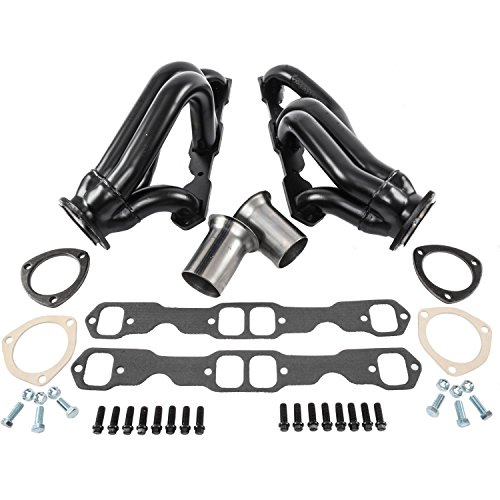

  • Includes headers, gaskets, 3-bolt exhaust adapters, and all necessary mounting hardware

Hedman Hedders has been manufacturing quality exhaust systems in the USA since 1954. Each header is handcrafted with precision-bent tubes and backed by a Limited Lifetime Warranty on construction. These headers optimize exhaust flow to help your transplanted Small Block Chevy breathe easier and produce additional horsepower and torque over factory manifolds.

Important Notes: Not legal for street use on 1975 and later model year vehicles. Legal for off-road and racing use only. 2WD applications only. Optional motor mount kit (Part #9906) available separately.

Products specifications

Fits

1982 GMC Jimmy Street Coupe

Bolts/Studs Included

Yes

Cylinder Head Port Shape

Square

Drivetrain

2WD Only!

Finish

Uncoated

Flange Style

Standard

Header Fasteners Included

Yes

Motor Mounts Included

No

Quantity

Sold as a pair.

Reducers Included

Yes

Tuned

No

Weld-Up

No

Y-Pipe Included

No

Emissions Notes

NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.

Header Material

Mild Steel

Header Style

Mid-Length Tube

With EGR

No

Power Steering

Yes

FLANGE Thickness

0.3125 In.

Primary Tube Gauge

16g

Tube Material Thickness

16g

Head Type

Factory Heads

Tube Style

MID-LENGTH

Tube Length

Mid-Length Tubes

Automatic Transmission - Column

No

E.O. #

No

with A.I.R. System

No

Crossover Pipe Included

NO

Catalytic Converter(s) Included

No

Manual Transmission - Column

No

Header Finish

Uncoated

Prop 65

WARNING: Cancer. For more info visit www.P65Warnings.ca.gov

Automatic Transmission - Floor

Yes

Manual Transmission - Floor

Yes

Air Conditioning

Yes

Material

Mild Steel

Mounting Hardware Included

Yes

Gasket Or Seal Included

Yes

Installation Hardware Included

Yes

Port Shape

Square

Collector Attachment

3 in.

Collector Diameter

3 in.

Collector Size

3 in.

Collector Style

3-Bolt Gasket Style Flange

Exhaust System Dia

3 in.

Primary Tube Diameter (in)

1.75 in.

Tube Diameter

1-3/4 in.

Tube Size

1-3/4 in.

Reducer Outlet Size

3 in.

Collector Bolts Included

Yes

Contents

headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware

Cylinder Head

Stock Profile Heads

Engine

Chevy SB 283-400 (Gen 1) 1958-86

Finish Type

UNCOATED Mild Steel! Shipped with Temporary Paint.

Header Port Shape

Square Port

Tube Design

Standard

Replacement Gasket

27560

Replacement Head Flange Gasket

27560

Header Construction

MILD STEEL- Standard-Duty

Package Contents

Headers, reducers (exhaust adapters), gaskets, mounting hardware

Notes

(Straight plug cylinder heads ONLY!)

Product Details

Motor Mount Kit available. Part # 9906

Title

HEDMAN HEDDERS S10 / SB CHEVY ENGINE SWAP HEADERS 1-3/4 IN.- UNCOATED
