Wiseco K615M865AP Toyota 3SGTE Forged Piston Kit 86.5mm +0.5mm Oversize Turbo

Manufacturer

Picture for manufacturer Wiseco Pistons

Part Number

K615M865AP
11 reviews
Sale Price

$827.99

In Stock (9)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

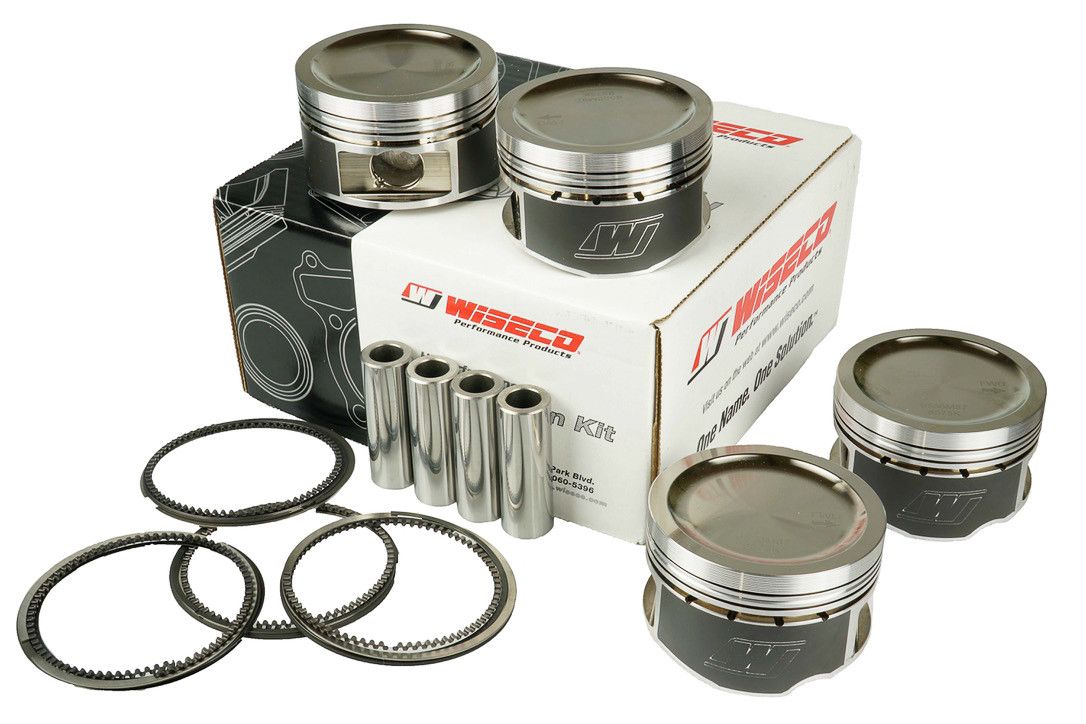

The Wiseco K615M865AP is a complete forged piston kit engineered for the Toyota 3S-GTE 2.0L 16-valve turbocharged engine. Featuring an 86.50mm bore (+0.5mm oversize) and a -6cc dished crown, this kit is purpose-built for boosted applications including turbocharged street and competition builds.

Manufactured from 2618 aluminum alloy using Wiseco's advanced forging process, these pistons deliver exceptional strength, tighter tolerances, and superior heat resistance compared to cast alternatives. Each piston features Wiseco's ArmorGlide® anti-friction skirt coating to minimize cylinder wall friction and reduce scuffing during break-in.

Key Features:

  • Bore: 86.50mm / 3.405" (+0.5mm / +0.020" oversize)
  • Stroke: 86mm / 3.386"
  • Rod Length: 138mm / 5.433"
  • Compression Height: 35mm / 1.378"
  • Piston Volume: -6.0cc dished crown
  • Compression Ratio: 8.96:1
  • Wrist Pin: 22mm (.866") floating pin — Part #S625 (included)
  • Wrist Pin Length: 2.500"
  • Piston Material: 2618 forged aluminum alloy
  • Skirt Coating: ArmorGlide® anti-friction coating
  • Ring Pack: 1.0mm top compression / 1.2mm second compression / 2.8mm oil ring
  • Ringset: Part #8650XX (included)
  • Average Piston Weight: 364g

Kit Includes:

  • Piston rings (ringset #8650XX)
  • Wrist pins (pin #S625)
  • Wrist pin locks / clips

Precision ring grooves are CNC-machined to exacting tolerances for maximum ring seal, minimizing blow-by and oil consumption. Generous valve pocket design ensures maximum flow around the valves in the 4-valve-per-cylinder head. All pistons are engineered, forged, and machined at Wiseco's manufacturing facility in Mentor, Ohio, USA.
