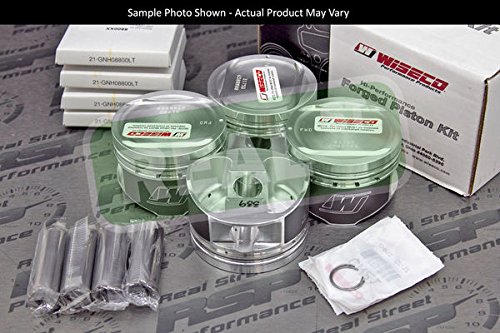

Wiseco K625M86AP 1400HD Mitsubishi 4G63 Turbo Forged Piston Kit -14cc 86mm Bore

Manufacturer

Picture for manufacturer Wiseco Pistons

Part Number

K625M86AP
14 reviews
Sale Price

$958.99

Estimated ship date Friday, November 20

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco K625M86AP is a 1400HD forged piston kit engineered specifically for the 1st Gen 6-bolt Mitsubishi 4G63 turbocharged engine. Featuring an 86.00mm (3.386 in.) bore with a -14cc dish, this kit is purpose-built for high-horsepower forced-induction builds and is compatible with E85 fuel.

Key Specifications:

  • Bore: 86.00mm / 3.386 in.
  • Stroke: 88mm / 3.465 in.
  • Compression Height: 35mm / 1.378 in.
  • Pin Diameter: 22mm (0.866 in.) — .225" wall tool steel wrist pins included
  • Head Volume: -14cc dish
  • Block Height: 229mm
  • Material: 2618 aerospace-grade aluminum alloy
  • Application: Mitsubishi 4G63 1st Gen 6-bolt, stock stroke

Key Features:

  • ArmorGlide® Skirt Coating — reduces friction and noise for improved efficiency and power output
  • Gas Nitrided Top Ring — optimized for turbocharged, high-boost applications
  • Napier 2nd Ring — provides excellent oil control under extreme conditions
  • Precision ring grooves with anti-detonation groove and enhanced ring seal features
  • Forced pin oiling for superior lubrication at high RPM
  • Specially designed valve pockets to accommodate oversized valves and high-lift camshafts
  • Optimized piston crown promotes intake charge efficiency through cross-flow scavenging
  • Engineered, forged, and machined in the USA at Wiseco's Mentor, Ohio facility

The 1400HD series was developed specifically for extreme high-horsepower 4G63 applications. The 2618 aluminum alloy forging delivers superior tensile strength and impact resistance compared to cast or billet alternatives, making it the preferred choice for heavily turbocharged DSM and Mitsubishi builds. The kit includes pistons, rings, and wrist pins — everything needed to complete your bottom-end assembly.
