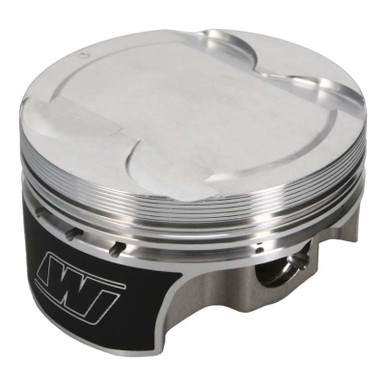

Wiseco K0085X2 Ford 5.0L Coyote Forged Piston Set 3.650 in. Bore +2.0cc Professional Series

The Wiseco K0085X2 is a Professional Series forged piston set designed for the Ford DOHC V8 5.0L Coyote 4-valve engine.

Engineered, forged, and precision-machined in the USA from 2618 aluminum alloy for superior tensile strength and thermal fatigue resistance, these pistons are built to handle the demands of heavy to severe duty race builds. The in-board forging and strutted skirt design provide exceptional rigidity under extreme cylinder pressures.

Key Features:

• Bore: 3.650 in.
• Dome Volume: +2.0cc
• Compression Height: 1.176 in.
• Pin Diameter: 0.866 in.
• Top Ring Down: 0.300 in.
• Material: Forged 2618 high-strength aluminum alloy — engineered and machined in the USA
• ArmorGlide® Skirt Coating: Reduces friction, improves wear resistance, and allows for tighter piston-to-wall clearances
• GNX Ring Set Included: Gas nitrided steel top ring, Napier 2nd ring, and 3-piece oil ring for superior sealing and oil control
• Compatible Applications: Naturally aspirated, turbo/supercharged (boost), and nitrous oxide
• Designed to accommodate reluctor rings on stroker cranks without pin boss notching
• Thick skirts and struts for maximum structural integrity under high load

The Wiseco K0085X2 Professional Series piston set delivers custom-level performance and durability right out of the box. Whether building a high-boost street/strip motor or an all-out race engine, these pistons provide the reliability and precision needed to push the limits of the Ford Coyote platform.
