Weld Racing Wheels 96-510208 ProStar 15x10 Polished Aluminum Drag Wheel 5x4.5

Part of: Weld Racing Wheels Prostar Aluminum Wheel

Other options in this family: Weld Racing Wheels 96-54272 Weld Racing Wheels 96-57278 Weld Racing Wheels 96-512212 Weld Racing Wheels 96-54200 Weld Racing Wheels 96-514208

Manufacturer

Picture for manufacturer Weld Racing Wheels

Part Number

96-510208
12 reviews
Sale Price

$465.00

Estimated ship date Wednesday, November 25

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Show details for Weld Racing Wheels 96-510208 ProStar 15x10 Polished Aluminum Drag Wheel 5x4.5

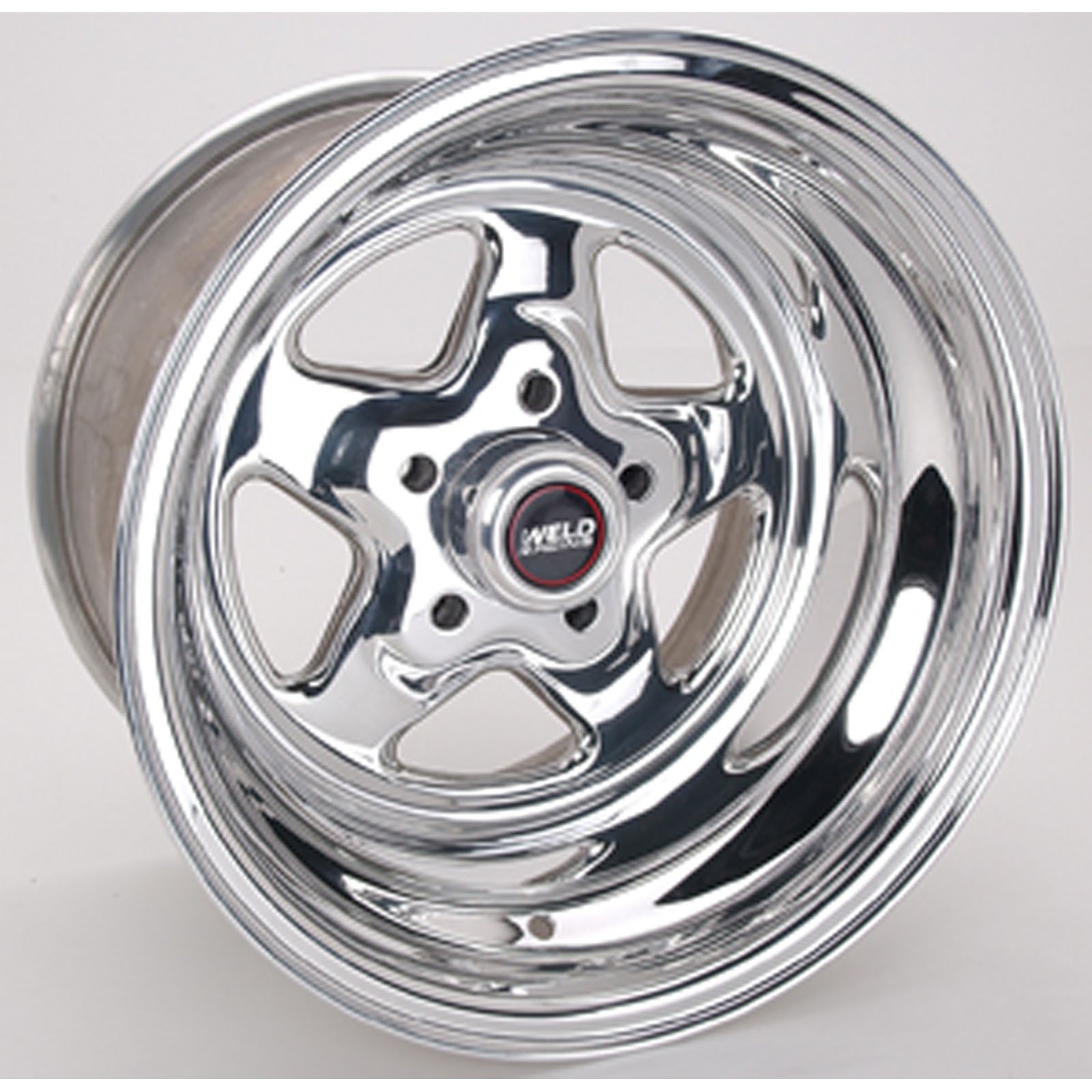

Picture of Weld Racing Wheels 96-510208 ProStar 15x10 Polished Aluminum Drag Wheel 5x4.5

Wheels and Tires sold separately

Weld Racing Wheels 96-510208 ProStar 15x10 Polished Aluminum Drag Wheel 5x4.5 — image 1
Weld Racing Wheels 96-510208 ProStar 15x10 Polished Aluminum Drag Wheel 5x4.5 — image 2
Product Details

The Weld Racing ProStar 96-510208 is a classic five-spoke polished aluminum drag racing wheel that combines iconic styling with proven performance. This 15x10 wheel features two-piece cold-forged aluminum construction that delivers superior strength while being up to 40 percent lighter than comparable race wheels, making it an ideal choice for muscle cars and street/strip applications.

Key Features:

  • 15-inch diameter x 10-inch width with 5x4.5-inch (5x114.3mm) bolt pattern
  • 4.5-inch backspacing with -25mm offset for aggressive deep-dish appearance
  • Two-piece cold-forged and welded construction for maximum strength-to-weight ratio
  • Mirror-like polished finish on both center and shell
  • Guaranteed tubeless design with included aluminum push-through center cap
  • 3.180-inch center bore diameter
  • Made in Kansas City, USA

The ProStar is one of the longest-produced five-star drag racing wheels in history, earning its reputation in NHRA Pro Stock before becoming a favorite on the street. This wheel is rated for drag racing use up to 8 seconds and 160 mph. Requires mag-style lug nuts with 1.310-inch to 1.380-inch shank length. Sold individually.

Note: Designed for drag racing use only on vehicles under 4,800 GVW with tires under 31 inches. Due to inner barrel construction, some aftermarket brake kits may require modification for proper fitment and clearance.

Products specifications

Backspacing (in)

4.500 in.

Beadlock Functional

No

Beadlock Included

No

Center Bore Diameter (in)

3.180 in.

Center Cap Included

Yes

Hub Centric

No

Lug Nut Seat Style

Shank

Lug Nut Shank Diameter (in)

0.679-0.687 in.

Lug Nut Shank Length (in)

1.300-1.380 in.

Manufacturers Wheel Series

Weld Racing Prostar Series

Notes

The factory warranty will become void if used on any type of sports racing, road race, solo, 4WD, off-road, towing, vehicles exceeding 4,800 GVW, or the use of 31 in. or taller tires.

Offset

-25.00mm

Offset (mm)

-25.00mm

Primary Wheel Color

Polished

Quantity

Sold individually.

Valve Stems Included

Yes

Washer Outside Diameter (in)

1.250 in.

Wheel Bolt Pattern

5 x 4 1/2 in.

Wheel Construction

2-piece

Wheel Diameter

15 in.

Wheel Finish

Polished

Wheel Material

Aluminum

Wheel Width (in)

10.00 in.
