Weld Racing 96-514278 Prostar 15x14 Drag Racing Wheel Polished Aluminum 5x4.75

Part of: Weld Racing Wheels Prostar Aluminum Wheel

Other options in this family: Weld Racing Wheels 96-54272 Weld Racing Wheels 96-57278 Weld Racing Wheels 96-512212 Weld Racing Wheels 96-54200 Weld Racing Wheels 96-514208

Manufacturer

Picture for manufacturer Weld Racing Wheels

Part Number

96-514278
9 reviews
Sale Price

$565.00

Estimated ship date Friday, November 27

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Show details for Weld Racing 96-514278 Prostar 15x14 Drag Racing Wheel Polished Aluminum 5x4.75

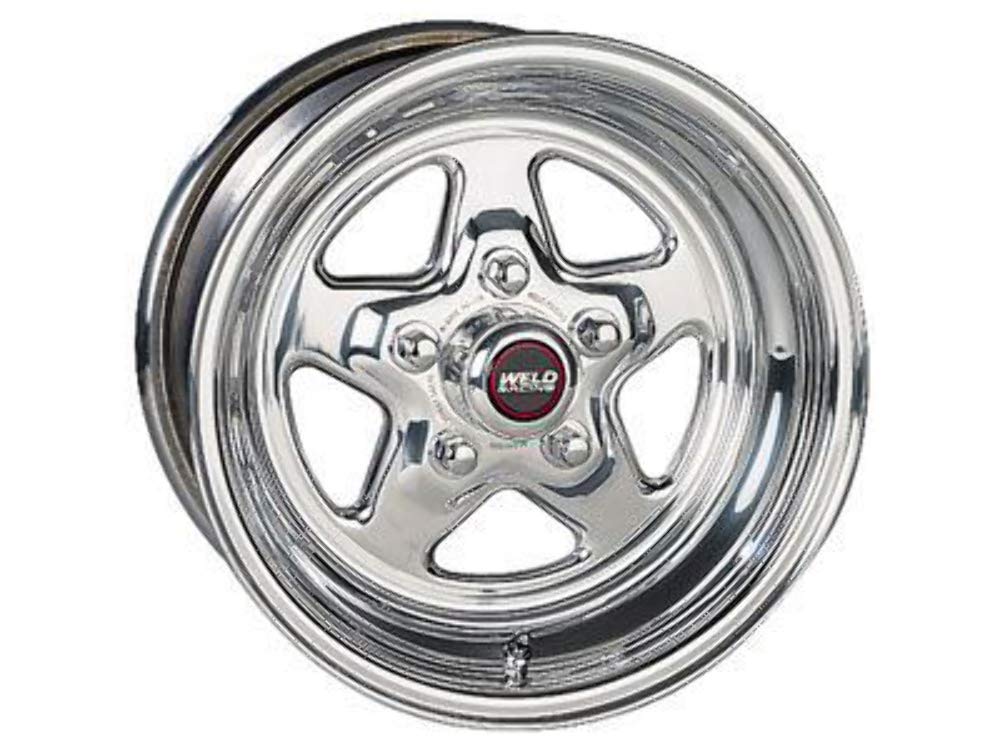

Picture of Weld Racing 96-514278 Prostar 15x14 Drag Racing Wheel Polished Aluminum 5x4.75
Picture of Weld Racing 96-514278 Prostar 15x14 Drag Racing Wheel Polished Aluminum 5x4.75

Wheels and Tires sold separately

Weld Racing 96-514278 Prostar 15x14 Drag Racing Wheel Polished Aluminum 5x4.75 — image 1
Weld Racing 96-514278 Prostar 15x14 Drag Racing Wheel Polished Aluminum 5x4.75 — image 2
Weld Racing 96-514278 Prostar 15x14 Drag Racing Wheel Polished Aluminum 5x4.75 — image 3
Product Details

The Weld Racing Prostar is one of the most iconic and longest-running five-star style drag racing wheels ever produced. Originally a staple on NHRA Pro Stock builds, the Prostar has earned its legendary status on the track and eventually found its way onto muscle cars and late-model street vehicles alike. Built to perform where it counts, this wheel combines classic styling with serious engineering.

Constructed using a two-piece cold-forged and welded aluminum design, the Prostar delivers an impressive strength-to-weight ratio — tough enough for the demands of daily driving and aggressive enough for strip duty. The polished finish gives it a clean, timeless look that complements any build.

Key Features:

  • Wheel Diameter: 15 in.
  • Wheel Width: 14 in.
  • Bolt Pattern: 5 x 4.75 in.
  • Backspacing: 4.500 in.
  • Center Bore Diameter: 3.180 in.
  • Lug Nut Seat Style: Shank
  • Lug Nut Shank Length: 1.300–1.380 in.
  • Finish: Polished Aluminum
  • Construction: Two-piece cold-forged and welded
  • Center Cap: Included
  • Valve Stem: Not included
  • Lug Nuts: Not included
  • Sold individually (Each)

Whether you're building a dedicated drag car or a high-performance street machine, the Weld Racing Prostar delivers the heritage, durability, and lightweight performance that racers have trusted for decades.

Products specifications

Application Notes

For Drag Race use only.

Backspacing (in)

4.500 in.

Beadlock Functional

No

Beadlock Included

No

Center Bore Diameter (in)

3.180 in.

Center Cap Included

Yes

Hub Centric

No

Lug Nut Seat Style

Shank

Lug Nut Shank Diameter (in)

0.679-0.687 in.

Lug Nut Shank Length (in)

1.300-1.380 in.

Manufacturers Wheel Series

Weld Racing Prostar Series

Notes

The factory warranty will become void if used on any type of sports racing, road race, solo, 4WD, off-road, towing, vehicles exceeding 4,800 GVW, or the use of 31 in. or taller tires.

Offset

-76.00mm

Offset (mm)

-76.00mm

Primary Wheel Color

Polished

Quantity

Sold individually.

Valve Stems Included

No

Washer Outside Diameter (in)

1.250 in.

Wheel Bolt Pattern

5 x 4 3/4 in.

Wheel Construction

2-piece

Wheel Diameter

15 in.

Wheel Finish

Polished

Wheel Material

Aluminum

Wheel Width (in)

14.00 in.
