QA1 AML8-10PU A-Series Aluminum Rod End 1/2in Bore 5/8-18 LH Male Thread Purple PTFE

Manufacturer

Part Number

AML8-10PU

5 reviews

Sale Price

$16.32

Estimated ship date Saturday, November 21

Check out with

No Hassle Returns

Live-in-stock inventory

Fitment guaranteed

Show details for QA1 AML8-10PU A-Series Aluminum Rod End 1/2in Bore 5/8-18 LH Male Thread Purple PTFE

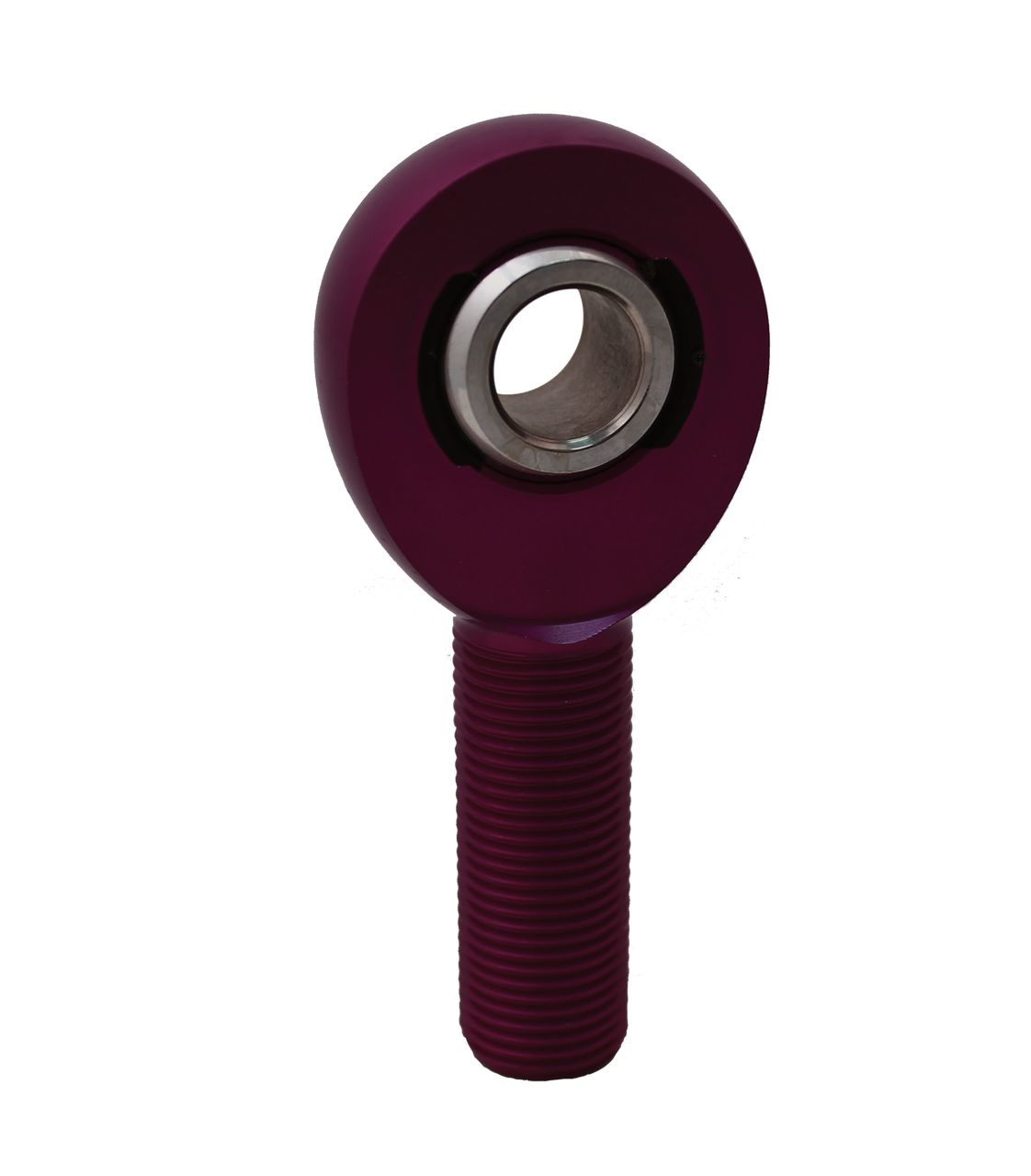

QA1 AML8-10PU A-Series Aluminum Rod End 1/2in Bore 5/8-18 LH Male Thread Purple PTFE — image 1

Product Details

The QA1 AML8-10PU is an A-Series aluminum loader slot rod end engineered for weight-sensitive performance applications. Featuring a 1/2-inch bore and 5/8-18 left-hand male thread, this rod end is finished in a distinctive purple anodize for easy identification in dual-thread suspension setups where left- and right-hand ends are used together.

Key Features:

Lightweight Aircraft Aluminum Body — over 10% lighter than traditional three-piece aluminum rod ends
Nylon/PTFE Injection-Molded Race — completely self-sealing and self-lubricating to keep dirt and debris out
52100 Bearing Steel Ball — heat treated, hard chrome plated, and precision ground for long service life
Metal-to-Metal Support — provides support under heavy shock loads
Increased Cross-Sectional Thickness — engineered for greater tensile strength
Loader Slot Design — reduces weight while maintaining structural integrity
Purple Anodized Finish — color-coded for quick left-hand thread identification
1/2 in. Bore / 5/8-18 Left-Hand Male Thread

QA1's AM-Series rod ends are the most wear-resistant aluminum rod end design available, making them an ideal choice for circle track racing, drag racing, and high-performance street builds where reduced unsprung weight and reliability are critical.

Products specifications

A (+/-0.015)

2.625

Approx Bearing Weight

0.18

B (+0.0015/-0.0005)

0.5

Ball Dia Ref

0.937

C (+0.062/-0.031)

1.625

D (+/-0.010)

1.5

Grease Fitting

Heat-Treated

Yes

Jam Nut Included

Misalign Angle

Notes

Only the rod end ball is heat-treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.625 in.

Rod End Construction

2-piece

Rod End Finish

Purple anodized

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.500 in.

Rod End Head Width

0.625 in.

Rod End Material

Aluminum

Rod End Misalign Angle (degrees)

10 degrees

Rod End Static Load Capacity

15,000 lbs.

Rod End Style

PTFE/KEVLAR® lined

Rod End Thread Size

5/8-18 LH in.

T (+/-0.005)

0.5

Thread Length

1.625 in.

Thread Type

Left Hand

Thread UNF-3A

5/8 -18

UTL Radical Static

15000

W (+/-0.005)

0.625

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
