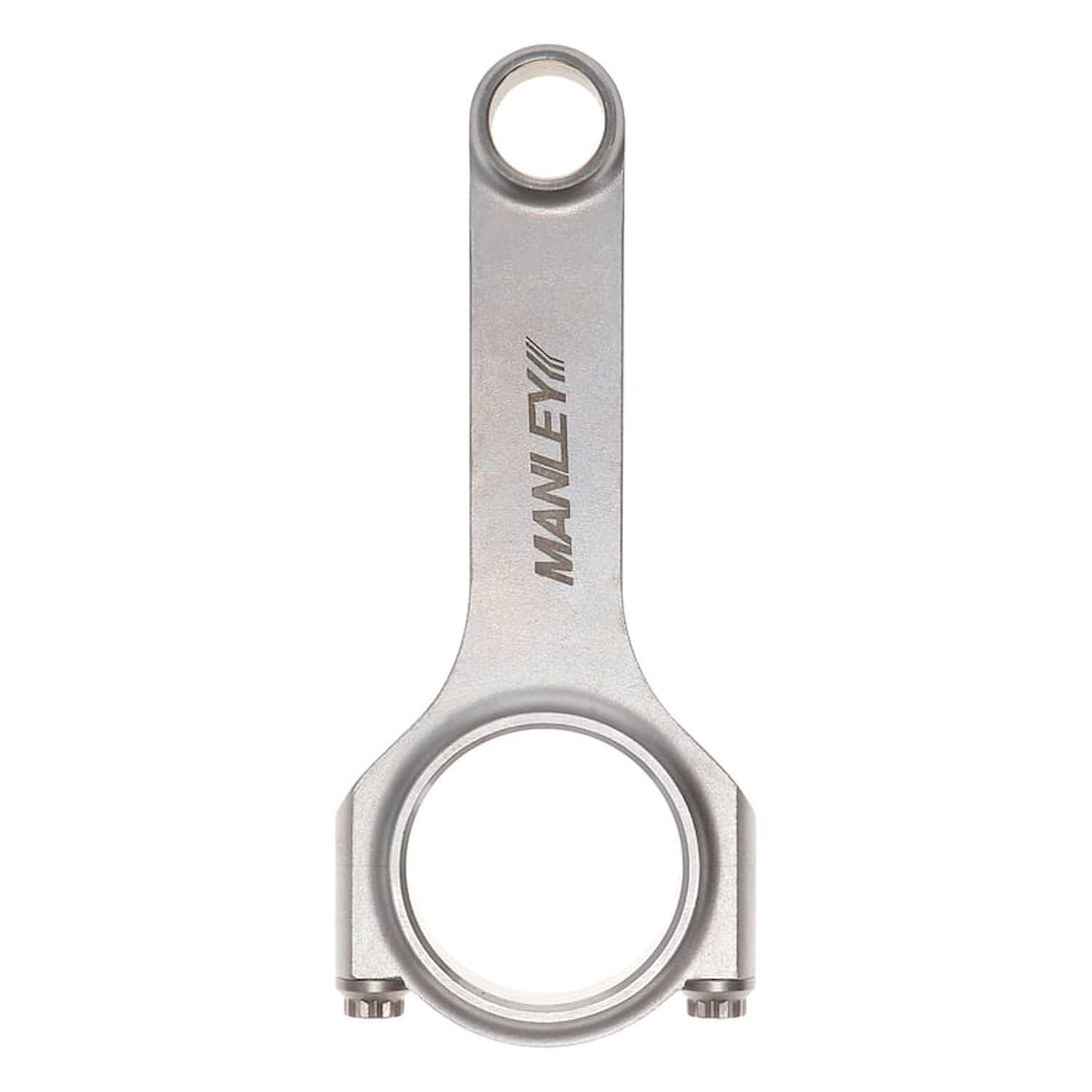

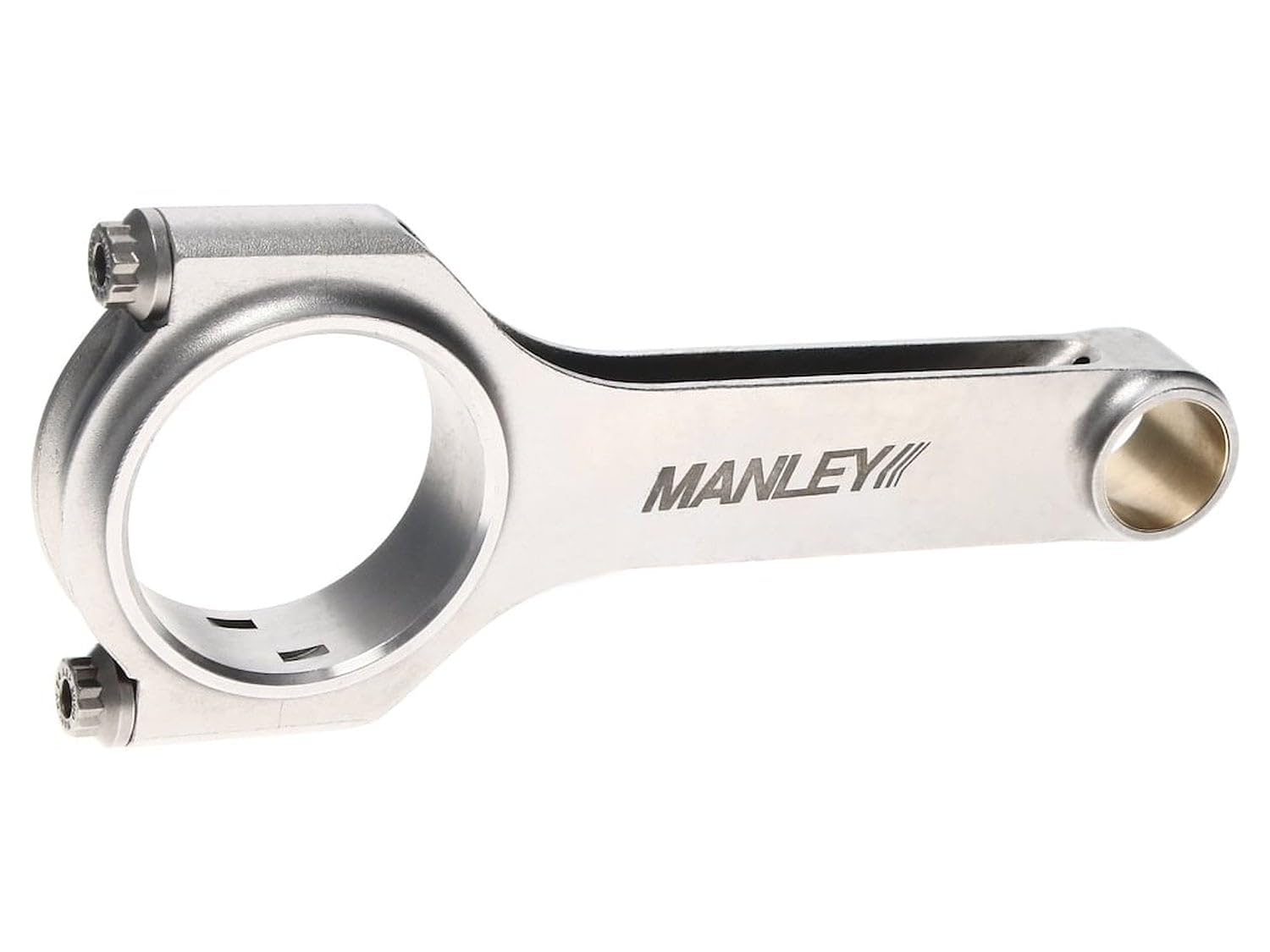

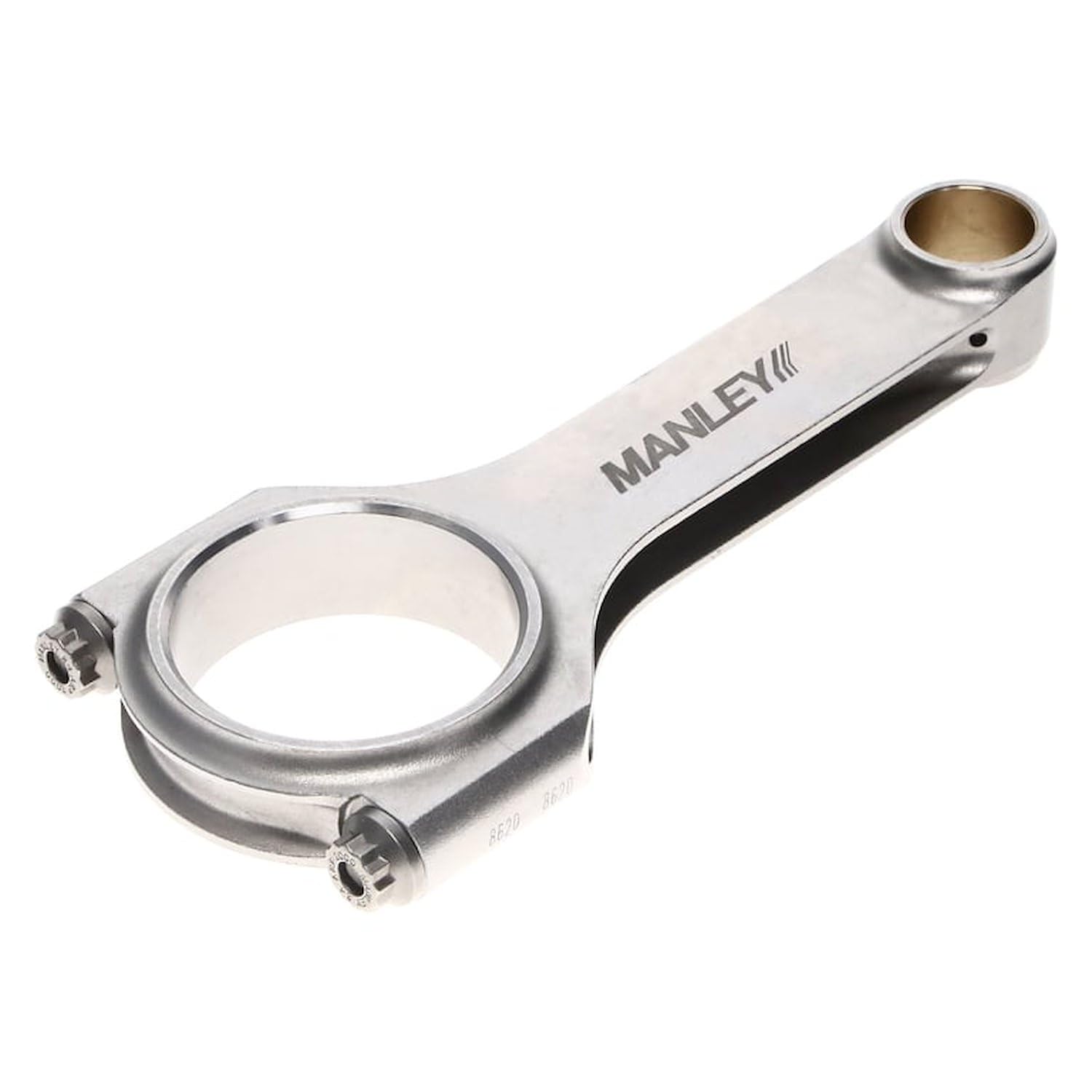

Manley 14062-8 H-Beam Connecting Rod Set Big Block Chevy 6.385in

Part of: Manley Connecting Rod

Other options in this family: Manley 14043R-1 Manley 14062R-8 Manley 14056-1 Manley 14080-1 Manley 14054R-8

Manufacturer

Picture for manufacturer Manley

Part Number

14062-8
9 reviews
Sale Price

$829.81

Estimated ship date Friday, November 27

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 14062-8 H-Beam connecting rod set is engineered for Big Block Chevy performance builds, offering exceptional strength and precision at an economical price point. Constructed from forged 4340 steel alloy, these connecting rods deliver the same exacting tolerances and quality standards found in Manley's premium Sportsmaster and Pro Series rods.

Key Specifications:

  • Center-to-center length: 6.385 inches (0.250 inches longer than stock)
  • Big end bore diameter: 2.325 inches
  • Rod journal diameter: 2.200 inches
  • Pin end bore diameter: 0.990 inches (bushed)
  • Individual rod weight: 810-813 grams

Performance Features:

  • Forged 4340 steel construction with compact uniform-grain structure for ultimate strength

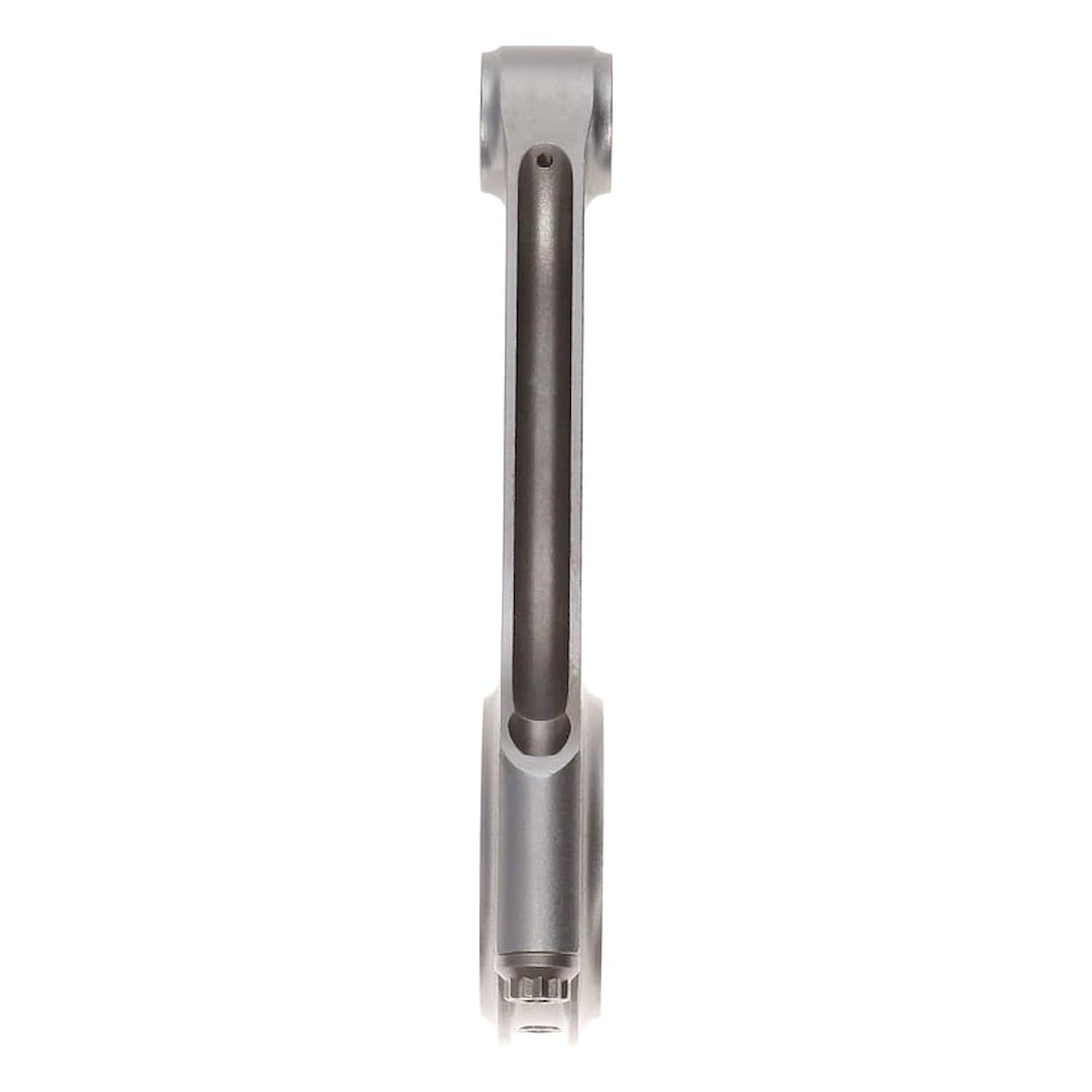

  • H-beam design provides optimal strength-to-weight ratio
  • Fully machined, stress relieved, and magnafluxed for reliability
  • Wrist pin and big end bores honed to +/- 0.0002 inch tolerance
  • Bronze alloy bushing in wrist pin bore for floating pin applications

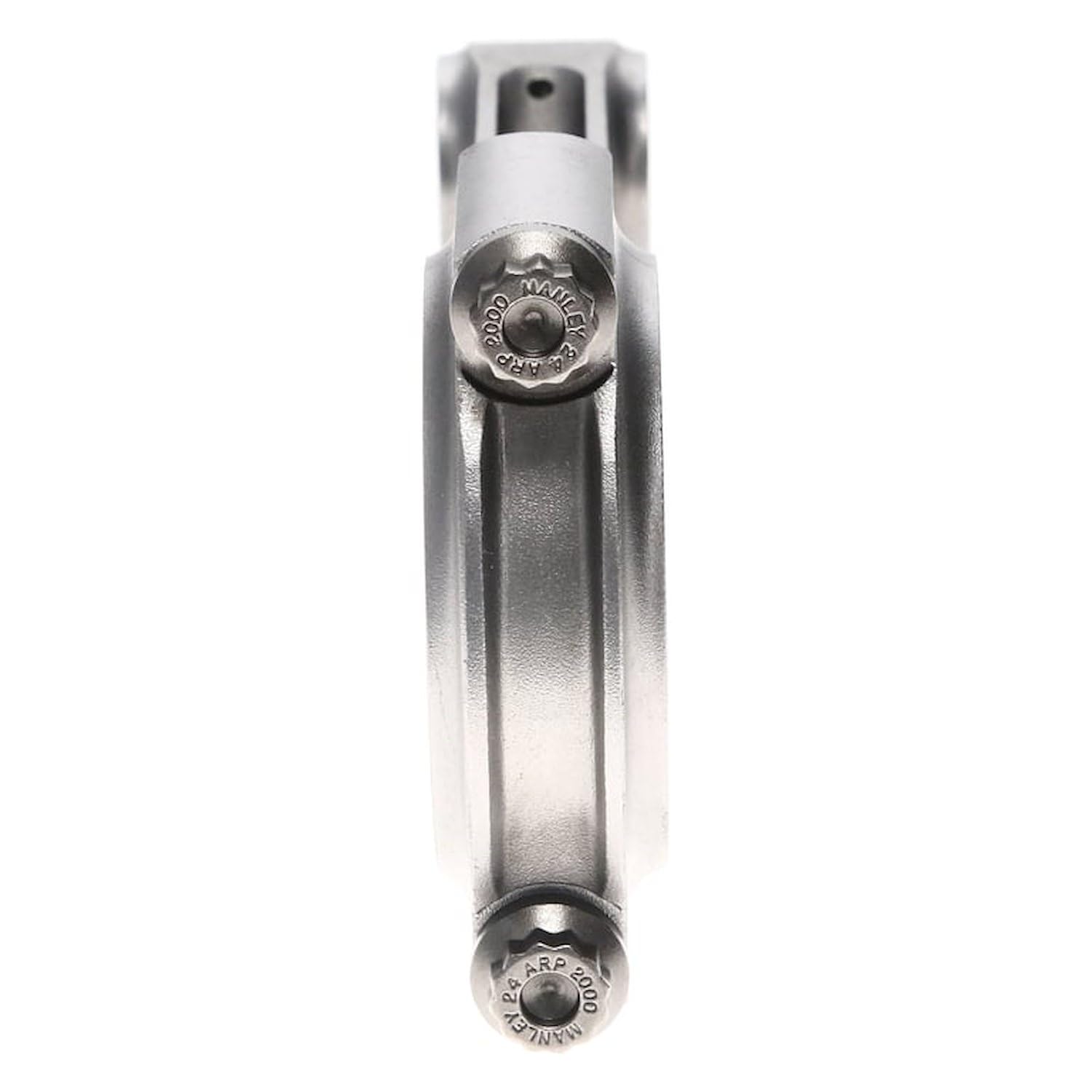

  • Includes ARP 8740 chromoly steel cap screw rod bolts (7/16 inch, 12-point head)
  • Rod bolts rated at 160,000 psi tensile strength
  • Each rod set is weight-matched to within 2 grams
  • Shot peened finish for enhanced durability

These H-beam connecting rods are ideal for stroker combinations and high-performance Big Block Chevy applications. The precision manufacturing ensures proper final hone size, thread detail, and minimal bend and twist, making the Manley H-Beam rods superior performers on the street or track.

Products specifications

Advertised Horsepower Rating (hp)

900 hp

Advertised RPM Rating

8,000 rpm

Approximate Connecting Rod Weight (g)

810

Balanced

No

Big End Bore Diameter (in)

2.200 in.

Cap Retention Style

Cap screw

Clearanced for Stroker

No

Connecting Rod Beam Style

H-beam

Connecting Rod Bolt Brand

ARP

Connecting Rod Bolt Diameter

7/16 in.

Connecting Rod Bolt Head Style

12-point

Connecting Rod Bolt Material

8740 chromemoly steel

Connecting Rod Finish

Shot-peened

Connecting Rod Length Center To Center (in)

6.385 in.

Connecting Rod Material

Forged 4340 steel

Fastener Yield Strength (psi)

160,000 psi

Magnafluxed

Yes

Pin End Bore Diameter

0.990 in.

Pin End Bore Diameter (in)

0.990 in.

Quantity

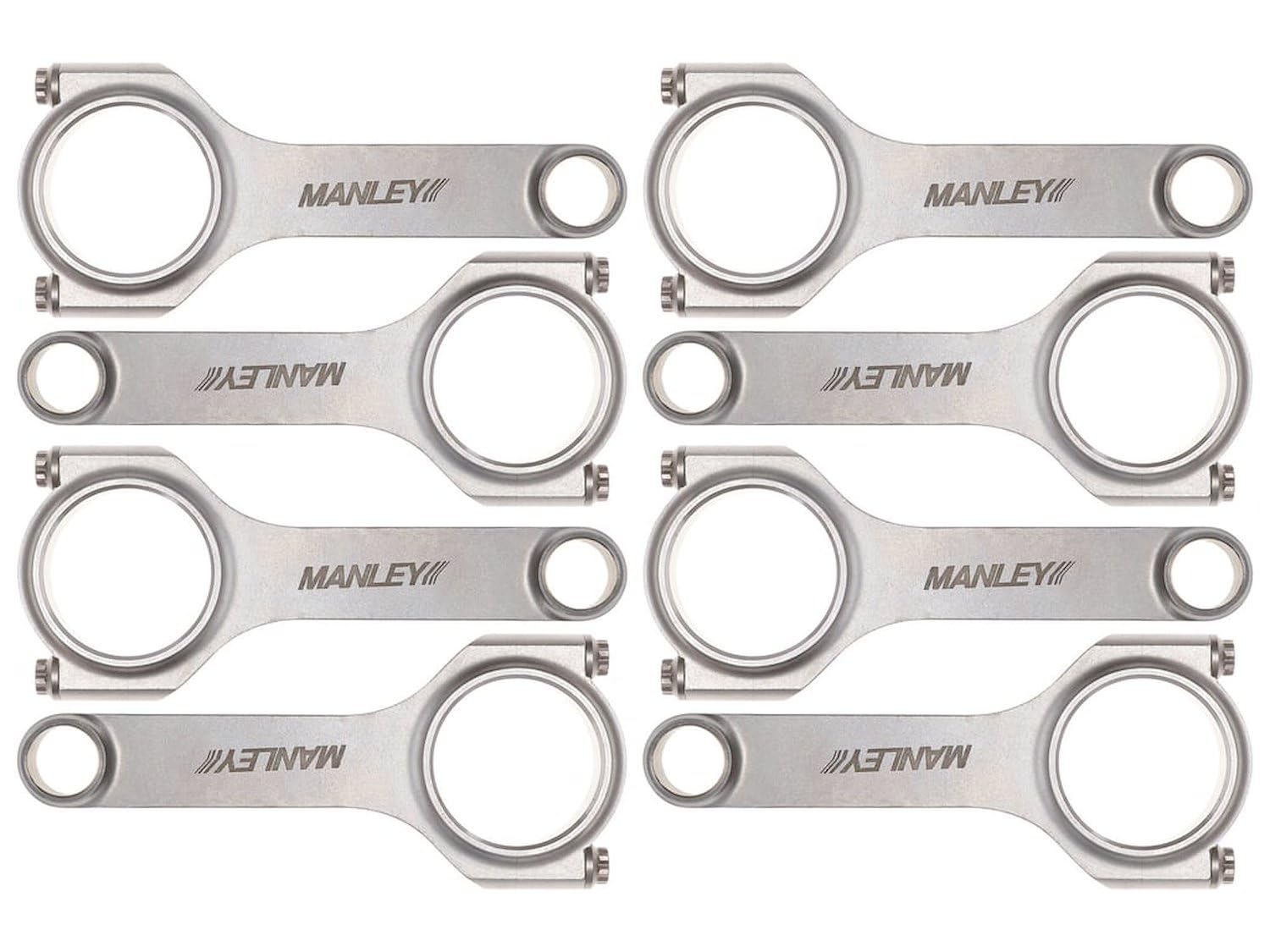

Sold as a set of 8.

Remanufactured

No

Rod Journal Diameter (in)

2.200 in.

Tool

Stroker Combinations

Weight Matched Set

Yes

Wrist Pin Style

Floating
