Wiseco 6464LX7 Professional Series Forged Piston Chevy LS -3cc Dome 4.070" Bore Left Bank

(1998-2002 Chevrolet Camaro SS/Z28; 1997-2004 Chevrolet Corvette Base; 2004 Pontiac GTO; 1998-2002 Pontiac Firebird Formula)

Manufacturer

Picture for manufacturer Wiseco Pistons

Part Number

6464LX7
6 reviews
Sale Price

$168.99

Estimated ship date Thursday, November 26

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

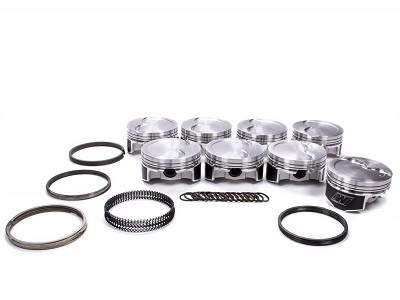

The Wiseco 6464LX7 is a Professional Series forged replacement piston designed specifically as a left-bank individual piston for Chevrolet 6.0L and 6.2L LS series engines. Featuring a 4.070-inch bore and -3cc dome head volume, this piston is engineered to deliver the compression characteristics needed for high-performance and power-adder builds.

Key Features:

  • Forged 2618 Aluminum Construction – Engineered, forged, and machined in the USA from high-tensile-strength 2618 aluminum alloy for maximum durability under severe duty conditions
  • ArmorGlide® Skirt Coating – Reduces operating friction, resists seizure, lowers noise, and extends skirt and cylinder life
  • Fully Machined Crown – Race-ready dome does not require deburring by the engine builder
  • Precision Ring Grooves – Includes anti-detonation groove and additional ring seal features to keep the top ring groove free of carbon buildup
  • GFX Ring Pack Included – 1.2mm Nitride Steel Top ring, 1.2mm Napier 2nd ring, and Nitride 3mm oil ring for optimal seal, reduced friction, and superior oil control
  • Forced Pin Oiling – Ensures continuous lubrication to the wrist pin under extreme conditions
  • Radiused Valve Pockets – Provides detonation resistance and improved flow around valves
  • Multi-Fit Valve Pockets – Allows interchangeability with a wide range of cylinder head configurations
  • Strutted Skirt Design – Built for tight piston-to-wall clearances as low as .004" with excellent wear characteristics
  • Left Bank Replacement – Sold individually as a direct replacement for the left bank cylinders in applicable LS engine builds

Specifications:

  • Bore: 4.070 in.
  • Piston Head Volume: -3cc (Dome)
  • Compression Height: 1.110 in.
  • Pin Diameter: 0.927 in.
  • Material: Forged 2618 Aluminum
  • Ring Grooves: 1.2mm / 1.2mm / 3.0mm
  • Quantity: Single Piston (Left Bank)

Built for racers by racers, Wiseco's Professional Series pistons are the choice for serious engine builders demanding the highest levels of performance and reliability in street/strip, drag racing, and power-adder applications on the popular GM LS platform.

Products specifications

Fits

1998-2002 Chevrolet Camaro SS/Z28; 1997-2004 Chevrolet Corvette Base; 2004 Pontiac GTO; 1998-2002 Pontiac Firebird Formula

Comp Ratio @ 65CC

11.8:1

Comp Ratio @ 67CC

11.6:1

Comp Ratio @ 68CC

11.4:1

Comp Ratio @ 70CC

11.2:1

Dome Volume

-3

Gram Weight

496

Rod

6.098 / 6.125

Stroke

4

Piston Quantity

1

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.070

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Oil Ring Thickness

3.0

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Second Compression Ring Thickness

0.047

Top Compression Ring Thickness

0.047

EBAY Category ID

33623

Engine - Web

LS

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Piston Volume

-3.00

Title

Wiseco - Chevrolet, LS, 4.070 in. Bore, Piston

Compression Height

1.1105

Title - Web

Professional Chevy LS Piston - 4.070 in. Bore - 1.1105 .in CH, -3.00 CC
