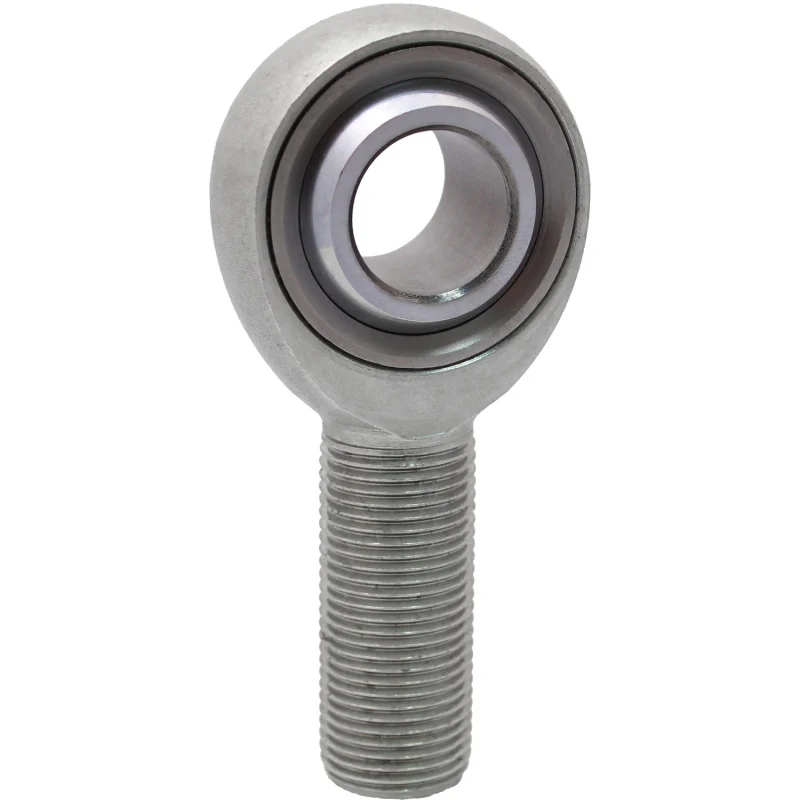

QA1 KML6-7TS K Series 3-Piece Carbon Rod End 3/8in Bore 7/16in-20 LH Male Thread PTFE Lined Stud

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

KML6-7TS
5 reviews
Sale Price

$14.61

Estimated ship date Sunday, October 25

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 KML6-7TS is a K Series three-piece carbon steel rod end featuring a self-lubricating PTFE liner and stud configuration. Built for high-load performance applications, this precision rod end delivers smooth articulation and long service life in demanding suspension, steering, and chassis setups.

Key Features:

  • 3-Piece Construction: Traditional three-piece design for strength and serviceability
  • PTFE Lined: Self-lubricating polytetrafluoroethylene (Teflon) liner for reduced friction and maintenance-free operation
  • Stud Configuration: Stud-mount design for secure, direct installation
  • Ball: 52100 bearing steel, heat treated, precision ground, and hard chrome plated for durability and wear resistance
  • Race: Alloy steel inner race, corrosion and wear resistant
  • Body: Carbon steel (alloy/chromoly steel at manufacturer's option), protective coated for corrosion resistance
  • Bore: 3/8 in. (0.375 in.)
  • Thread: 7/16 in.-20 left-hand (LH) male
  • Thread Direction: Left-hand ? ideal for applications requiring opposing thread pairs
  • ISO 9001 Manufactured: Produced to exacting quality standards

The QA1 KML6-7TS is well-suited for circle track racing, drag racing, custom suspension builds, and performance street applications where precision articulation and high load capacity are required.

Products specifications

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Notes

Features 7/16-20 RH in. male threaded stud built into the rod end head. Only rod end ball and race are heat-treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.500 in.

Rod End Centerline Length

2.125 in.

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.375 in.

Rod End Head Diameter

1.125 in.

Rod End Head Width

0.500 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

10 degrees

Rod End Static Load Capacity

7,180 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

7/16-20 LH in.

Size

3/8-7/16

Thread

Left Hand

Thread Length

1.375 in.
