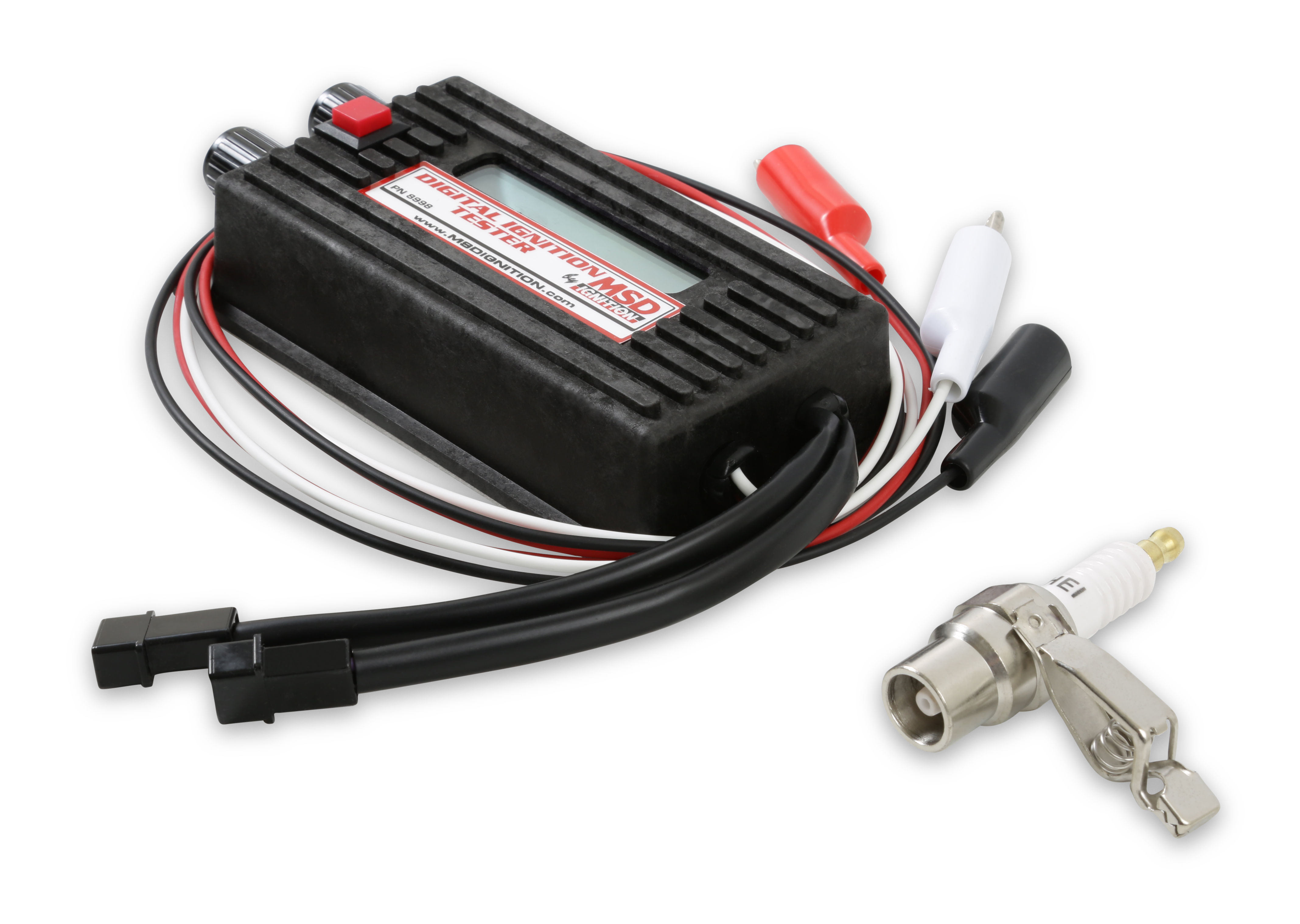

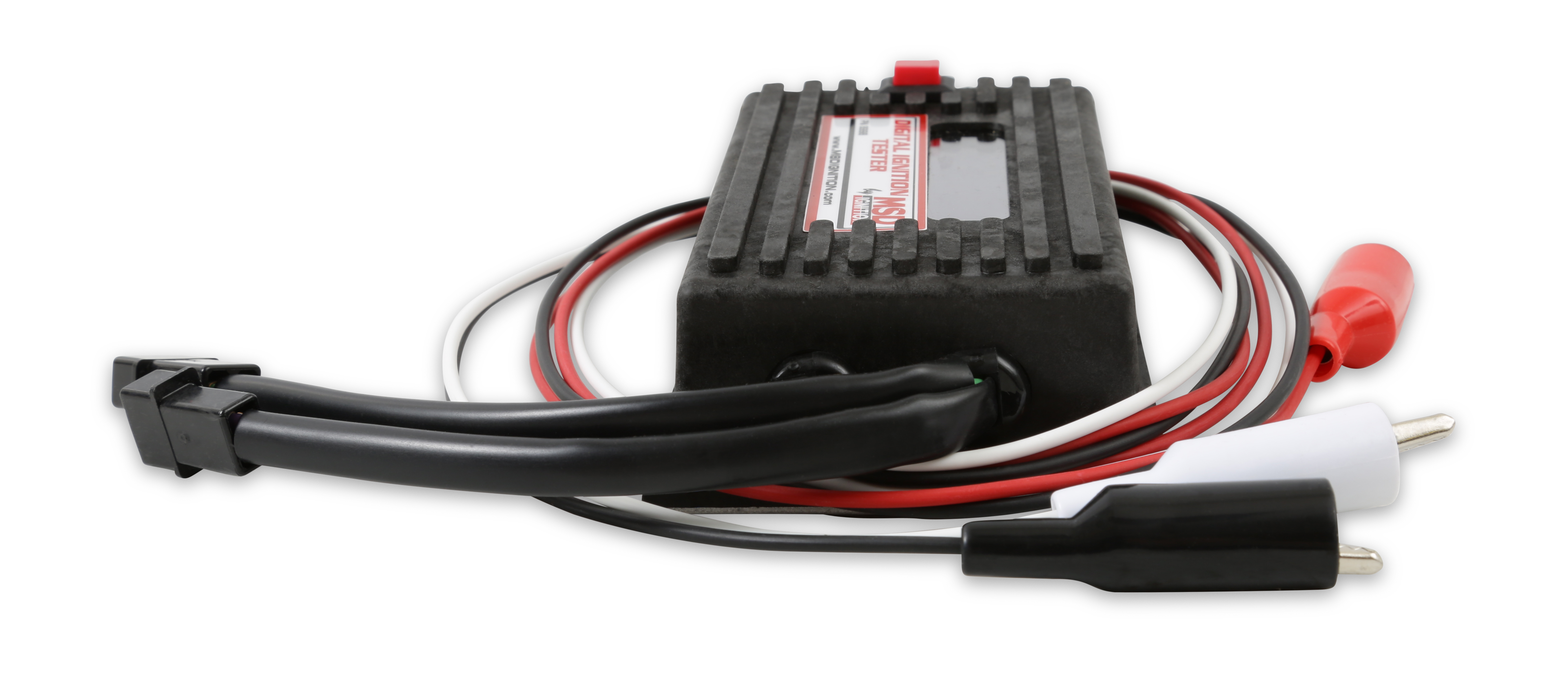

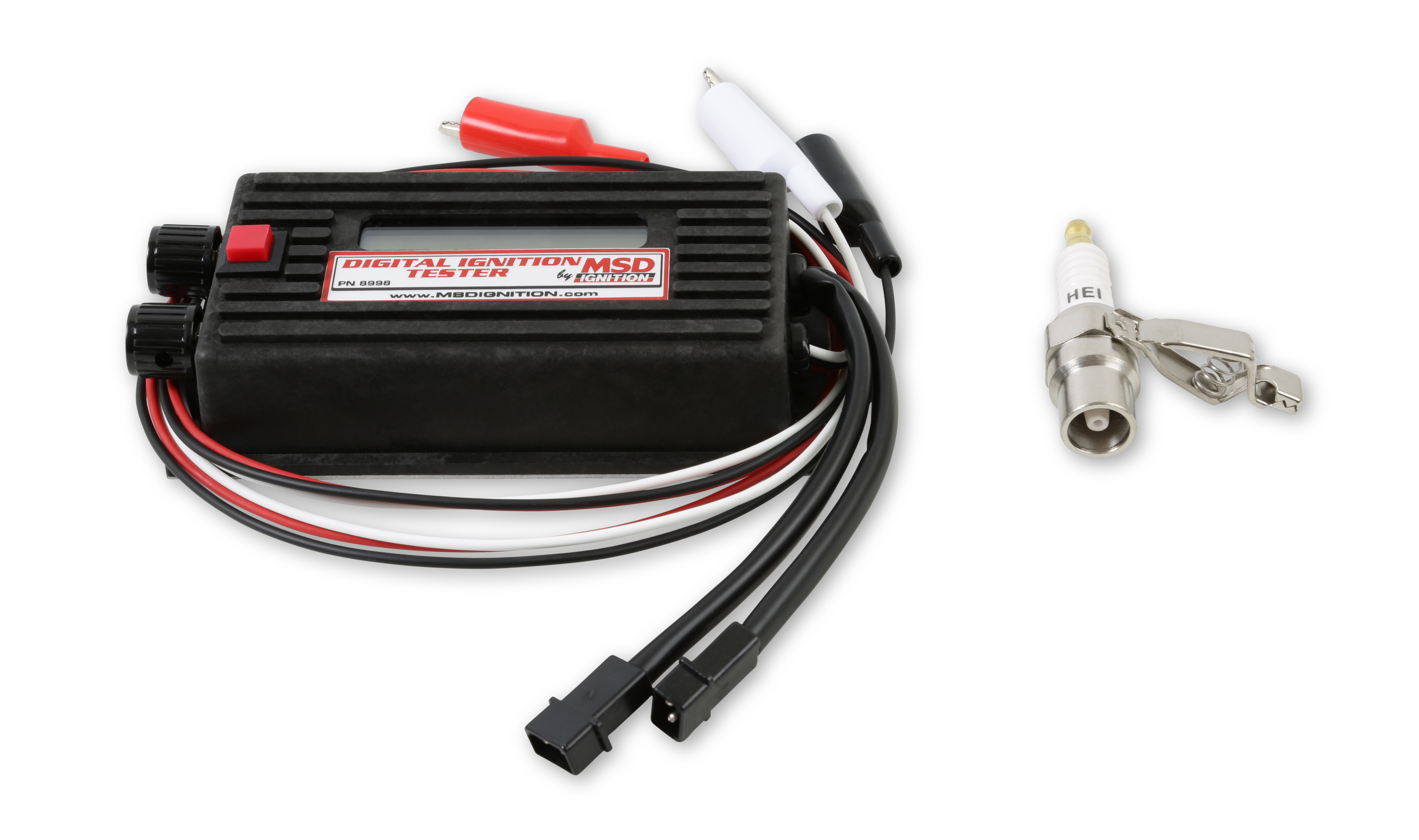

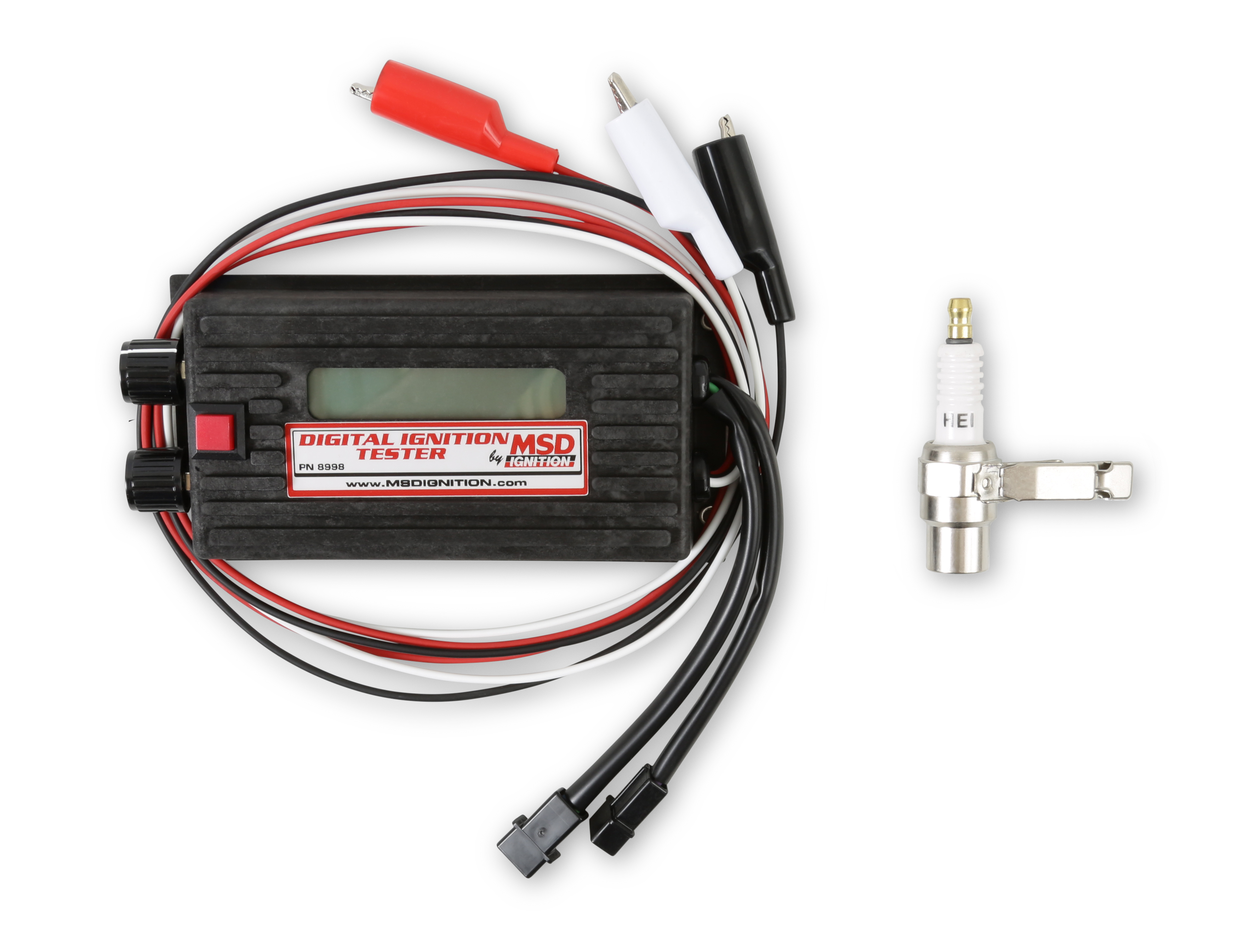

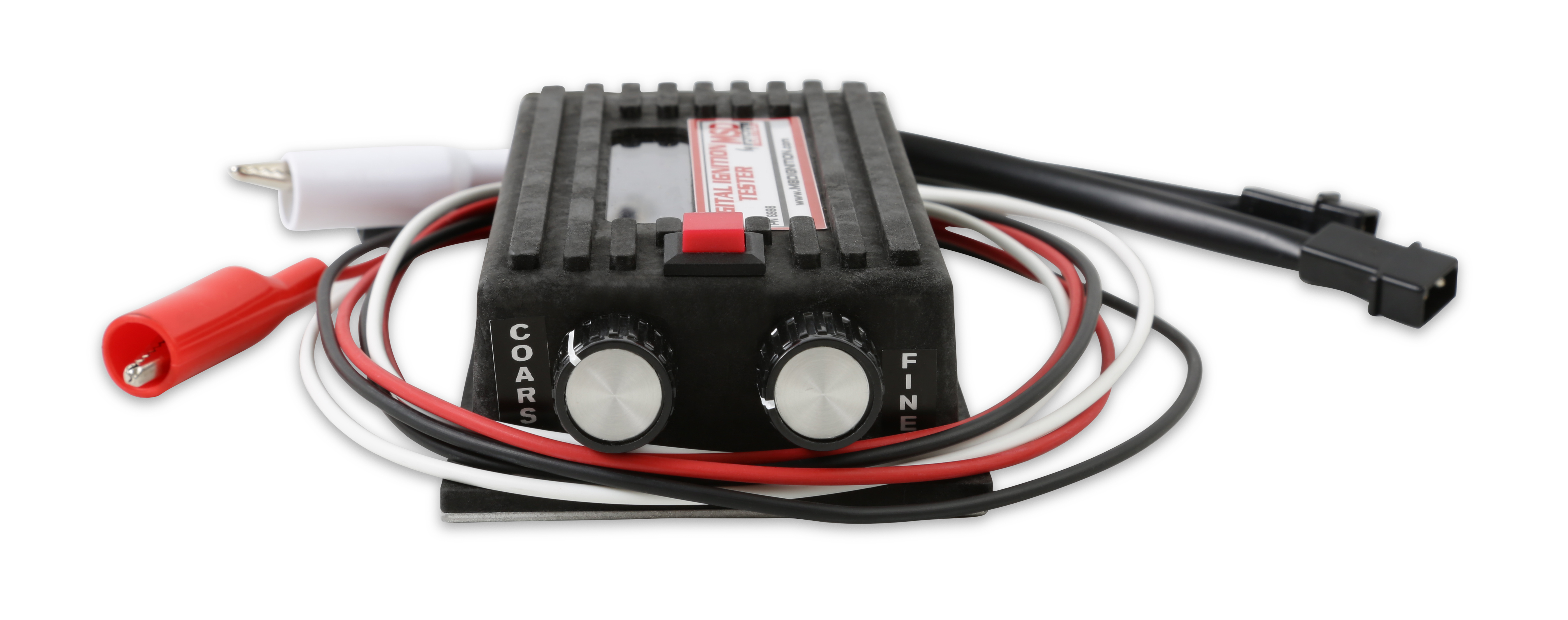

The MSD 8998 Single Channel Digital Ignition Tester is a handheld diagnostic tool designed to quickly and accurately test MSD single-channel CD ignition controls and coils without removing them from the vehicle. By generating a simulated trigger signal, it fires the ignition just as if the engine were running — making ignition troubleshooting fast and straightforward.
Compatible with MSD 6, 7, 8, and 10 Series Ignition Controls, this tester works on 4, 6, and 8-cylinder engines and can simulate engine speeds up to 16,000 RPM. The built-in LCD display shows the simulated RPM in real time, allowing you to verify the function of rev limiters, RPM-activated switches, shift lights, and tachometers.

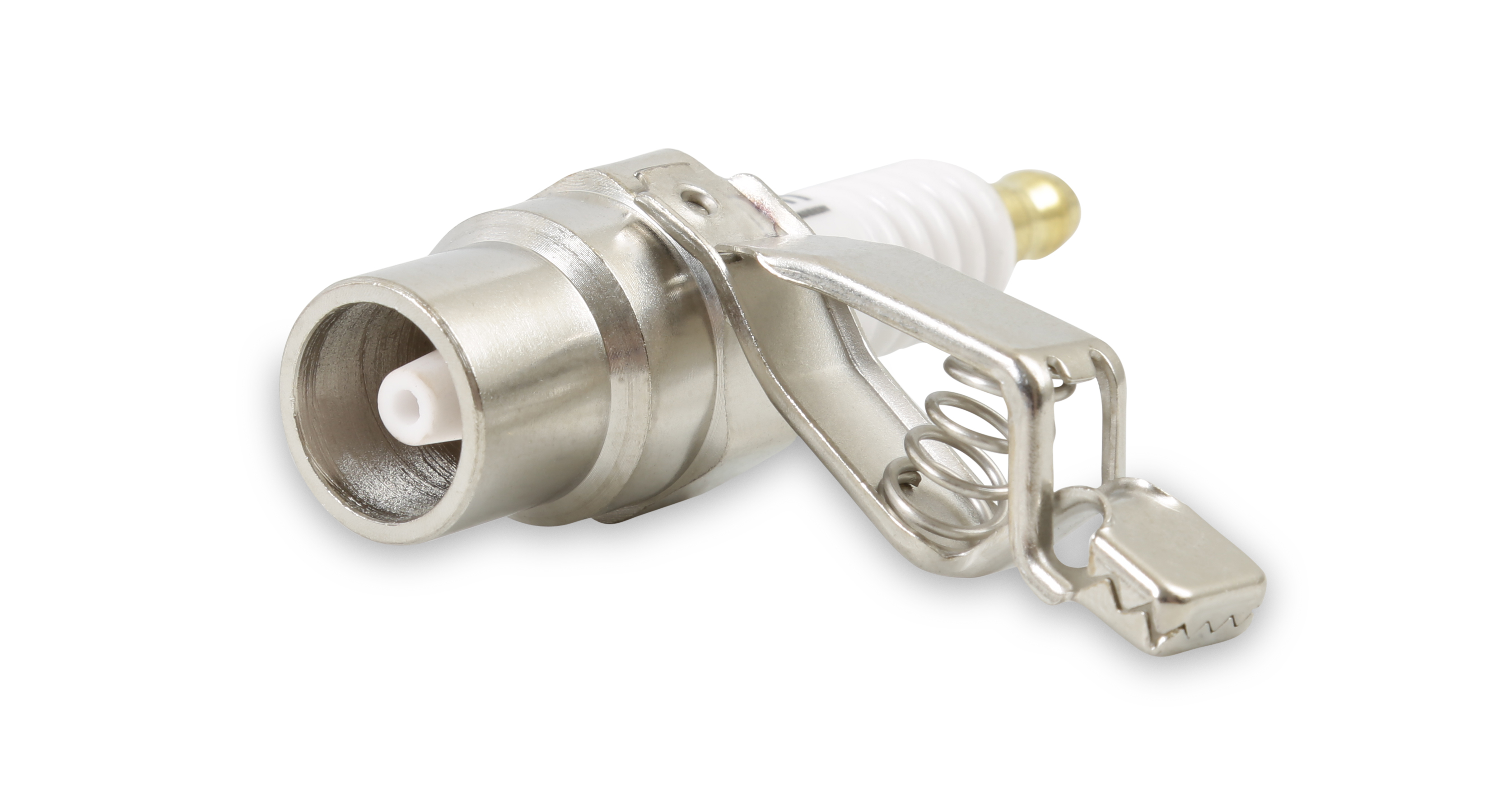

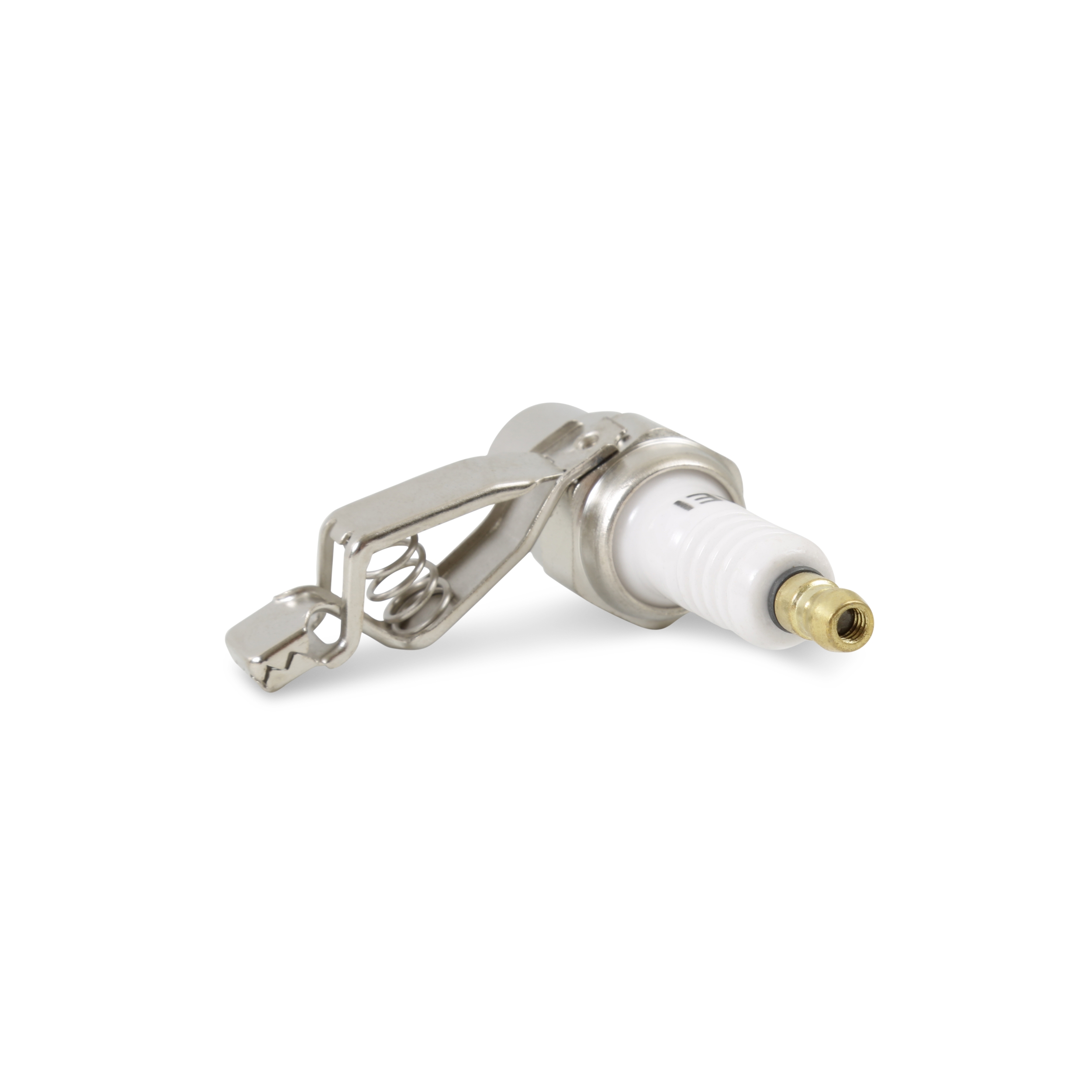

A special load-producing, clip-on spark plug is included and connects directly to the coil wire. If the spark cannot jump the gap, an ignition fault is present and can be traced accordingly. The tester also features a dedicated circuit to check the operation of cam sync signals — essential for racers running MSD Digital Programmable 7 Ignition Controls with a non-magnetic pickup as a sync signal for Individual Cylinder Management.
Key Features:
- Handheld design — test ignition and coil without removing from the vehicle
- Compatible with MSD 6, 7, 8, and 10 Series single-channel CD Ignition Controls
- Supports 4, 6, and 8-cylinder engines
- Simulates engine speeds up to 16,000 RPM
- LCD display shows simulated RPM for real-time testing
- Confirms operation of rev limits, RPM-activated switches, shift lights, and tachometers
- Triggers through breaker points, amplifier, and magnetic pickup trigger inputs
- Additional circuit checks cam sync signal operation for Individual Cylinder Management setups
- Includes load-producing clip-on spark plug for coil wire testing
- Legal for use on emissions-controlled, non-emissions-controlled, and race-only vehicles
The MSD 8998 is an essential tool for racers and performance enthusiasts who need a reliable, efficient method to diagnose ignition system issues and confirm the accuracy of ignition-related electronics.
