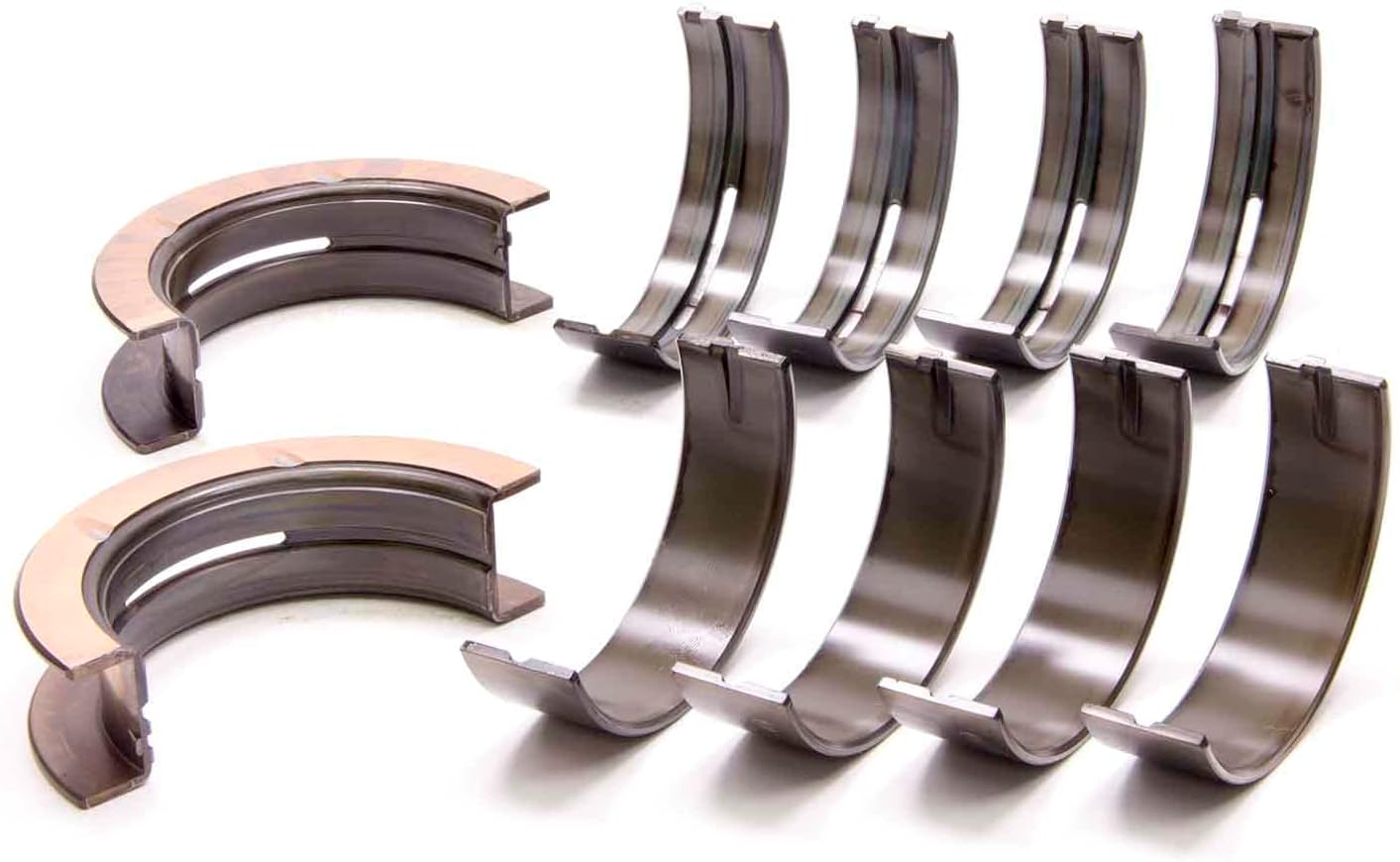

ACL Bearings 5M1039HX-STD Race Series Main Bearing Set for Ford 429-460 Big Block

Manufacturer

Picture for manufacturer ACL Bearings

Part Number

5M1039HX-STD
9 reviews
Sale Price

$188.04

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 5M1039HX-STD is a high-performance Race Series main bearing set engineered for Ford big block V8 engines, including 370ci, 429ci, and 460ci applications. This standard size bearing set features ACL's H-Series construction with extra clearance (HX) design, providing an additional .001" oil clearance compared to standard H-Series bearings for high-performance and racing applications.

Key Features:

  • Multi-layered tri-metal copper alloy construction for high strength and excellent seizure resistance
  • HX-Series designation provides .001" (.025mm) extra oil clearance for performance builds
  • Manufactured to exact tolerances ensuring reliable fit and consistent clearances
  • Extended oil grooves for enhanced lubrication
  • Increased crush, bearing eccentricity, and enlarged I.D. chamfers
  • Standard size bearings for use with factory crankshaft journals
  • Complete main bearing set for Ford 429-460 big block engines

ACL Race Series bearings are proven in championship-winning engines across NASCAR, IHRA, and NHRA competition. The extra clearance design makes this set ideal for performance street builds, racing applications, and engine combinations requiring additional oil flow. Made in Australia with precision quality control and decades of bearing engineering expertise.

Products specifications

Max Overall Length

0.950" (24.13mm) - 5212H 1.120" (28.45mm) - 5214H Flange

Max Std Shaft Size

3.0002" (76.205mm)

Max Std Tunnel Size

3.193" (81.102mm)

Max Wall at Crown

0.0952" (2.417mm)

Min Std Shaft Size

2.9994" (76.185mm)

Min Std Tunnel Size

3.1922" (81.082mm)

Oil Clearance

+ 0.001" Extra

Size

Standard
