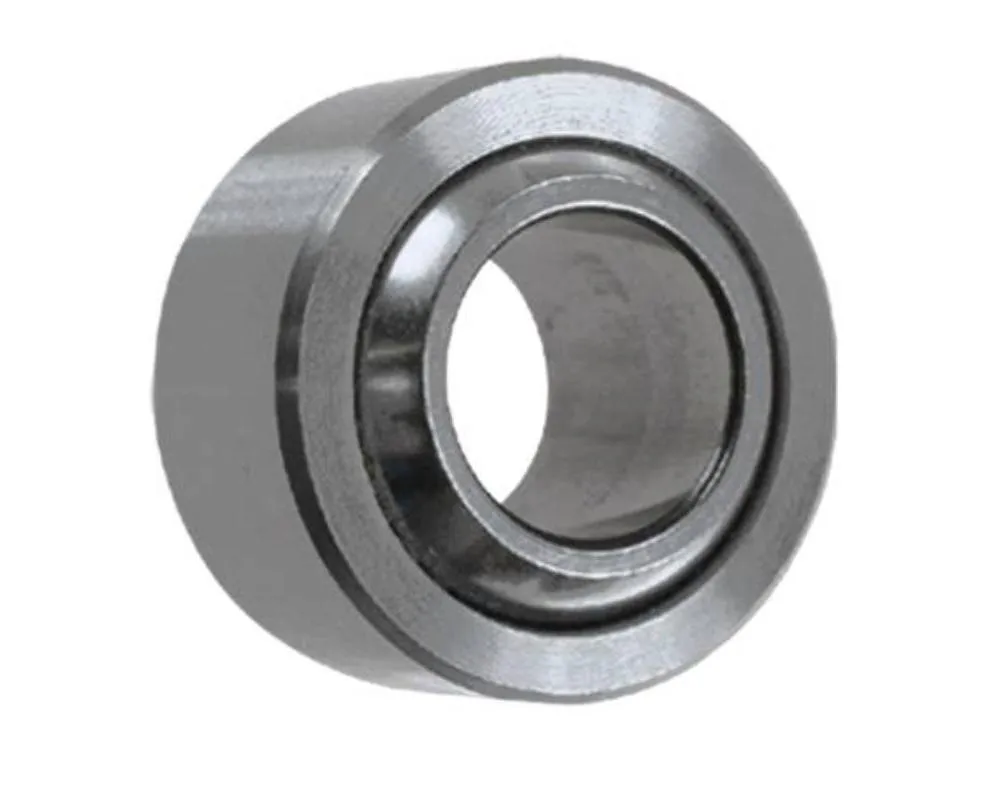

QA1 Precision Products WPB12T Wide Series Spherical Rod End Bearing

Part of: QA1 Precision Products Wide Bearing

Other options in this family: QA1 Precision Products WPB8T QA1 Precision Products WPB4T QA1 Precision Products WPB10T QA1 Precision Products WPB16T

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

WPB12T
5 reviews
Sale Price

$35.66

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 Precision Products WPB12T is a precision-grade spherical bearing from the WPB-T Wide Stainless Steel Series, offering tighter tolerances than traditional spherical bearings. Designed for high-performance suspension and linkage applications, this bearing features a stainless steel race with a self-lubricating PTFE liner for maintenance-free operation.

Key Features:

  • 0.750-inch bore diameter (3/4 inch) with 1.385-inch outer race diameter
  • 440C stainless steel ball that is heat treated, hard chrome plated, and precision ground
  • Self-lubricating PTFE liner eliminates the need for external lubrication
  • Race width of 0.630 inches with inner ball width of 0.875 inches
  • 1.250-inch rod end ball diameter for secure mounting
  • 13-degree misalignment angle with 37,000 lbs ultimate static radial load capacity
  • Heat-treated stainless steel race for maximum durability

This wide precision bearing provides tighter tolerances than traditional spherical bearings while the stainless steel construction with PTFE liner ensures reliable, long-lasting performance. Ideal for suspension components, control arms, steering linkages, and other high-performance applications requiring precision and durability. Sold individually.

Products specifications

Approx Bearing Weight

0.24

B (+0.0000/-0.0005)

0.75

Ball Dia Ref

1.25

Chamfer Reference

0.044 in.

D (+0.0000/-0.0005)

1.375

Inner Ball Diameter (in.)

0.7500 in.

Inner Ball Width (in.)

0.875 in.

M Cham Ref

0.035

Misalign Angle

13

No Load Breakaway

3-12

O Flat Dia Ref

0.845

Quantity

Sold individually.

Race Width (in.)

0.630 in.

Receiver Race Diameter (in.)

1.3850 in.

Rod End Ball Diameter (in.)

1.250 in.

Rod End Bearing Material

Stainless steel

Rod End Misalign Angle (degrees)

13 degrees

T (+/-0.005)

0.63

ULT. Static Radial Load (lbs.)

37,000 lbs.

UTL Axial Push

7730

UTL Radical Static

37000

W (+0.000/-0.002)

0.875

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
