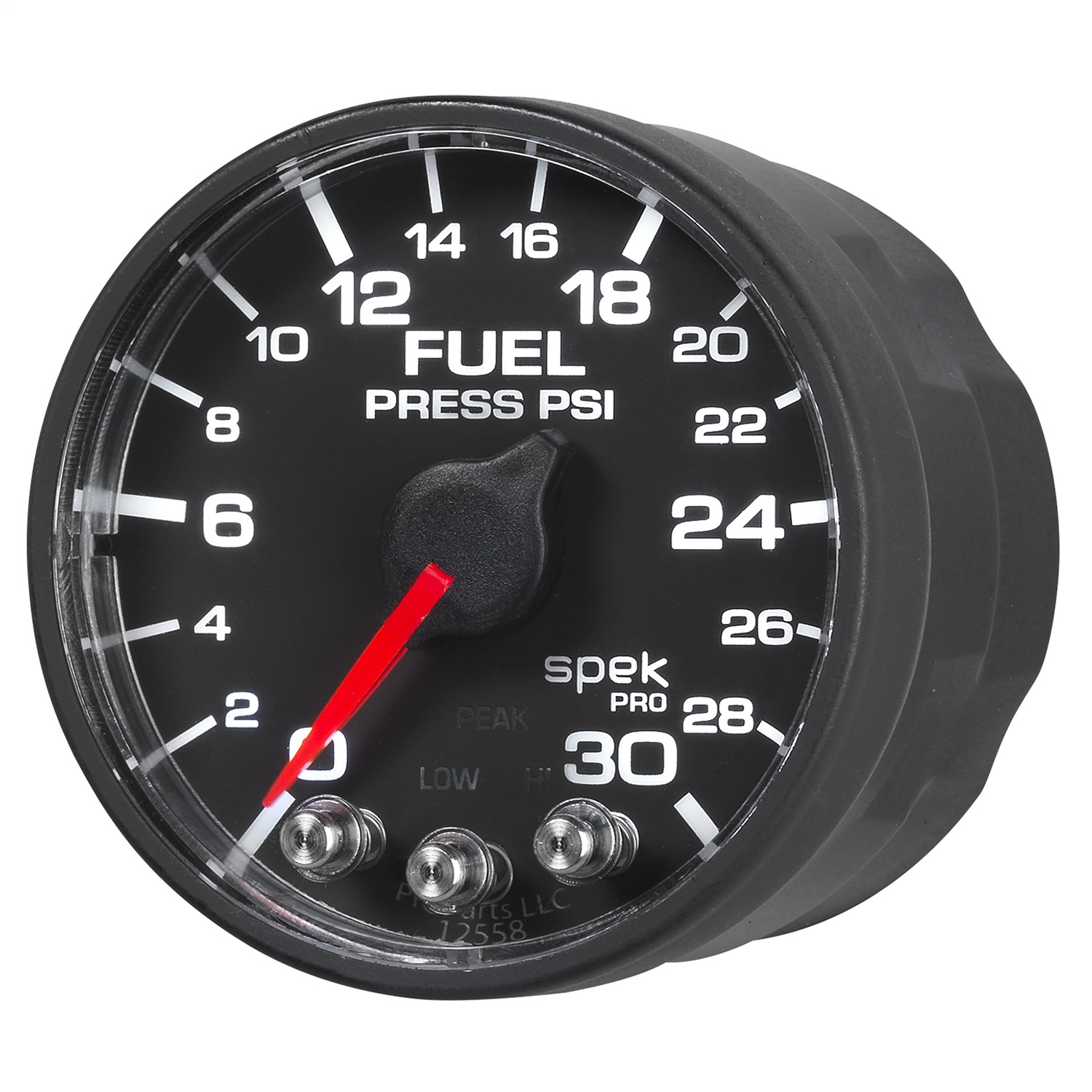

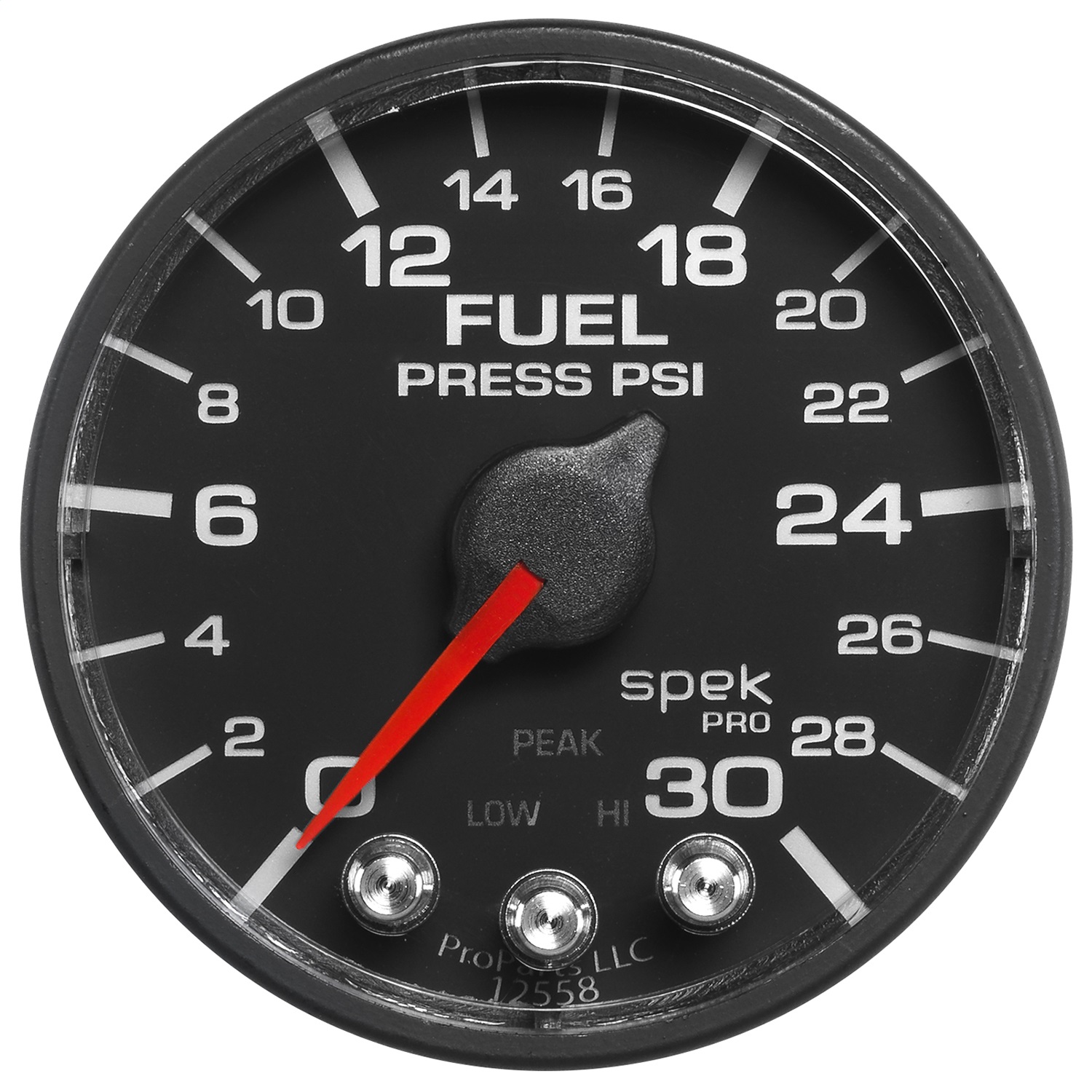

AutoMeter P316328 Spek 2-1/16" Digital Fuel Pressure Gauge 0-30 PSI

The AutoMeter Spek Digital Stepper Motor Fuel Pressure Gauge delivers precision fuel pressure monitoring with professional-grade accuracy for both fuel injected and carbureted applications. Featuring an advanced solid-state pressure transducer with 1/8" NPT connection, this gauge provides exceptional resistance to vibration and heat while delivering measurements at levels of accuracy previously unheard of in automotive instrumentation.

Advanced Digital Features:

• Precision 280° brushless stepper motor movement ensures quiet, fluid pointer operation with superior dial resolution
• Peak recall function stores and displays the highest pressure reading until manually cleared
• Configurable high and low pressure warnings using three instrument-face buttons
• Pro-Control output with 1.5 amp capacity to trigger relays, warning lights, buzzers, or activate water/methanol/nitrous injection systems
• Data acquisition grade sending unit for unmatched accuracy in harsh environments

Customizable Illumination:

• Seven user-selectable LED background colors: red, blue, green, white, yellow, orange, and violet
• Adjustable brightness with independent dimming control for dial and fluorescent red pointer
• Optimized for both day and night visibility

Specifications:

• Gauge size: 2-1/16 inch diameter with patented wide-angle dial design
• Pressure range: 0-30 PSI
• Black dial with flat clear lens
• Black Spek square shoulder bezel (2.360" outer diameter)
• Cup/hole mounting size: 2.050 inches

Includes patented lightweight spin-on mounting bracket and pre-wired plug-in harness for simplified installation. Precise fuel pressure monitoring helps prevent costly engine failures while maximizing performance and reliability.
