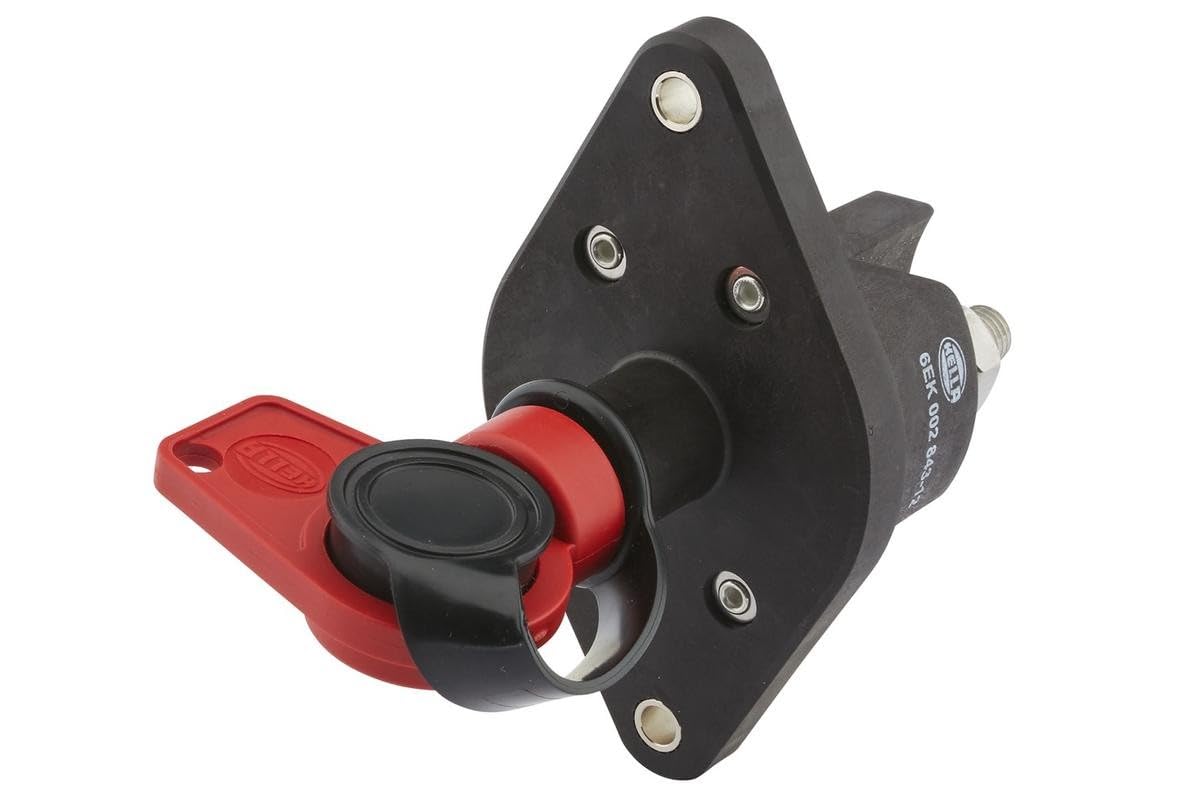

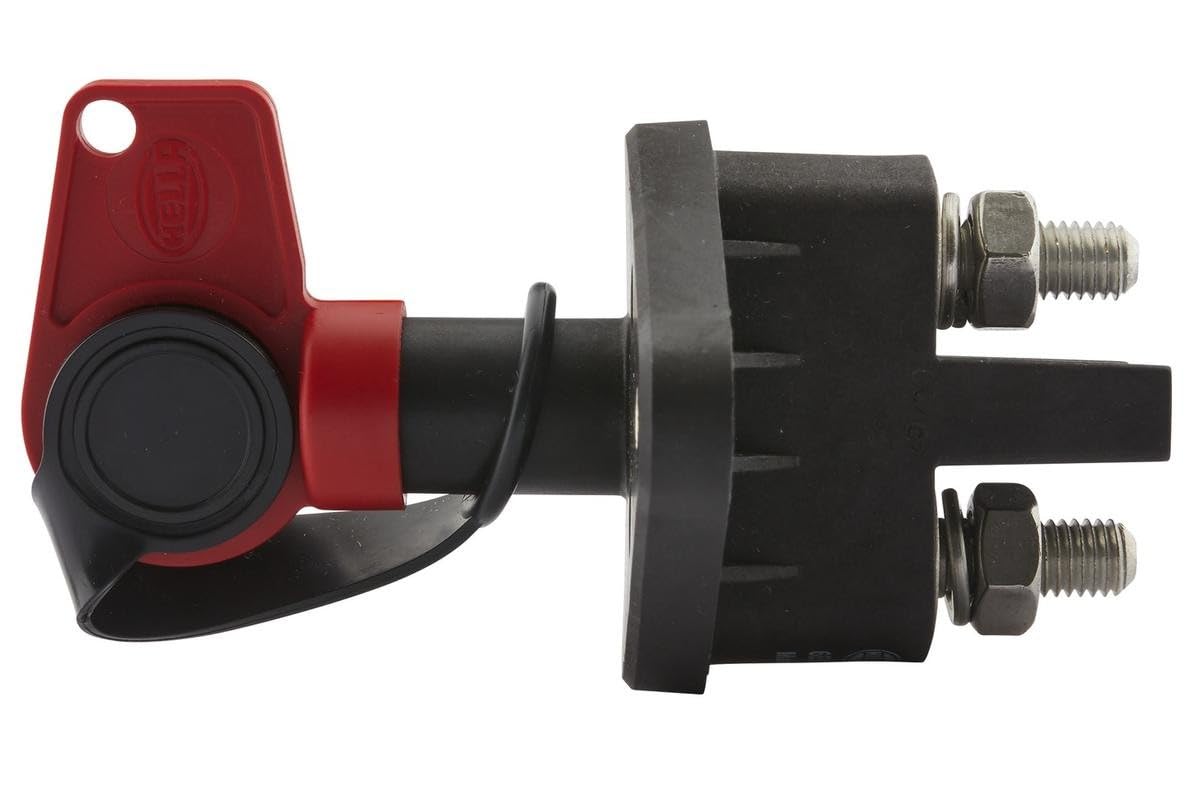

Hella 002843121 Battery Master Cut-Off Switch 500A IP65

Manufacturer

Part Number

002843121
Sale Price

$87.97

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Hella 002843121 is a heavy-duty battery master cut-off switch rated for up to 500 amps continuous current and a maximum of 32 volts, meeting IP65 ingress protection standards for dust-tight and water-resistant performance. Designed for demanding applications including automotive, commercial vehicles, agricultural machinery, and construction equipment, this switch allows the operator to fully isolate the battery from the electrical system with a simple turn-knob action.

The switch features an M10x1.5 connecting thread and an oval mounting shape for secure bolted installation. Its CuZn39 F44 tin-plated (gal Sn) terminals ensure excellent conductivity and corrosion resistance. The normally open contact configuration makes it ideal as a main battery disconnect for fire prevention and theft deterrence.

Key Features:

  • Rated continuous current: 500A
  • Maximum rated voltage: 32V
  • Surge capacity at 24V: 2500A/10 sec, 2000A/1.5 min, 1500A/4 min
  • IP65 ingress protection — dust-tight and water-resistant

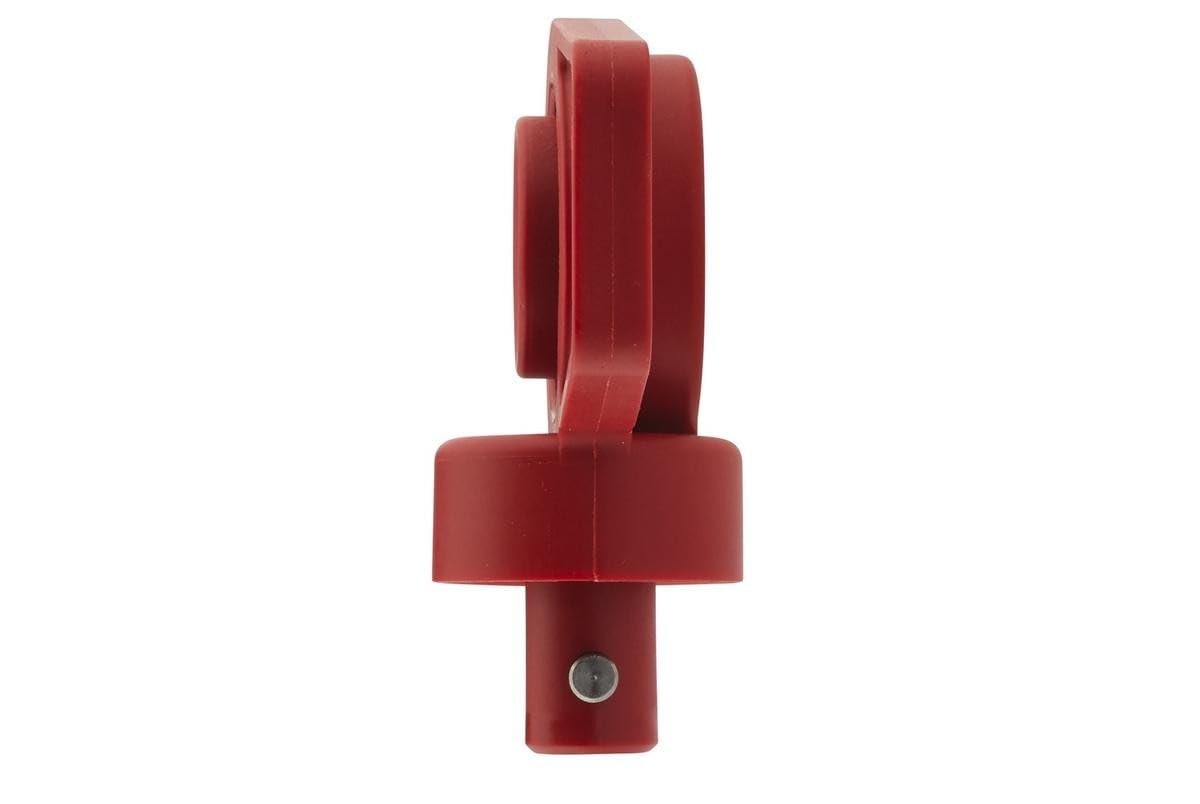

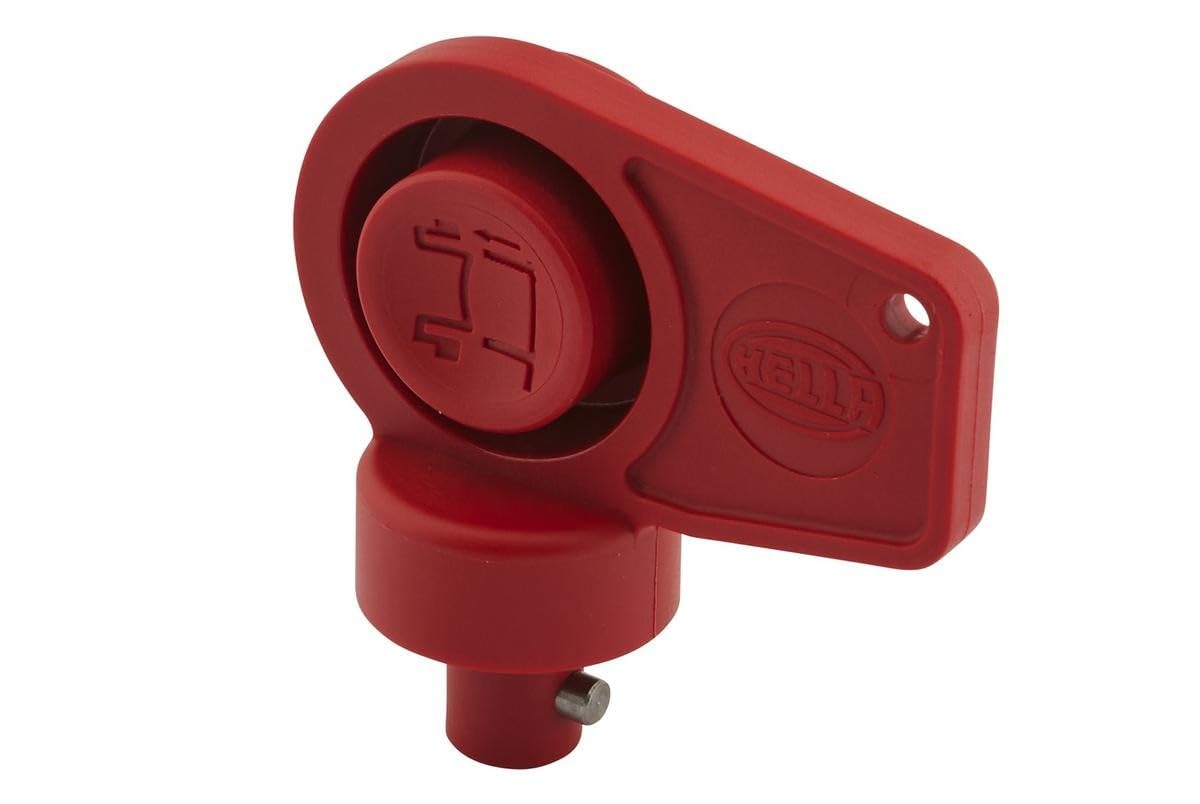

  • Turn-knob control with removable key in the OFF position for anti-theft security
  • Oval shape with bolted mounting for a stable, secure installation

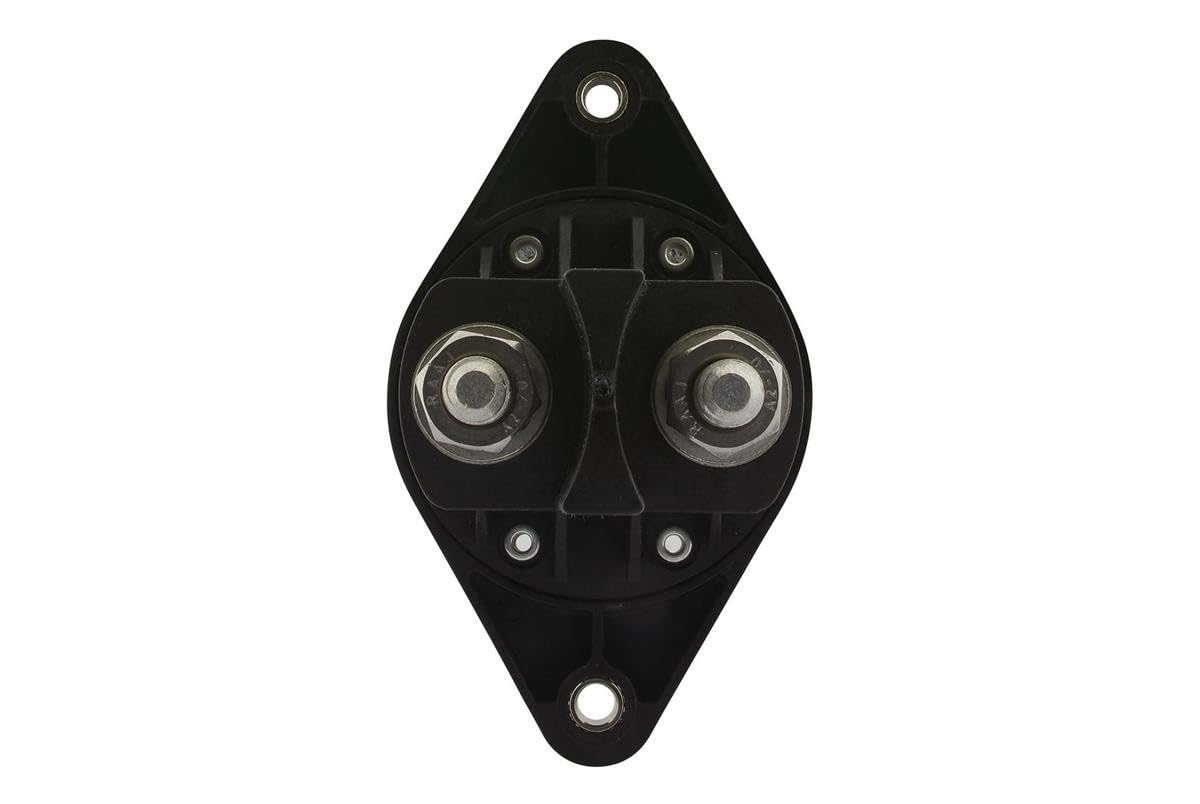

  • M10x1.5 connecting thread with 2 connectors
  • Tin-plated CuZn39 F44 brass terminals for superior conductivity and corrosion resistance
  • Recommended supply line cross-sections: 35mm² at 100A, 70mm² at 250A, 250mm² at 500A
  • Normally open contact configuration
  • Made in Germany

The Hella 002843121 battery disconnect switch is also cross-referenced as 6EK 002 843-121. It is an effective solution for isolating battery power during vehicle servicing, extended storage, or emergency situations, and is widely used across motorsport, marine, trucking, and off-road applications.

Products specifications

Control Type

Turn knob control

Combi Switch Function

Normally Open Contact

Number of Connectors

2

Capacity at 24V

1500A/4 min.

Manufacturer Restriction

CuZn39 F44, gal Sn

Shape

Oval

DIN / ISO

IP65

Rated Voltage [V]

24

Current Strength [A]

500

Mounting Type

Bolted

Connecting thread

M10x1,5
