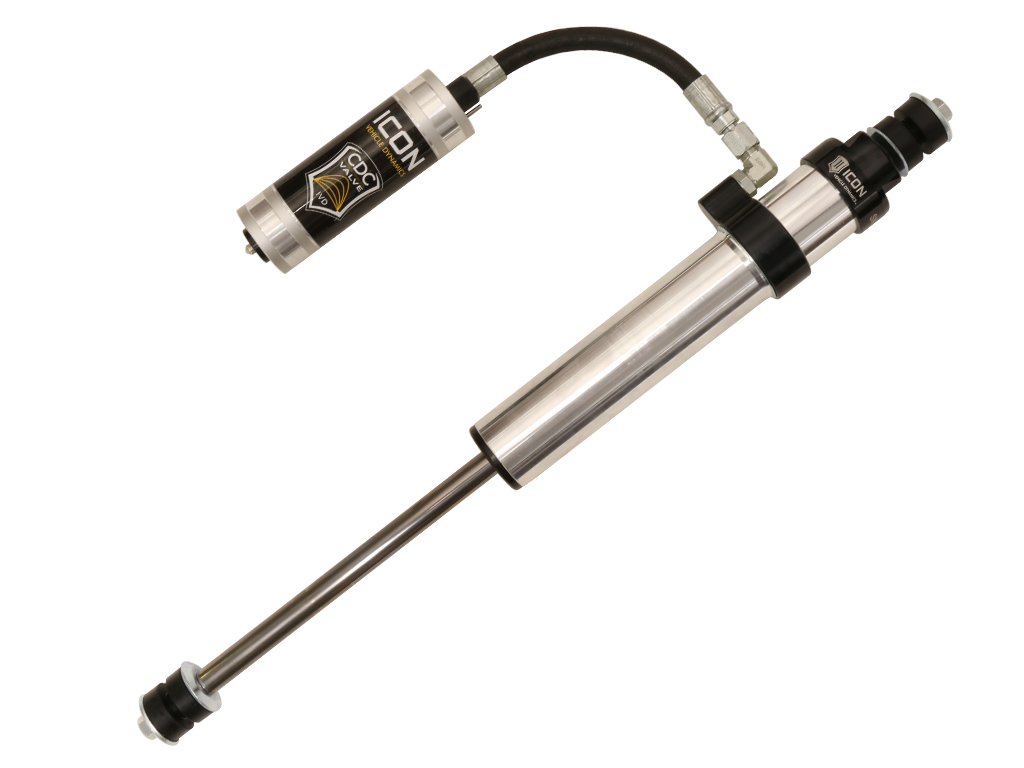

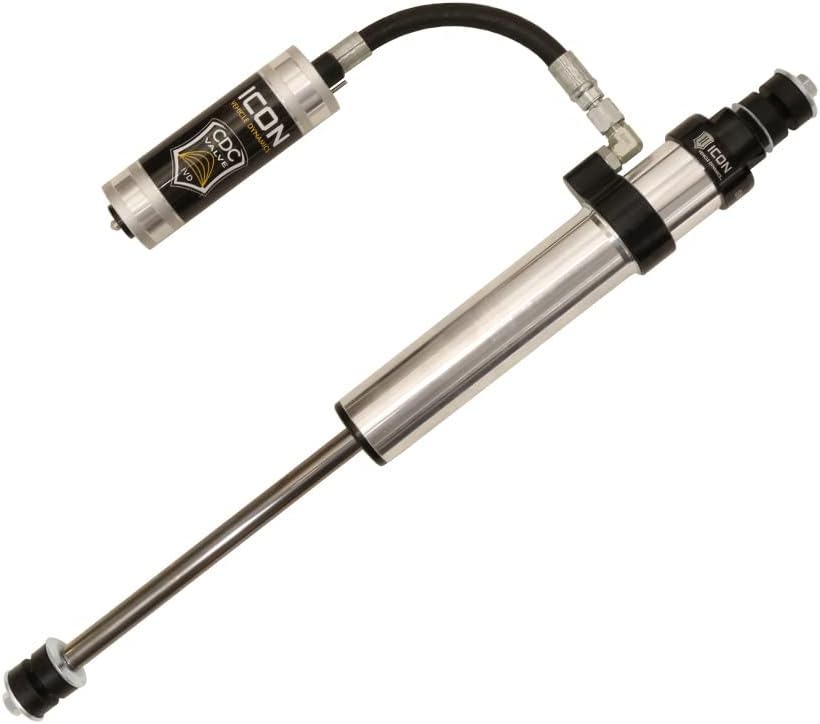

ICON Vehicle Dynamics 57801CP 2.5 VS Front Coilover Shocks 91-97 Land Cruiser 80 0-3" Lift

(2016-2019 Nissan Maxima; 1991-1997 Toyota Land Cruiser; 2013-2018 Toyota Avalon)

Manufacturer

Part Number

57801CP
Black Friday Price

$1,297.06

$1,525.95 Save 15%

In Stock (6)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

ICON Vehicle Specific (V.S.) 2.5 Series coilover shocks are precision-engineered for 1991-1997 Toyota Land Cruiser 80 Series with 0-3 inch front lift applications. These application-specific front shocks deliver exceptional off-road performance while maintaining a smooth, comfortable on-road ride quality.

Key Features:

  • Vehicle-specific valving and length optimized for Land Cruiser 80 Series suspension geometry
  • 2.5-inch bore diameter with remote reservoir and CDC (Compression Damping Control) valve
  • 10-position external compression damping adjustment for user-tunable performance
  • 6061 billet aluminum manifold creates internal Bump Zone for 20% additional damping force
  • Bump Zone technology prevents harsh bottom-outs during high-velocity compression
  • 100% rebuildable and revalveable construction for long-term serviceability
  • Remote reservoir design improves heat dissipation and increases fluid capacity

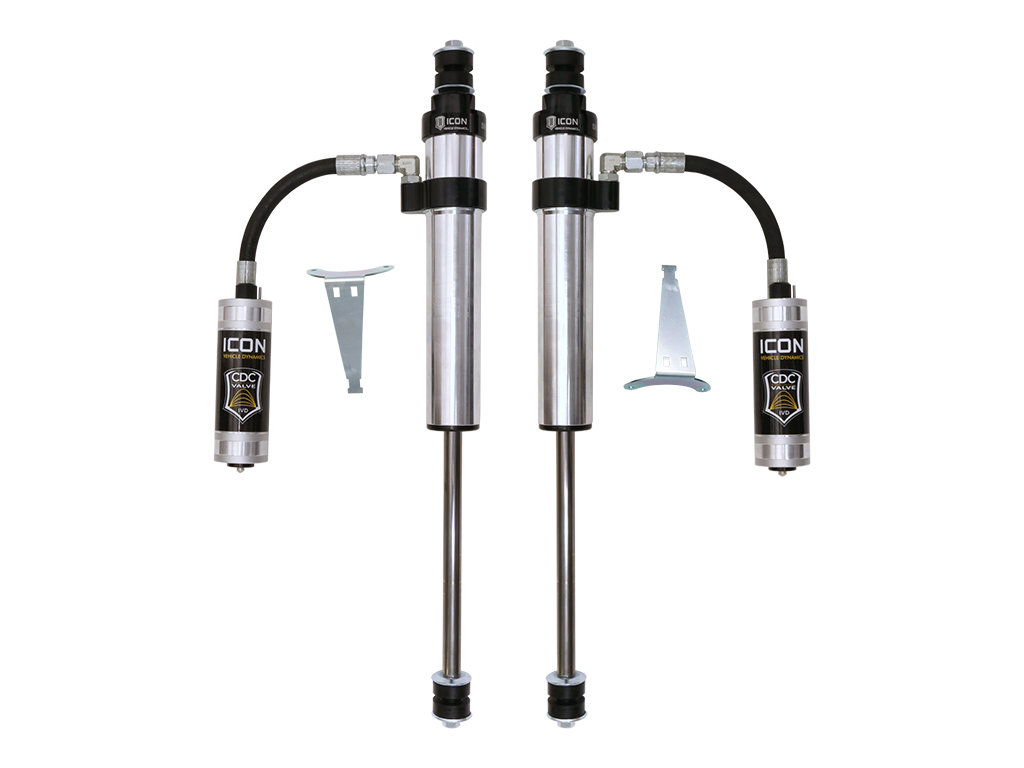

The ICON CDC Valve allows external adjustment of oil flow restriction into the reservoir, providing 10 distinct compression damping levels to match your driving style and terrain. The innovative Bump Zone feature, created by a billet aluminum manifold positioned below the top cap, delivers progressive damping control when you need it most. Sold as a pair for complete front suspension upgrade.

Products specifications

Fits

2016-2019 Nissan Maxima; 1991-1997 Toyota Land Cruiser; 2013-2018 Toyota Avalon

Cylinder Material

Steel

Shaft Material

Chrome

Grade Type

Performance

Cylinder Color

Silver

External Reservoir

Yes

Mounting Hardware Included

Yes

Boot Included

No

Shock Absorber Rod End Measuring Point

Shoulder of Stem

Shaft Diameter

2021-07-08

Tube Outside Diameter

2.5

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Adjustable

Yes

Lower Mount Type

Stem

Upper Mount Type

Stem

Bore Diameter

2.25

Shock Absorber Body End Measuring Point

Shoulder of Stem

Gas Charged

Yes

Damping Type

Oil

Service Parts

252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT

Service Parts

191016 - 7.5" FINNED RESI UPGRADE KIT

Service Parts

252001 - 2.5 FIXED SPANNER WRENCH

Service Parts

252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)

Service Parts

611006 - 9/16 HD STEM BUSHING KIT

Service Parts

257341STEM - 7/8 SHAFT 17.58 OAL, 11.00 TRAVEL

Cylinder Material

Aluminum

Shaft Diameter

0.875

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

Service Parts

254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL

Service Parts

252003 - SEAL INSTALL TOOL 2.5/3.0
