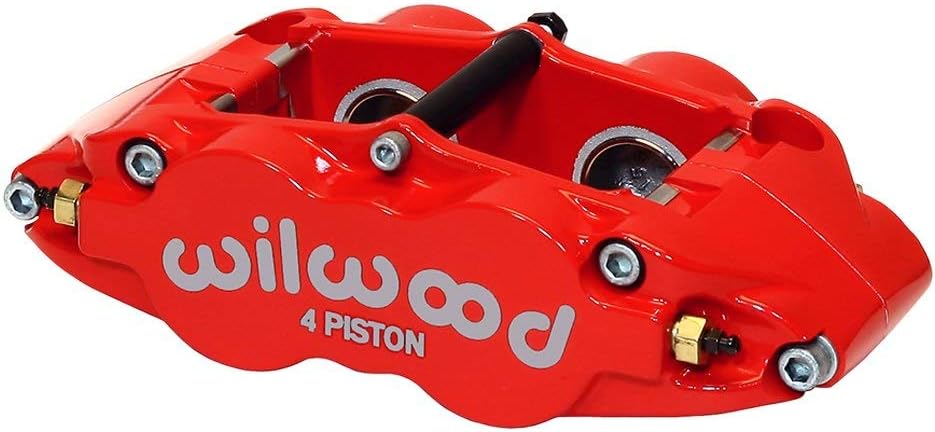

Wilwood 120-14055-RD Forged Narrow Superlite Radial Mount Brake Caliper - 4R Red

Manufacturer

Part Number

120-14055-RD
Black Friday Price

$394.41

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood Forged Narrow Superlite 4R (FNSL4R) radial mount brake caliper delivers professional-grade stopping power in a lightweight, high-strength package. Designed for extreme performance environments, this caliper combines advanced engineering with race-proven reliability for demanding automotive applications.

Advanced Forged Construction:

Each caliper body is stress-flow forged from premium aluminum alloy billets, a process that realigns the metal's internal grain structure to flow within the contour of the caliper body. This eliminates the stresses and grain interruptions that occur with traditional billet machining, creating an exceptionally strong and durable caliper that starts at just 4.9 pounds. The design is optimized through computer-generated solid modeling and FEA stress analysis for maximum strength-to-weight ratio.

Radial Mounting System:

The radial mount design simplifies installation and provides two planes of adjustment for precise alignment over the brake disc, ensuring optimal pad contact and consistent braking performance.

Key Features:

  • One-piece stainless steel pistons with slow heat transfer properties and excellent corrosion resistance
  • SRS (Stainless Rotor Sleeves) bridge plates eliminate bridge wear from pad gouging and extend caliper service life
  • Spring-loaded SRS plates prevent pad rattle and dampen harmonic vibrations that cause pad squeal
  • Two-piece bleed screws on each end with internal fluid crossovers for protection against track debris
  • High-temperature square-faced bore seals provide maximum sealing area and controlled piston retraction
  • Compatible with full range of Wilwood pad compounds for custom brake response tuning
  • Available in multiple piston bore sizes for front or rear caliper applications
  • Optional upgrade to Thermlock pistons for enhanced thermal barrier performance

The FNSL4R caliper is engineered to reduce heat transfer from pads to the caliper body, seals, and brake fluid, resulting in cooler operating temperatures, extended component life, and reduced risk of heat-induced brake fade during aggressive driving.
