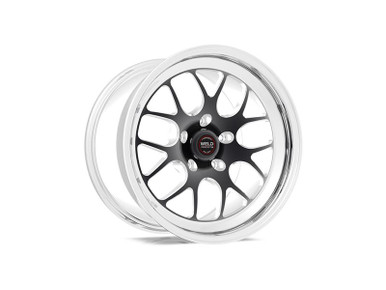

Weld Racing 77HB0090N63A RT-S S77 20x9 Black Forged Aluminum Wheel High Pad

The Weld Racing RT-S S77 brings proven forged racing technology to the street in a versatile 3-piece modular design. Built around a classic tuning fork multi-spoke style, this 20x9 inch wheel features a black anodized forged 6061 aluminum center paired with cold-forged rim shells for an exceptional strength-to-weight ratio.

This is the High Pad configuration (non-beadlock), engineered specifically to clear modern supercar brake packages including factory-installed Brembo fixed opposed-piston calipers and high-performance aftermarket systems from Baer, Wilwood, and similar manufacturers. Whether you're running street, drag strip, road course, or autocross, the S77's three available mounting pad heights ensure brake clearance across a wide range of applications.

Key Specifications:

• Diameter: 20 in.
• Width: 9.0 in.
• Bolt Pattern: 5 x 120mm
• Backspacing: 6.3 in.
• Offset: +31mm
• Center Bore: 3.180 in. (81mm)
• Construction: 3-piece welded modular
• Material: Forged aluminum (6061 center, cold-forged shells)
• Finish: Black anodized center
• Load Rating: 1,580 lbs. per wheel
• Lug Nut Seat: Conical seat, 60-degree
• TPMS Compatible: Yes (valve stem mount)

What's Included:

• Matching center cap
• Chrome steel valve stem

Important Notes:

• Requires aftermarket conical (60-degree) lug nuts — OEM lug nuts will not fit
• Does NOT accept 5/8 in. wheel studs
• Sold individually, not as a set or pair
• Made in Kansas City, MO, USA

Weld Racing's RT-S S77 meets or surpasses SAE J2530 aftermarket wheel standards, delivering the performance heritage of a racing brand in a street-legal, TPMS-compatible package.
