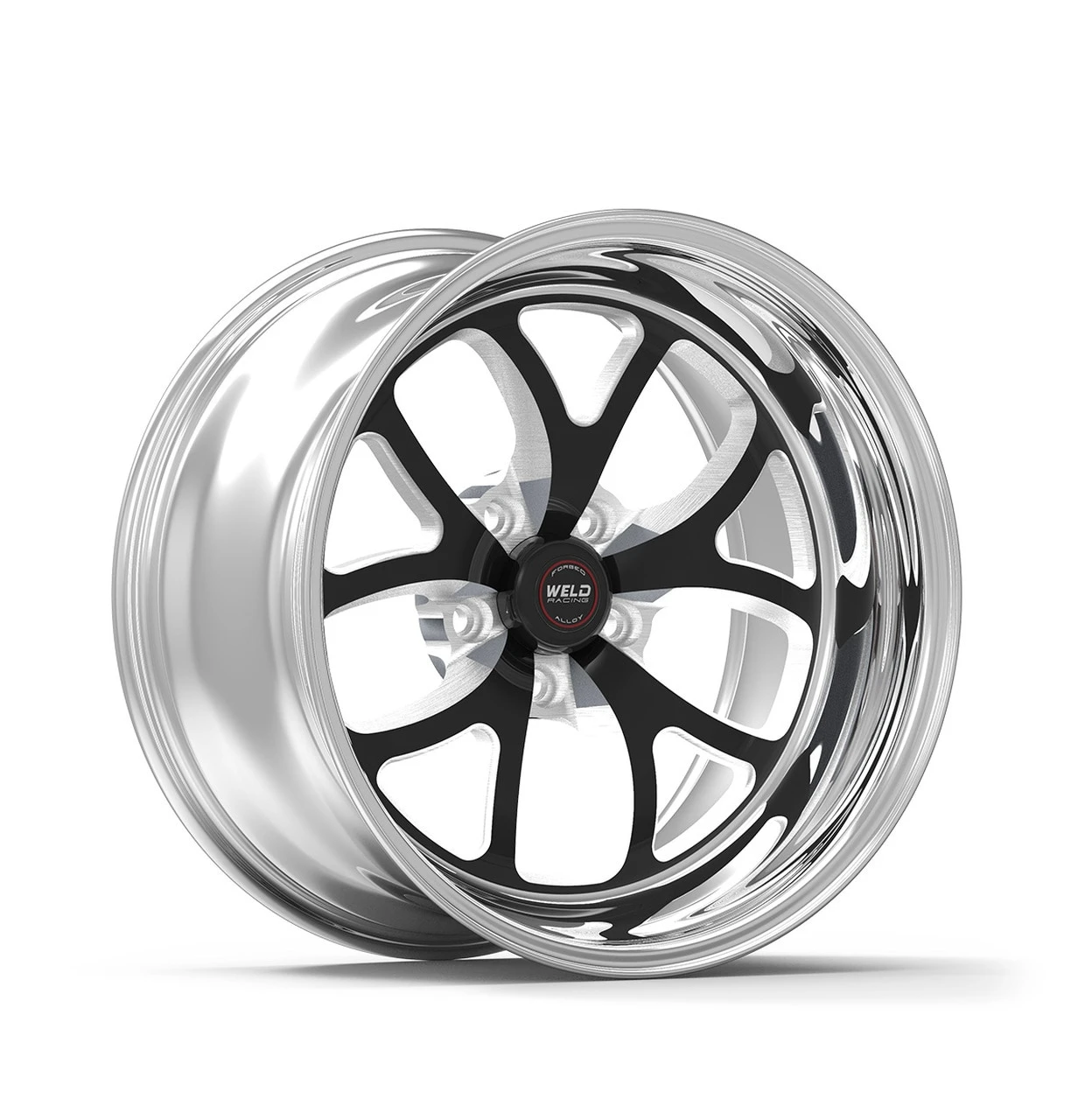

Weld Racing 76HB0100W48A RT-S S76 20x10 Black Forged Drag Wheel High Pad Non-Beadlock

The Weld Racing RT-S S76 is a purpose-built street and strip wheel that brings proven forged racing technology to the road at an accessible price point. Constructed using a three-piece modular design with a forged billet aluminum center and cold-forged rim shells joined via a unique welded assembly process, the S76 delivers an outstanding strength-to-weight ratio suited for high-horsepower applications.

This specific configuration — 20x10 diameter/width, 5x115mm bolt pattern, 4.8-inch backspace — features the High Pad center, engineered to clear modern supercar-grade fixed opposed-piston caliper systems such as factory-installed Brembo systems and high-performance aftermarket brake packages from Baer, Wilwood, and similar manufacturers. The black anodized finish gives the wheel an aggressive, race-ready appearance.

Key Features:

• 3-Piece forged aluminum construction — forged billet center with cold-forged rim shells for superior strength and reduced rotational mass
• High Pad center design — clears modern fixed opposed-piston calipers including factory Brembo systems
• Three available mounting pad heights — accommodates specific drum brakes, mid-range performance calipers, and large multi-piston racing systems
• 20-inch diameter / 10-inch width with 5x115mm bolt pattern and 4.8-inch backspace
• Non-Beadlock configuration for street and strip use
• Black anodized finish on center with classic Weld Racing 5-spoke star styling
• Conical seat (60°) lug nut style — lug nuts sold separately
• Does NOT accept 5/8-inch wheel studs
• Center cap and valve stem included
• Manufactured in Kansas City, MO, USA

The RT-S S76 meets SAE J2530 Aftermarket Wheel Street Standards and is a popular choice for modern Mopar Widebody platforms including the Charger Hellcat Widebody, Challenger Hellcat Widebody, Challenger Redeye, Challenger SCAT Pack Widebody, Challenger Demon, and related applications running the 5x115mm bolt pattern.
