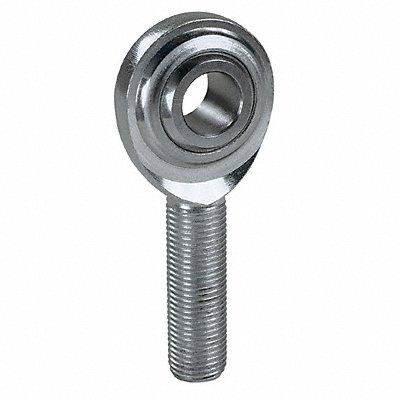

QA1 MGML12T MG Series 2-Piece Stainless Male Rod End 12mm Bore M12x1.75 LH PTFE Lined

The QA1 MGML12T is a metric MG Series two-piece male rod end featuring a 12mm bore and M12x1.75 6G left-hand thread. Built from corrosion-resistant stainless steel throughout, this rod end is engineered for demanding applications where maintenance access is limited or lubrication is not practical.

Key Features:

• Ball: 440C stainless steel, heat treated and precision ground for long-lasting wear resistance
• Body: 300 series stainless steel construction for excellent corrosion resistance
• Liner: Self-lubricating PTFE race lining — maintenance-free operation
• Construction: Traditional two-piece design built to SAE Specification J1120
• Thread: M12 x 1.75 left-hand (LH) metric male thread
• Bore I.D.: 12mm / 12.065mm
• Maximum Angular Misalignment: 27 degrees
• Static Radial Load: 17,373 N
• Sold individually

The MGML12T is ideal for use in corrosive environments across automotive, racing, agricultural, and industrial applications. The PTFE-lined spherical ball provides smooth, low-friction articulation without the need for periodic greasing, making it well-suited for suspension linkages, tie rods, and control arms where long service life is essential. Studded configurations are also available in the MG Series for applications requiring higher misalignment.
