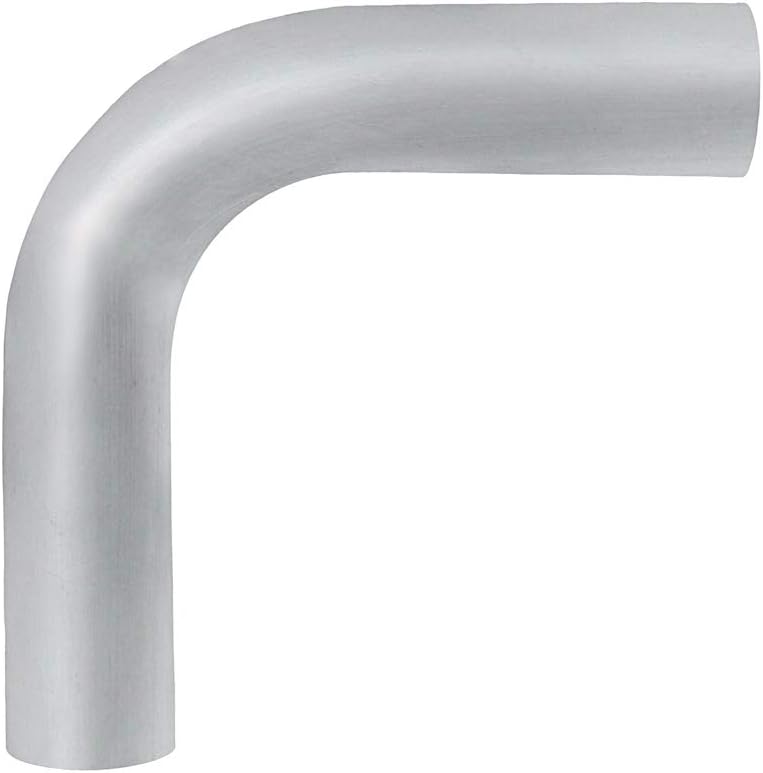

HPS Performance Products AT90-187-CLR-225 90 Degree Aluminum Elbow 1-7/8" OD 2-1/4" CLR

Manufacturer

Part Number

AT90-187-CLR-225
Black Friday Price

$43.25

3 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The HPS Performance Products AT90-187-CLR-225 is a precision-engineered 90-degree aluminum elbow tube designed for custom fabrication projects across automotive, marine, aerospace, and industrial applications. Constructed from premium 6061-T6 aluminum, this tight-radius elbow provides excellent strength-to-weight ratio and superior corrosion resistance for demanding environments.

Key Specifications:

  • Outside Diameter: 1-7/8 inch (48mm)
  • Center Line Radius: 2-1/4 inch tight radius bend
  • Wall Thickness: 16 Gauge (1.65mm)
  • Leg Length: 6 inches on each side
  • Material: 6061-T6 aluminum alloy
  • Bend Angle: 90 degrees

Applications:

  • Custom DIY air intake systems
  • Turbo and intercooler piping installations
  • Engine cooling system fabrication
  • Exhaust system modifications
  • Custom fluid transfer systems

The tight radius design allows for compact installations where space is limited, while the 16-gauge wall thickness provides durability without excessive weight. The 6061-T6 aluminum construction offers excellent weldability and can be easily polished or anodized for a custom finish.

Products specifications

Centerline Radius

2.25

Title 2

HPS 1-7/8" OD 90 Degree Bend 6061 Aluminum Elbow, 16 Gauge w/ 2 1/4" CLR

Finish

Mill Finish

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Title

HPS Aluminum Elbow Tubing 90 Degree, 1-7/8" OD, 2-1/4" CLR, 6" Legs AT90-187-CLR-225 Mill Finish
