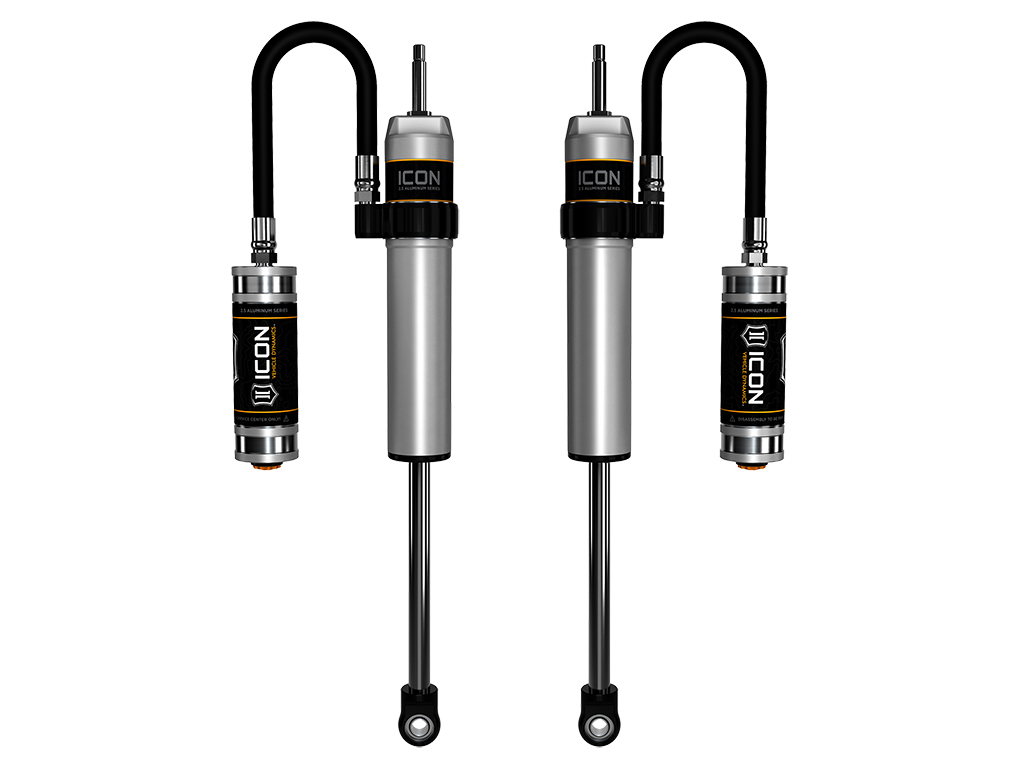

ICON Vehicle Dynamics 217803P 2.5 VS Remote Reservoir Front Shocks 4.5" Lift Ram 2500

(2014-2019 Ram 2500; 2013-2019 Ram 3500; 1974-1989 Porsche 911; 2012-2021 Nissan NV3500; 2012-2021 Nissan NV2500; 2012-2021 Nissan NV1500)

Manufacturer

Picture for manufacturer ICON Vehicle Dynamics

Part Number

217803P
13 reviews
Sale Price

$1,193.50

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics 2.5 VS Aluminum Series Remote Reservoir Shocks deliver exceptional performance for 2014-Up Ram 2500 trucks with 4.5" lift kits. These vehicle-specific front shocks are engineered to provide outstanding off-road capability while maintaining a smooth, comfortable ride on the street.

Key Features:

  • Internal Bump Zone Technology: Increases damping by 20% as the shock approaches full compression, preventing harsh bottom-outs and controlling high-velocity compression
  • Remote Reservoir Design: Improves heat dissipation to reduce shock fade during prolonged or aggressive use
  • Premium 5WT Shock Oil: Ensures consistent suspension damping across a wide temperature range for reliable performance in all conditions
  • One-Piece Digressive Piston: Features vehicle-specific valving tuned specifically for Ram 2500 applications, delivering unsurpassed on-road and off-road performance
  • Heavy-Duty Construction: 7/8" diameter induction-hardened, chrome-plated shock shaft for durability and longevity
  • 6061 Billet Aluminum Manifold: Positioned below the top cap to create the internal Bump Zone for enhanced control
  • 100% Rebuildable and Revalveable: Serviceable design allows for complete rebuilding and custom valve tuning

These shocks are sold as a pair and are configured specifically for Ram 2500 applications in both length and damping characteristics. The remote reservoir configuration provides increased fluid capacity and superior cooling compared to standard monotube designs. Backed by a 1-year manufacturer warranty.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2014-2019 Ram 2500; 2013-2019 Ram 3500; 1974-1989 Porsche 911; 2012-2021 Nissan NV3500; 2012-2021 Nissan NV2500; 2012-2021 Nissan NV1500

Cylinder Material

Steel

Shaft Material

Chrome

Grade Type

Performance

Cylinder Color

Silver

External Reservoir

Yes

Mounting Hardware Included

Yes

Boot Included

No

Attributed Description

ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: No; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 16.35 IN; Fully Open Length: 26.68 IN; Gas Charged: Yes; Lower Mount Type: Eyelet; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Center of Eyelet; Stroke Length Front: 10.3 IN; Tube Outside Diameter: 2.50 IN; Upper Mount Type: Stem; External Reservoir: Yes

Shaft Diameter

2021-07-08

Tube Outside Diameter

2.5

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Lower Mount Type

Eyelet

Adjustable

No

Upper Mount Type

Stem

Bore Diameter

2.25

Shock Absorber Body End Measuring Point

Shoulder of Stem

Gas Charged

Yes

Shock Absorber Rod End Measuring Point

CENTER OF EYELET

Damping Type

Oil

Cylinder Material

Aluminum

Service Parts

254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL

Service Parts

252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)

Service Parts

252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT

Service Parts

191016 - 7.5" FINNED RESI UPGRADE KIT

Shaft Diameter

0.875

Service Parts

611006 - 9/16 HD STEM BUSHING KIT

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

Service Parts

252003 - SEAL INSTALL TOOL 2.5/3.0

Service Parts

252001 - 2.5 FIXED SPANNER WRENCH

Service Parts

257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
