FAST 1000-1617 Xdi Sportsman Small Cap Distributor For Ford Fe

(Ford F-150 1975-76, Mustang 1967-69, F-350 Super Duty 2015, F-250 1960-66, 1968-76, Thunderbird 1958-59, 1961-68, F-350 1960-66, 1968-76 + 52 more models)

Manufacturer

Picture for manufacturer FAST

Part Number

1000-1617
22 reviews
Sale Price

$592.95

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

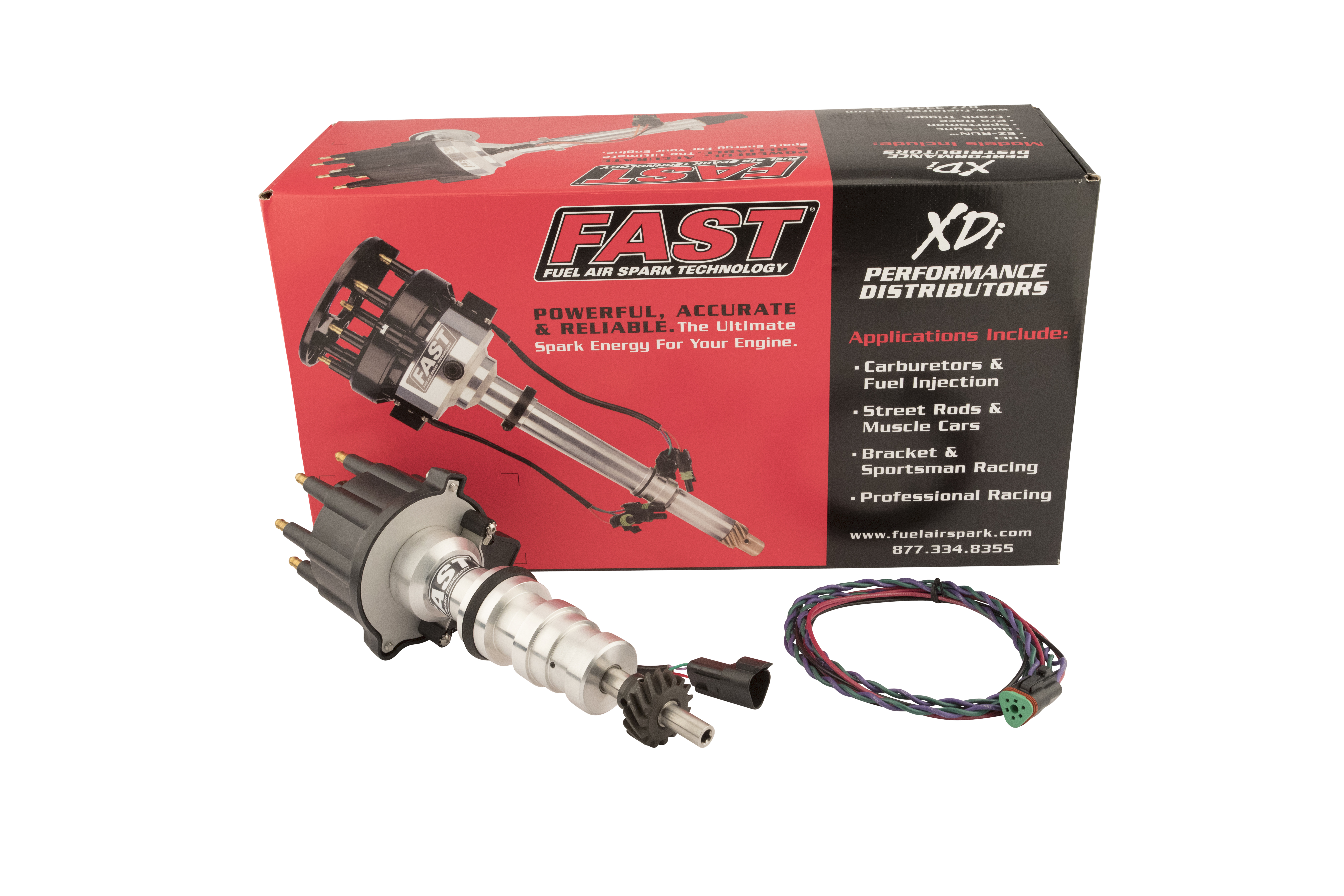

The FAST XDi Sportsman Distributor (1000-1617) is purpose-built for Ford FE race engines, delivering an exceptionally accurate trigger signal across the full RPM range. Featuring a small cap (GM points-size) design with HEI terminals, this distributor is ideal for tight engine bay applications where a compact profile is required.

At the core of the XDi Sportsman's precision is an advanced Hall-effect pickup that converts engine position data into a clean signal compatible with most CD ignition controls. Unlike traditional magnetic pickups, the Hall-effect design eliminates magnetic pickup compensation (retard), keeping ignition timing rock-solid from idle all the way to race RPM.

Key Features:

  • Hall-effect trigger pickup — eliminates magnetic pickup compensation for stable, accurate timing at all RPM levels
  • CNC-machined billet aluminum housing with a polished stainless steel shaft for durability and precision
  • Sealed ball bearing on top and a long bushing on the bottom for superior shaft support and longevity
  • Minimized end play engineered to reduce timing variations and protect the distributor gear
  • Locked-out mechanical advance — no mechanical advance mechanism; timing is fully controlled by the ignition box
  • Small cap (GM points-size) design with HEI terminals — approximately 4-3/16 in. cap diameter
  • Includes a high-quality rotor and distributor cap
  • Available with steel or bronze gear to match camshaft material requirements

Important: This distributor requires a FAST E6 or E7 series ignition control for proper operation. It is not compatible with standard ignition systems and does not include a built-in ignition module.

The FAST XDi Sportsman line offers a high-performance alternative to OEM and points-style distributors, making it an excellent upgrade for circle track, drag race, and other motorsport applications where consistent ignition timing is critical.

Products specifications

Fits

Ford F-150 1975-76, Mustang 1967-69, F-350 Super Duty 2015, F-250 1960-66, 1968-76, Thunderbird 1958-59, 1961-68, F-350 1960-66, 1968-76, Galaxie 500 1962-64, 1968-71, F-100 1960-66, 1968-76, Fairlane 1958-59, 1961-70 + 49 more models

Gear Material

Steel

Housing Material

Billet aluminum

Cap Diameter

4.1875

Shaft Material

Stainless Steel

Shaft Diameter

0.53

Distributor Height

7.375

Cap Color

Black

Trigger Type

Hall-Effect

C.A.R.B. Exempt?

No

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

Mechanical Tach Drive

No

Slip Collar

No

Advance Type

None, Locked-Out

Housing Finish

Natural

Cap Style

Male/HEI

Ignition Box Required

Yes

Distributor Gear Rotation

CounterClockwise

Computer-Controlled Compatible

Yes
