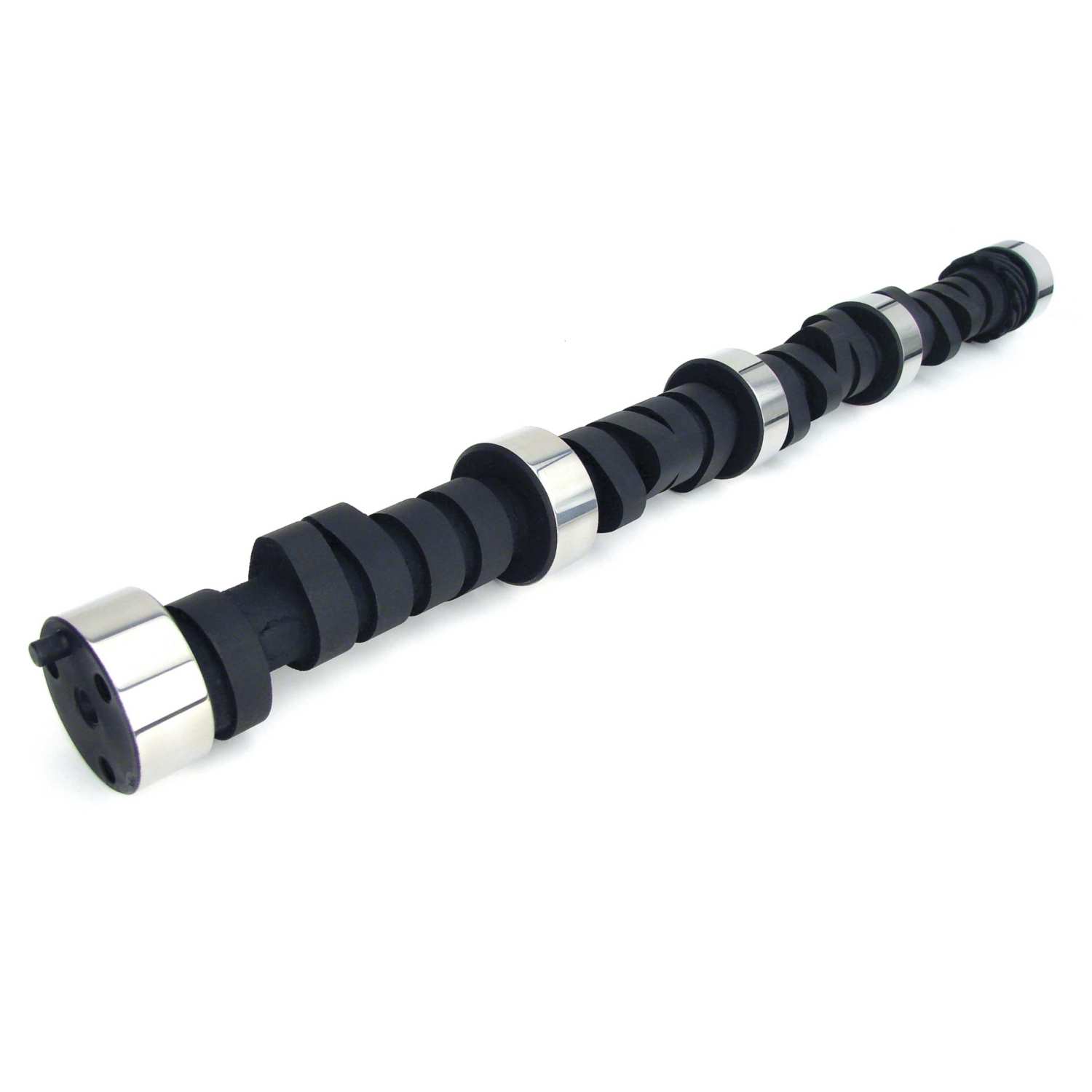

COMP Cams 11-684-5 Xtreme Marine 240/240 Hydraulic Flat Tappet Camshaft Chevy BBC 396-454

(Chevrolet Camaro 1967-72, Corvette 1967-74, Impala 1967-76, Malibu 1967, 1973-75, C1500 1990-93, Chevelle 1967-73, Blazer 1973-74 + 105 more models)

Manufacturer

Part Number

11-684-5
Sale Price

$325.95

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 11-684-5 Xtreme Marine is a hydraulic flat tappet camshaft engineered specifically for marine applications in Chevrolet Big Block 396–454 c.i. engines (1967–1996). Featuring an aggressive lobe design, this cam delivers improved throttle response and top-end horsepower compared to other camshafts with equivalent duration at .050 in. lift, while also increasing engine vacuum — a critical advantage in marine environments. It is well suited as a direct replacement for 575 SCI, 600 SC, and 800 SC marine engines.

Key Specifications:

  • Camshaft Series: Xtreme Marine
  • Cam Type: Hydraulic Flat Tappet
  • Grind Number: CB XM 575SCI
  • Intake Duration @ .050 in. Lift: 240°
  • Exhaust Duration @ .050 in. Lift: 240°
  • Advertised Intake Duration: 283°
  • Advertised Exhaust Duration: 283°
  • Intake Valve Lift: 0.576 in.
  • Exhaust Valve Lift: 0.576 in.
  • Lobe Separation Angle: 115°
  • Basic Operating RPM Range: 2,200–6,200
  • Camshaft Material: Cast Iron
  • Camshaft Gear Attachment: 3-Bolt
  • Computer-Controlled Compatible: No
  • Usage: Marine
  • Valve Springs Required: Yes
  • Sold: Individually (camshaft only)

The Xtreme Marine series spans a full range of marine applications — from recreational pleasure craft to high-performance racing vessels. This camshaft is also available in cam-and-lifter kit (CL11-684-5), small kit (SK11-684-5), and complete K-Kit (K11-684-5) configurations for a comprehensive valvetrain upgrade.

California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, visit P65Warnings.ca.gov.

Products specifications

Fits

Chevrolet Camaro 1967-72, Corvette 1967-74, Impala 1967-76, Malibu 1967, 1973-75, C1500 1990-93, Chevelle 1967-73, Blazer 1973-74, C10 Pickup 1968-74, Caprice 1967-76, C10 1975-80, El Camino 1967-75, Monte Carlo 1970-75 + 100 more models

Cam Type

Hydraulic Flat Tappet

Camshaft Material

Cast Iron

Grind Number

CB XM 575SCI

Cam and Lifter Kit Upgrade

CL11-684-5

K-Kit Upgrade

K11-684-5

SK-Kit Upgrade

SK11-684-5

Camshaft Series

Xtreme Marine

Assembly Lubricant Included

Yes

Lifters Included

No

Valve Springs Required

Yes

Lifter Type

Hydraulic Flat Tappet

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

No

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

Basic Operating RPM Range

2,200-6,200

Camshaft Gear Attachment

3-Bolt

LOBE SEPARATION

115

Exhaust Duration at .050 inch Lift

240

Intake Duration at .050 Inch Lift

240

Usage

Marine

Advertised Exhaust Duration

283

Advertised Intake Duration

283

Engine Family

Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
